Audible Warning Schematics
>>
Fuel Tank Module, Instrument Cluster And Passlock (TM) Cylinder
Fuel Tank Module, Instrument Cluster And Passlock (TM) Cylinder

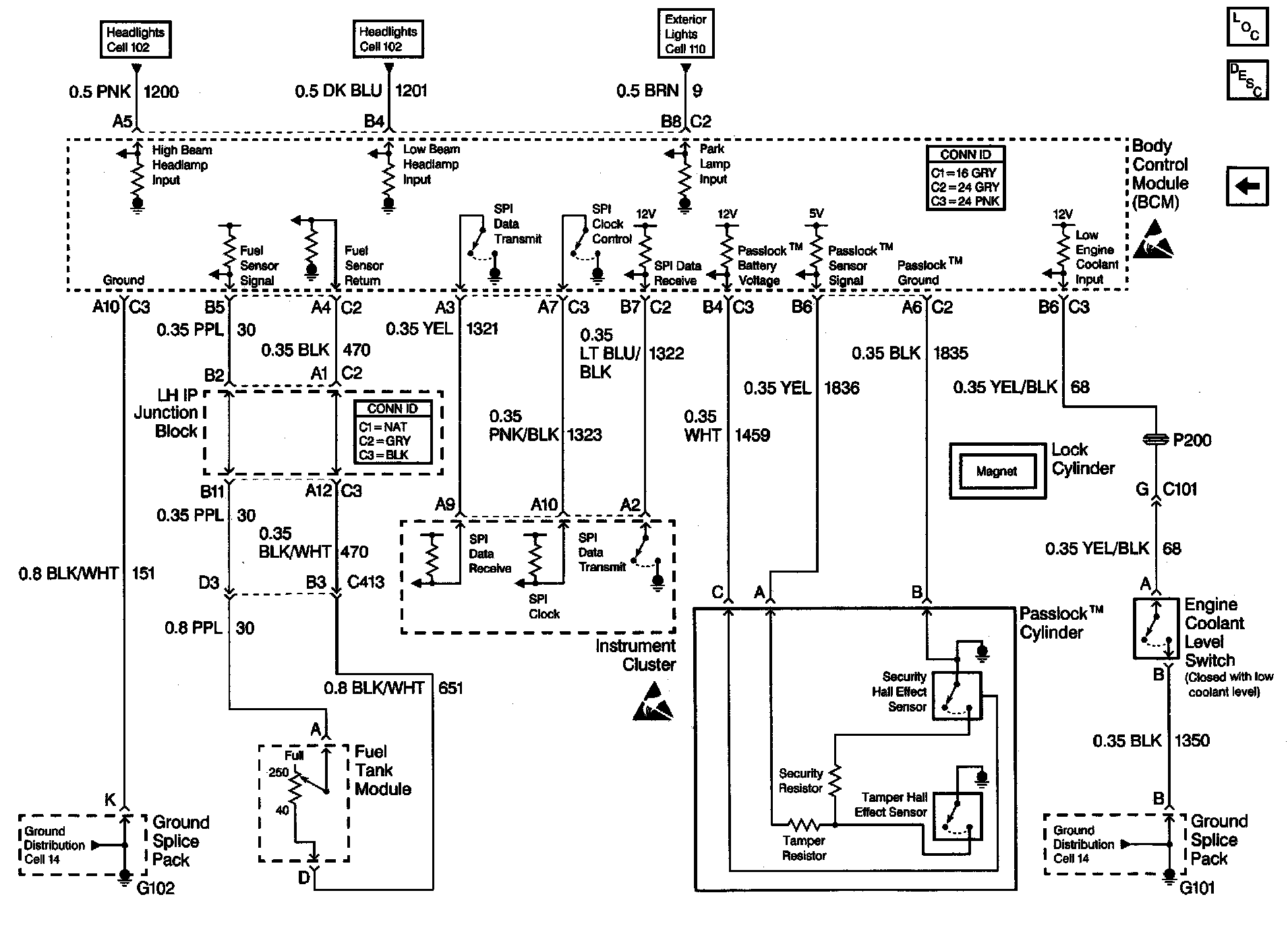

Audible Warnings Schematics: Fuel Tank Module, Instrument Cluster And Passlock (TM) Cylinder:
