Cutlass V6-3.1L VIN J
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
>>
Audible Warning Schematics
>>
SDM, Washer Solvent Lever Sensor, Seat Belt SW & Park BR SW
SDM, Washer Solvent Lever Sensor, Seat Belt SW & Park BR SW

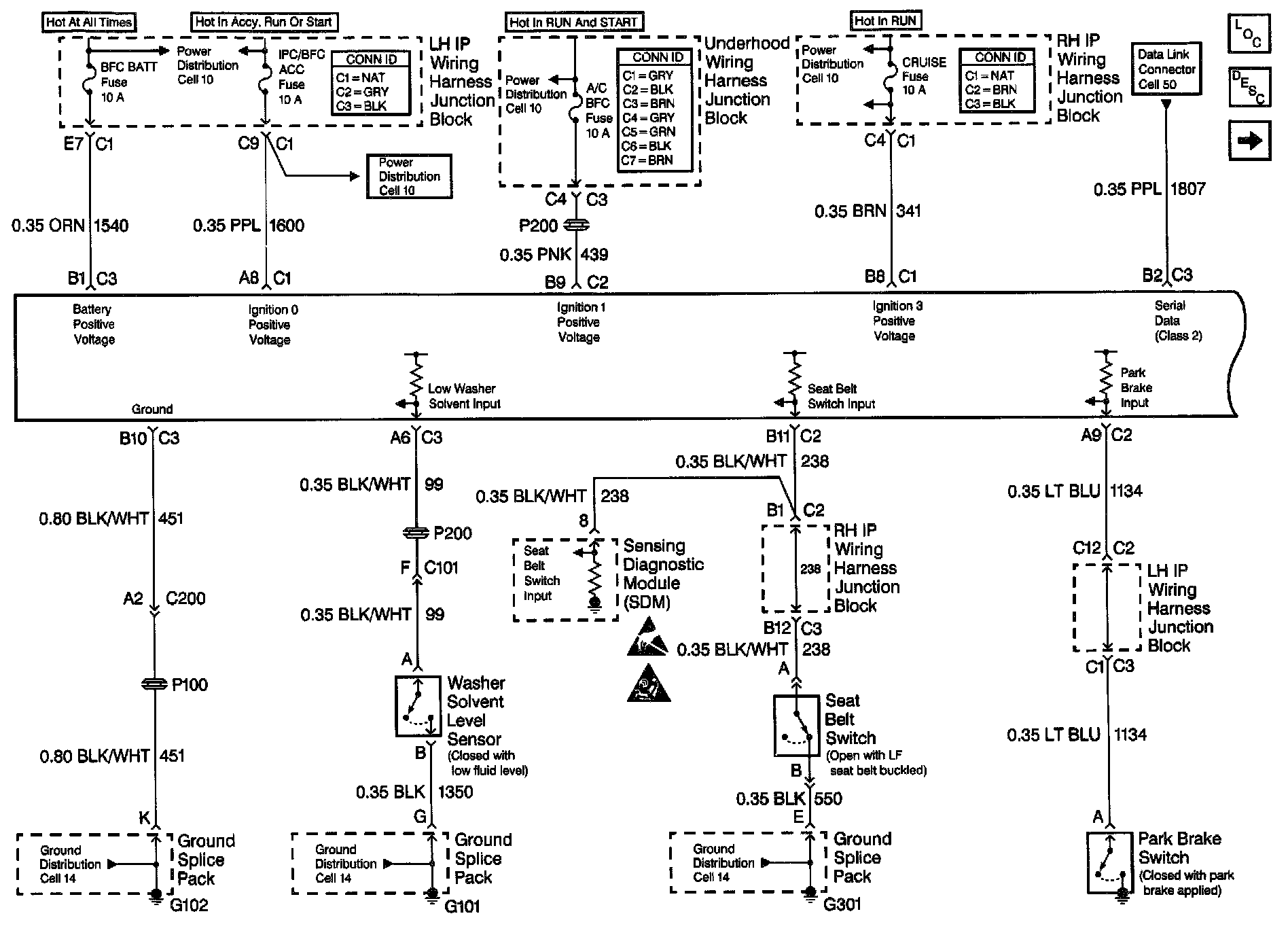

Audible Warnings Schematics: SDM, Washer Solvent Lever Sensor, Seat Belt Switch And Park Brake Switch:
