Locks
>>
System Diagram
>>

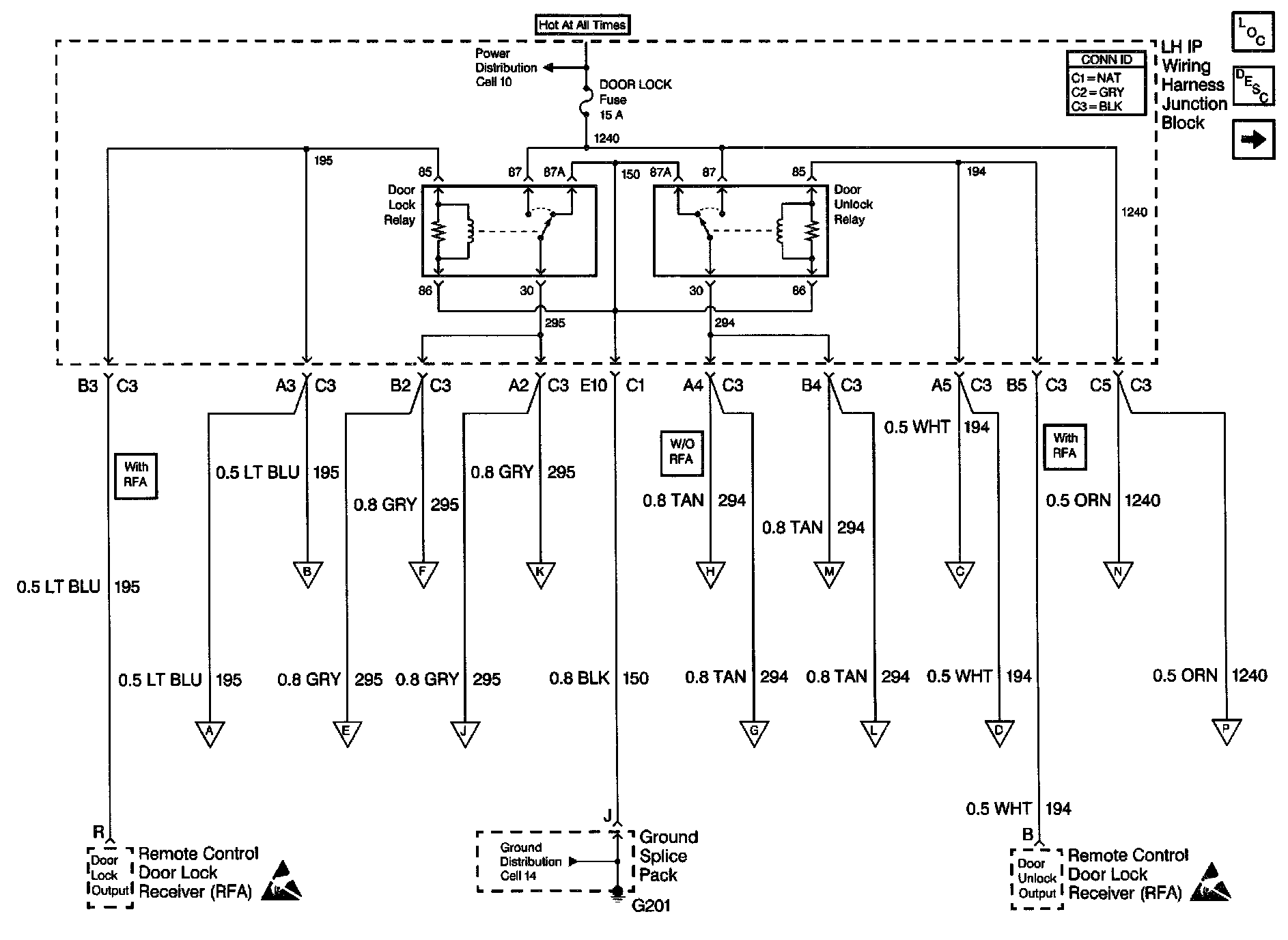

Door Lock Relays And Left IP Wiring Harness Junction Block
Door Lock Relays And Left IP Wiring Harness Junction Block
Door Lock/indicator Schematics: Door Lock Relays And Left IP Wiring Harness Junction Block:
