Home >> Oldsmobile >> 1999 >> Cutlass V6-3.1L VIN J >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio, Stereo, and Compact Disc >> Rear Speakers

Rear Speakers

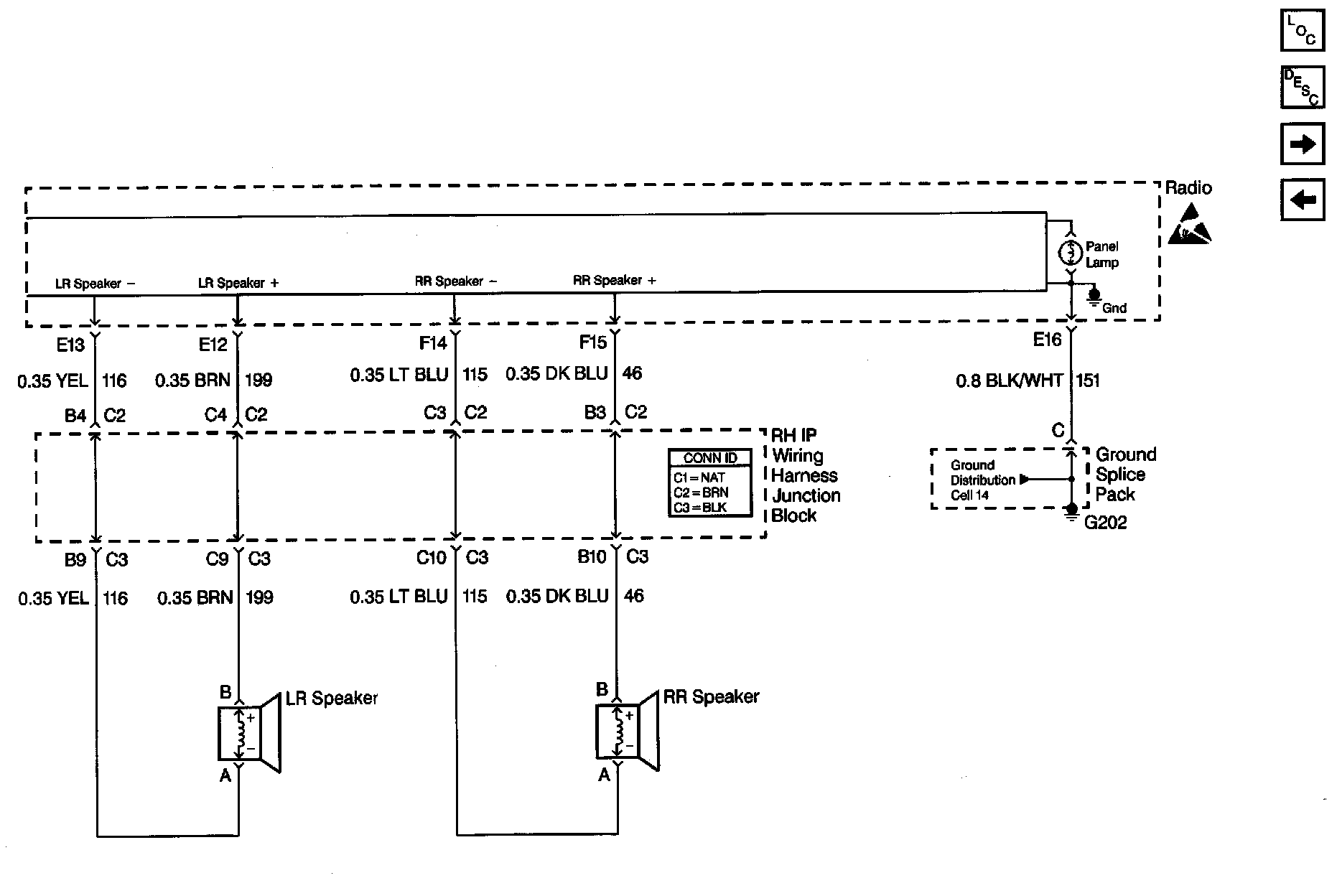

Radio/Audio System Schematics: Rear Speakers:
