Cooling Fan - Revised Ground Circuit Information
File In Section: 06 - Engine/Propulsion SystemBulletin No.: 01-06-04-042
Date: September, 2001
SERVICE MANUAL UPDATE
Subject:
Revised Engine Cooling Fan Ground Circuit Information
Models:
1999 Chevrolet Malibu
1999 Oldsmobile Cutlass
with V6 Engine
This bulletin is being issued to revise the engine cooling fan ground circuit information in the Engine Cooling, Engine Controls and Wiring Systems sub-sections of the following Service Manual. Please replace the current information in the Service Manual with the following information.
The following information has been updated within SI2000. If you are using a paper version of this Service Manual, please make a reference to this bulletin on the affected page.
1999 L/N Service Manual/Book Cover ID
GMP/99-LN-2/Volume 2 of 3
Cooling Fan Schematic (Engine Cooling Fans)
On page 6-406 pins B12 and C12 of connector C1 from Underhood Junction Block, the circuit should be updated to read V6 only.
Engine Controls Schematic (Cooling Fans)
On page 6-982, the schematic should be updated to read the same as the above Cooling Fan Schematic.
1999 L/N Service Manual/Book Cover ID
GMP/99-LN-3/Volume 3 of 3

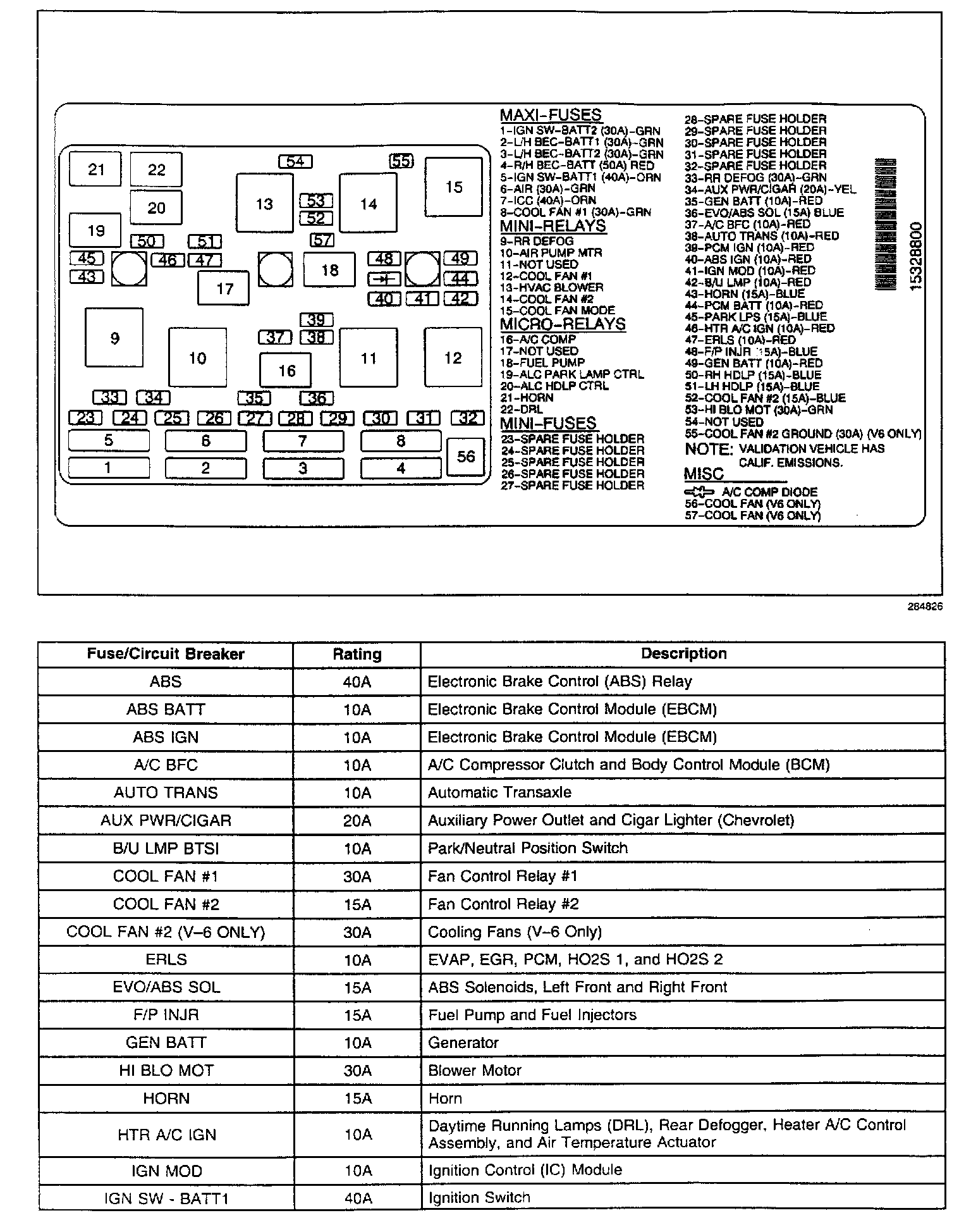

Underhood Junction Block
On page 8-251, the label and table should be updated to read as shown.
Connector View - Underhood Junction
Block C1 (L82 Only)
On page 8-262 the title should be updated to read Underhood Junction Block C1 (V6 Only) and table should be updated to read as shown.
Ground Distribution Schematics (Cell 14: G103 and G105)
On page 8-238, pin C12 of connector C1 from Underhood Junction Block, the circuit should be updated to read V6 only.
