Power, RFA and Memory Seat/Mirror Module (W/ A43)
Power, RFA and Memory Seat/Mirror Module (W/ A43)

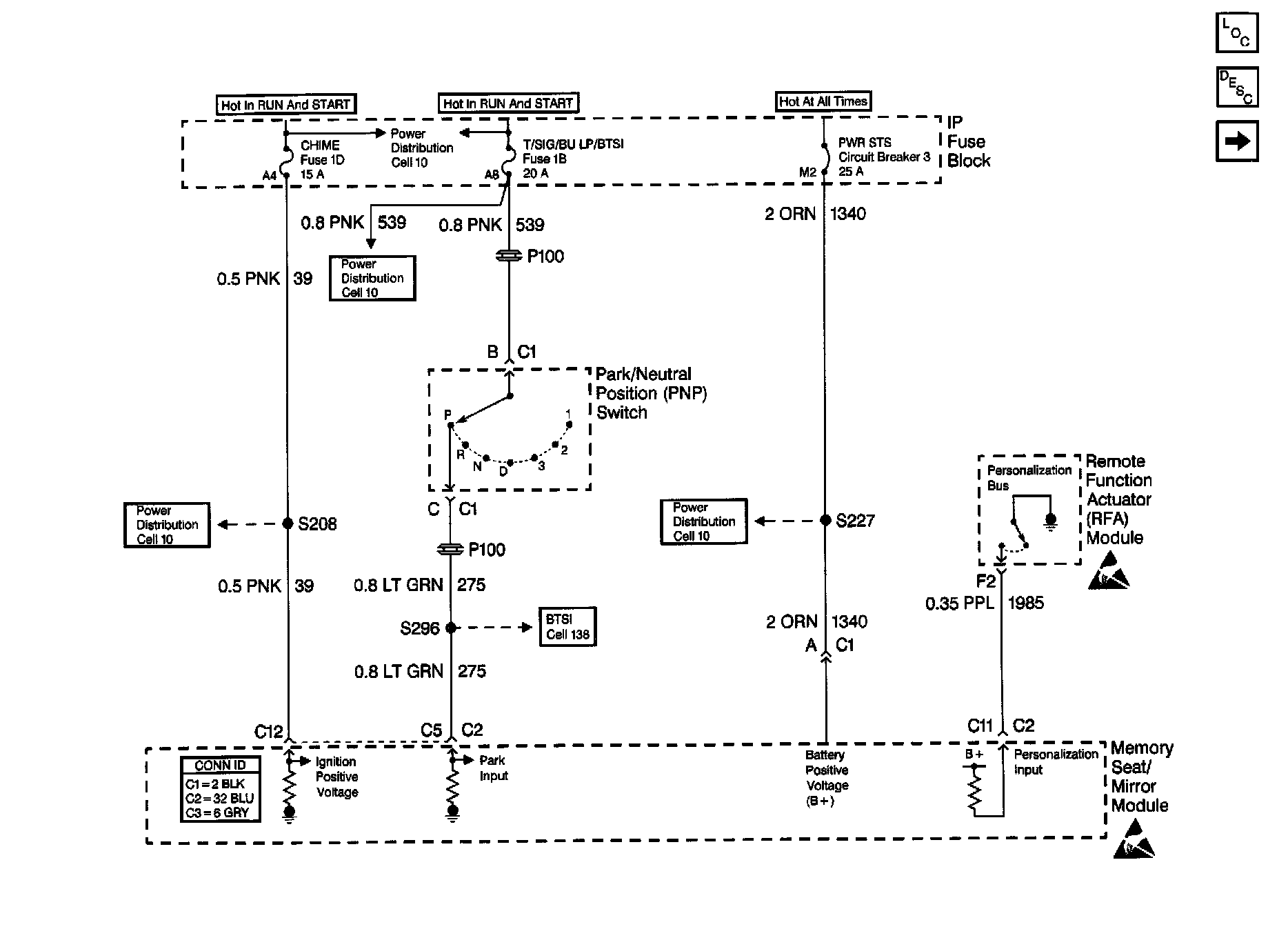

Memory Seats Schematics (Oldsmobile W/ A43): Power, RFA And Memory Seat/Mirror Module:
