A/T Mount Replacement (Trans Mount)

Removal Procedure

^ Tools Required
- J28467-360





1. Remove the engine frame.

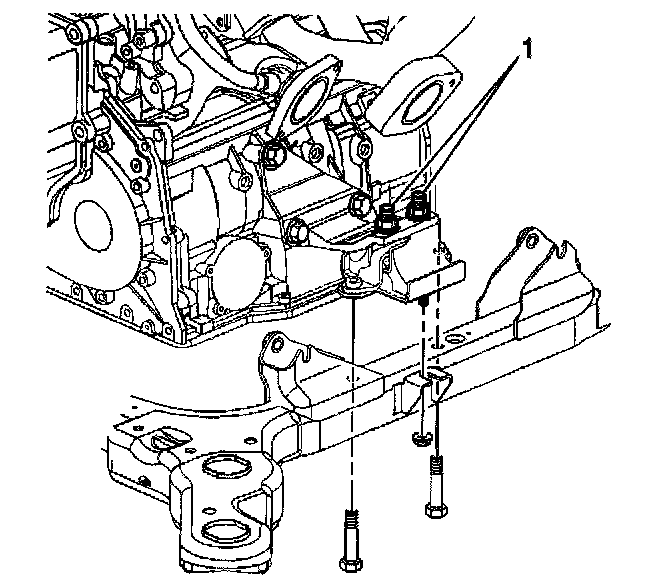

2. Remove the mount (1) from the mount bracket.

Installation Procedure





Notice: Refer to Fastener Notice in Service Precautions.

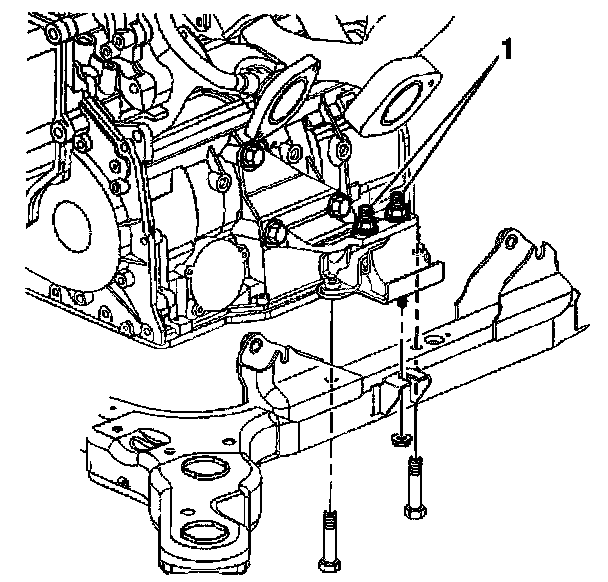

1. Install the right transmission mount (1) into the mount bracket and install the mount nuts.
Tighten the mount nuts to 50 Nm (37 ft. lbs.).
2. Install the engine frame.
