Operation CHARM
: Car repair manuals for everyone.
Home
>>
Oldsmobile
>>
2000
>>
Intrigue V6-214 3.5L VIN H SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Locks
>>
System Diagram
>>
Inputs
Inputs

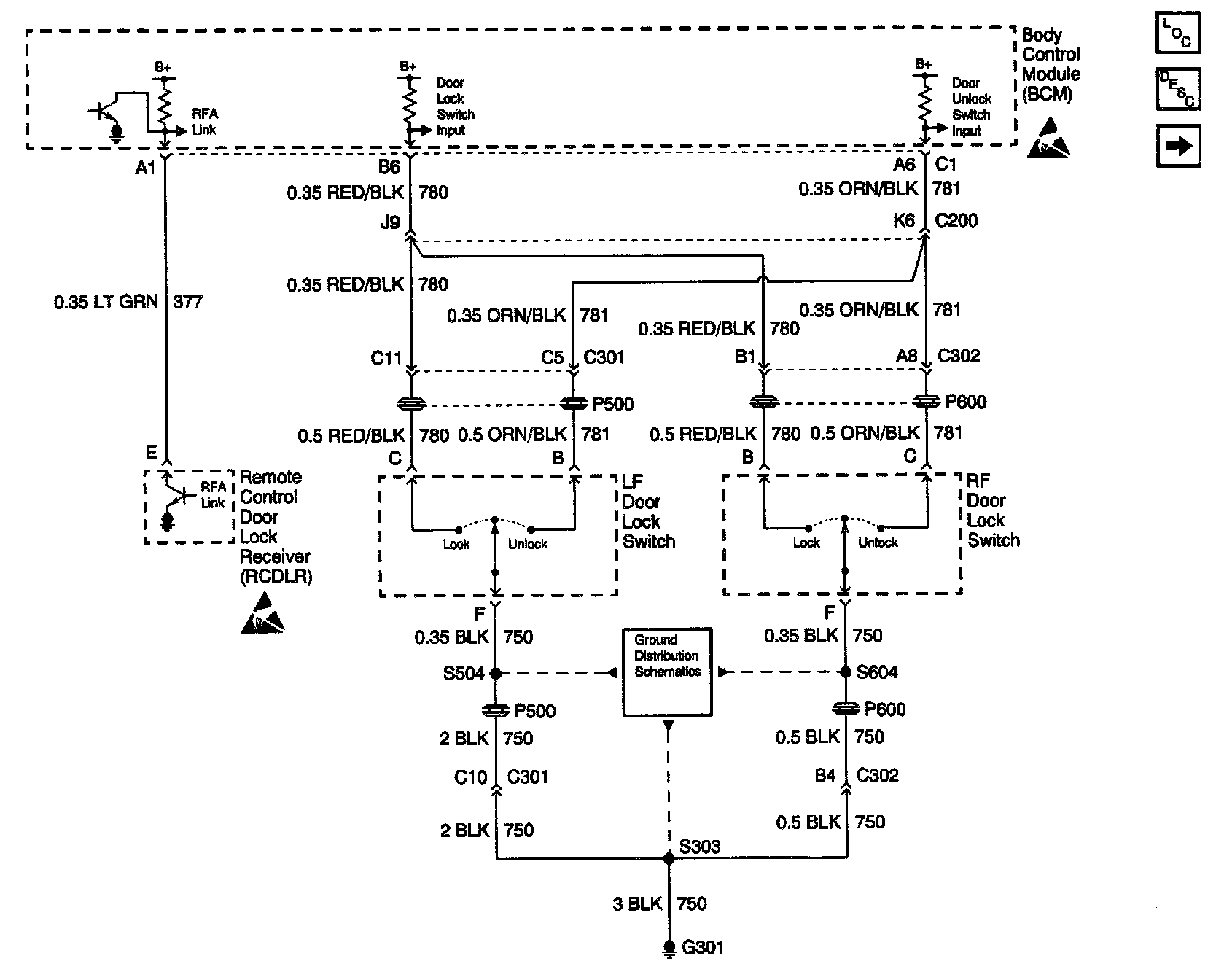

Door Lock/Indicator Schematics: Inputs:
