Jacking

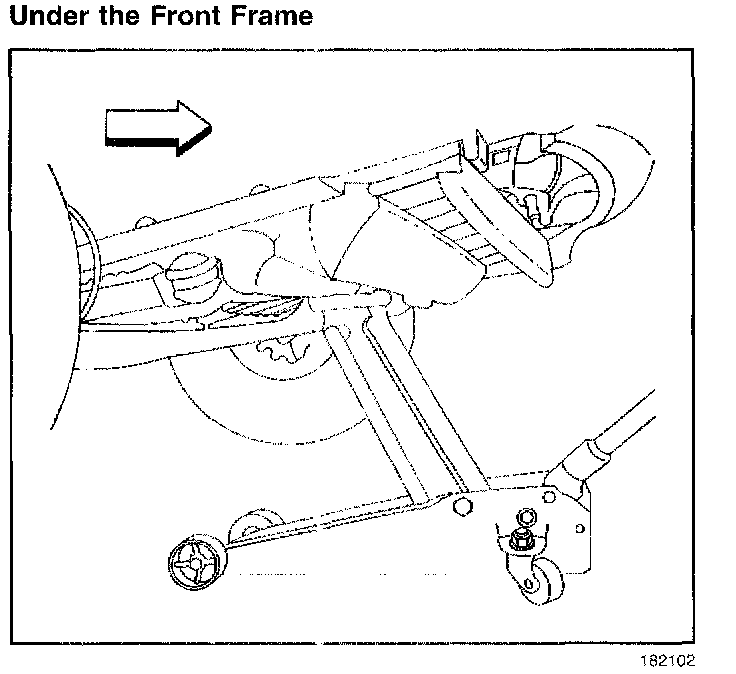

UNDER THE FRONT FRAME

Under The Front Frame:

When lifting the front of the vehicle with a floor jack, place the floor jack lift pad at the center of the front frame.

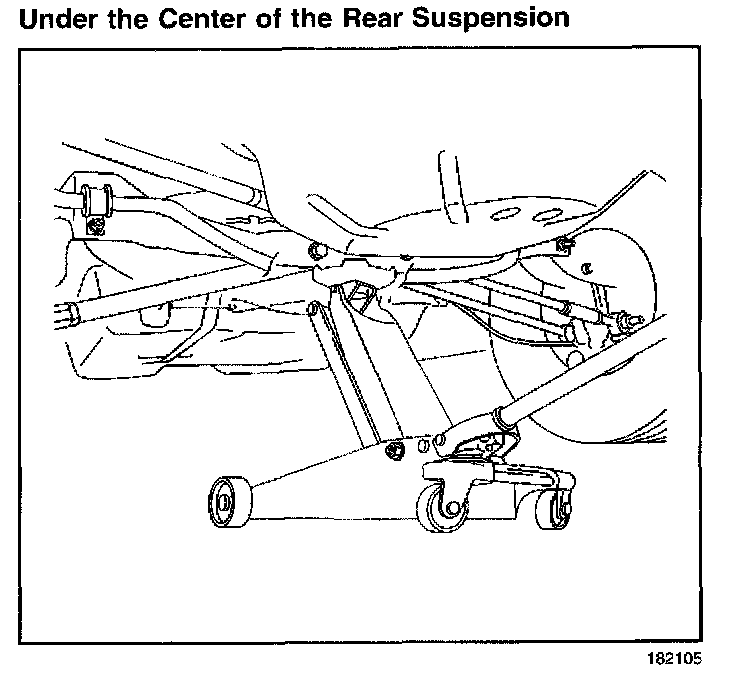

UNDER THE CENTER OF THE REAR SUSPENSION

Under The Center Of The Rear Suspension:

Lift the rear of the vehicle by placing the floor jack lift pad at the center of the rear suspension.

SUPPORTING THE VEHICLE WITH JACKSTANDS
Place jackstands ONLY under strong and stable vehicle structures.
