Transmission Mount Replacement - Front
Transmission Mount Replacement - FrontInstallation Procedure
1. Remove the 2 front transmission mount bolts from the transmission.
2. Raise and support the vehicle.

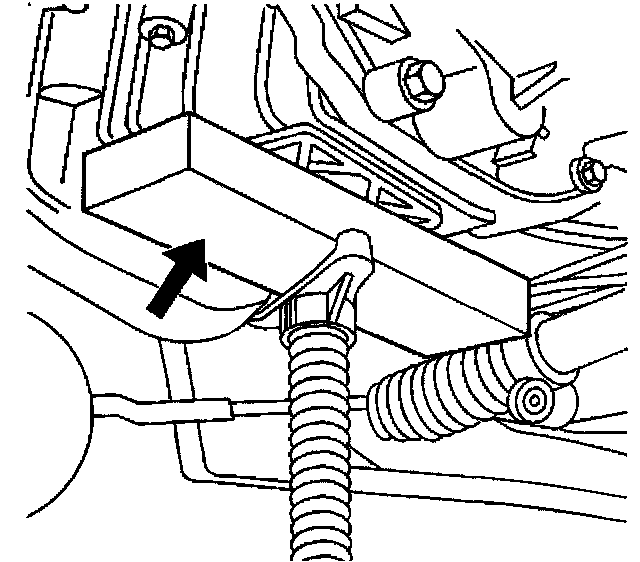

3. Position a jack and wood block under the transmission.

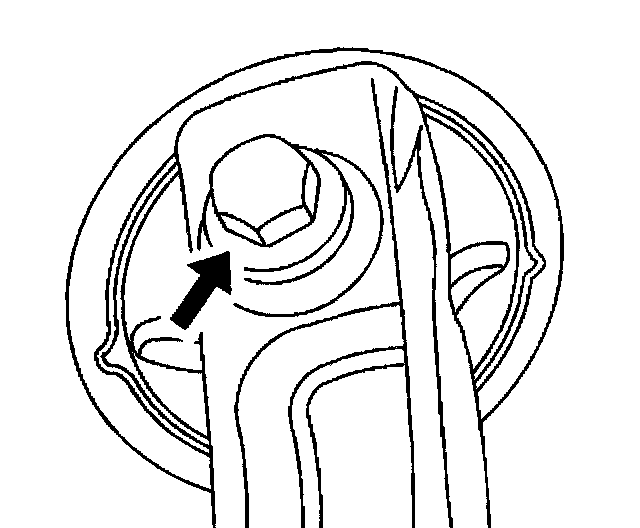

4. Remove the through-bolt.

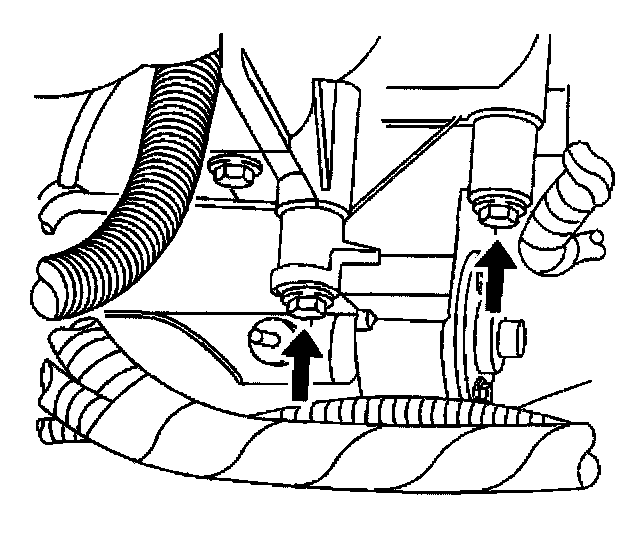

5. Remove the 3 front bracket to cradle bolts.
6. Remove the front bracket.

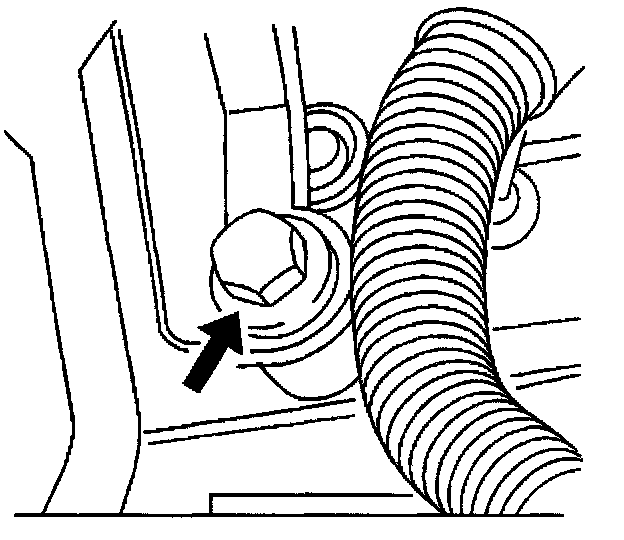

7. Remove the front transmission mount lower bolt.
8. Remove the transmission mount.
Installation Procedure
Notice: Refer to Fastener Notice.
1. Install the front transmission mount. Install the front transmission mount lower bolt.
^ Tighten the transmission mount lower bolt to 110 Nm (81 ft. lbs.).
2. Install the front bracket. Install the 3 bracket to cradle bolts.
^ Tighten the bracket to cradle bolts to 120 Nm (86 ft. lbs.).

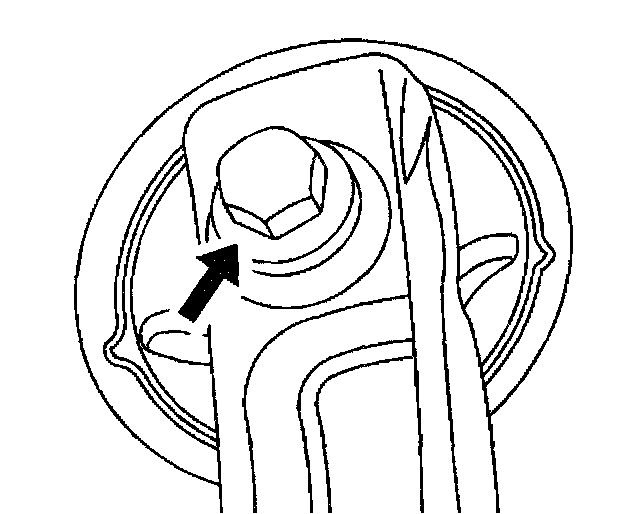

3. Install the through-bolt.
^ Tighten the through-bolt to 130 Nm (96 ft. lbs.).
4. Remove the jack and block of wood from underneath the transmission.
5. Install the 2 front transmission mount bolts to the transmission.
^ Tighten the front transmission mount bolts to 110 Nm (81 ft. lbs.).
6. Lower the vehicle.
