Peugeot
>>
1983
>>
604 L4-2304cc 2.3L DSL XD-2
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Windows
>>
Power Window Circuit Breaker
>>
Diagrams
>>
Front
Front

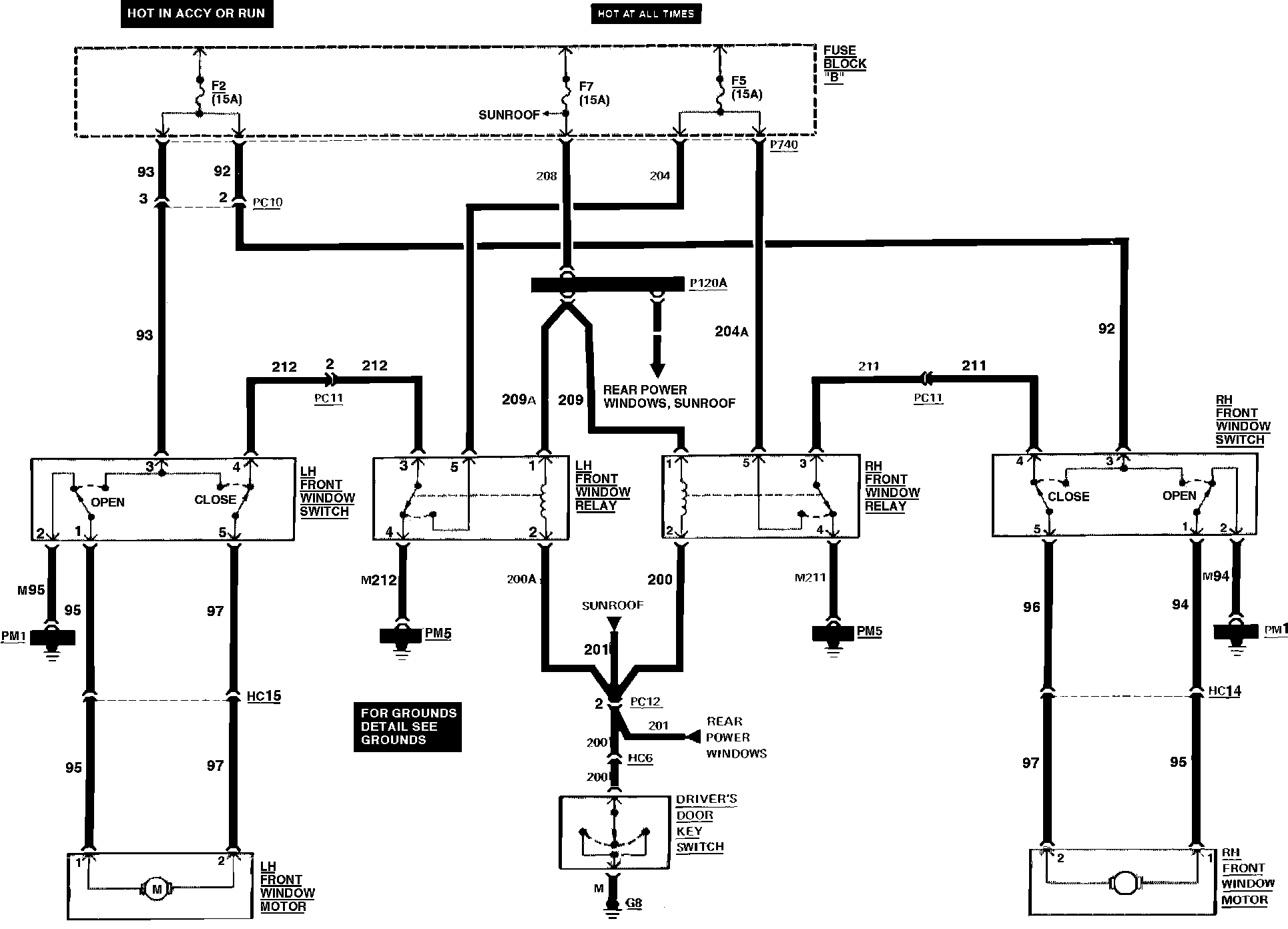

Fig. 64 Power Window Wiring Circuit (Front).:
