Brake Fluid Pressure Sensor/Switch

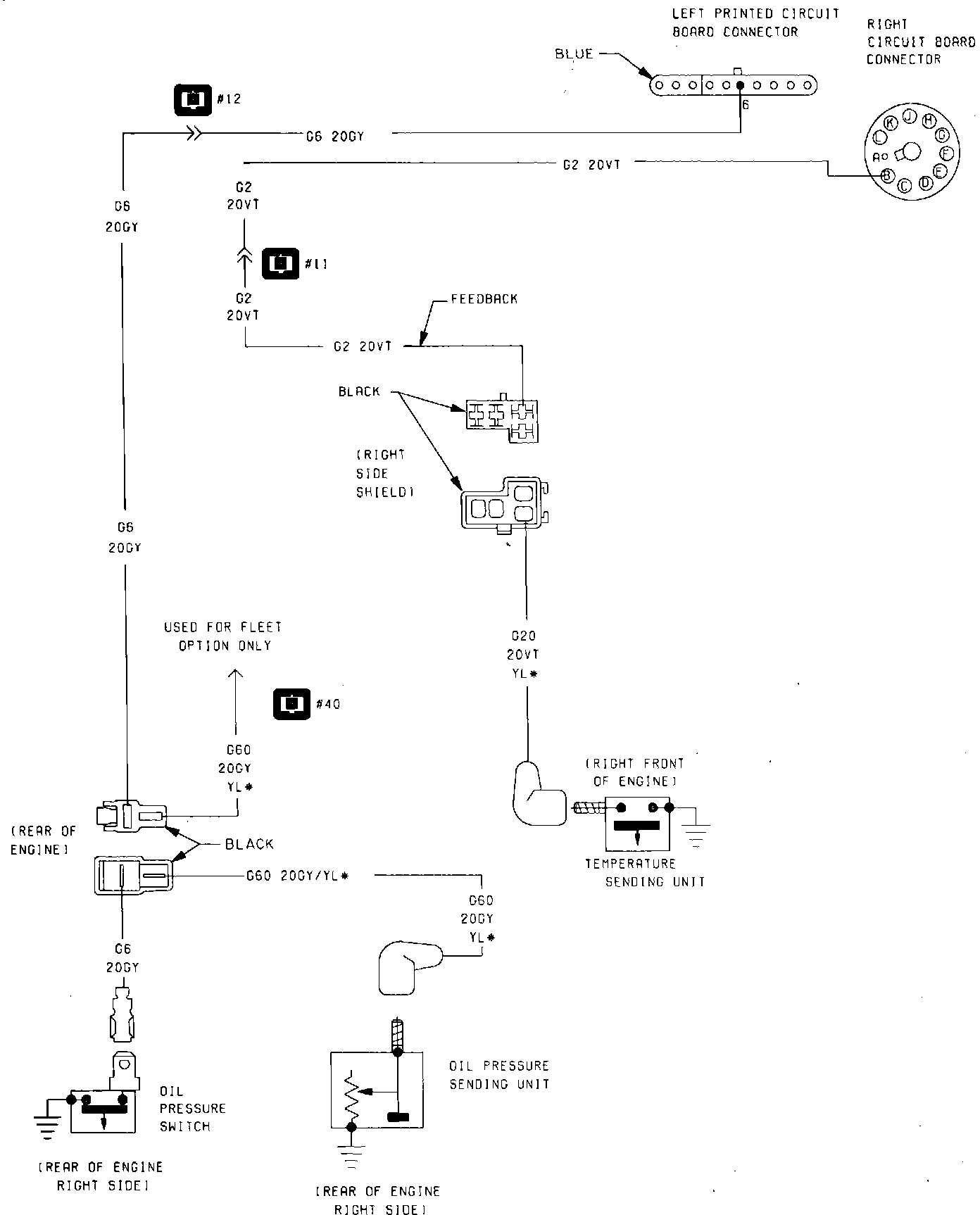

Fig. 14 Brake, Oil & Temperature Switch Wiring Circuit. 1985 W/2.6 Litre Engine:
