Home >> Plymouth >> 1987 >> Sundance L4-135 2.2L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Part 3

Part 3

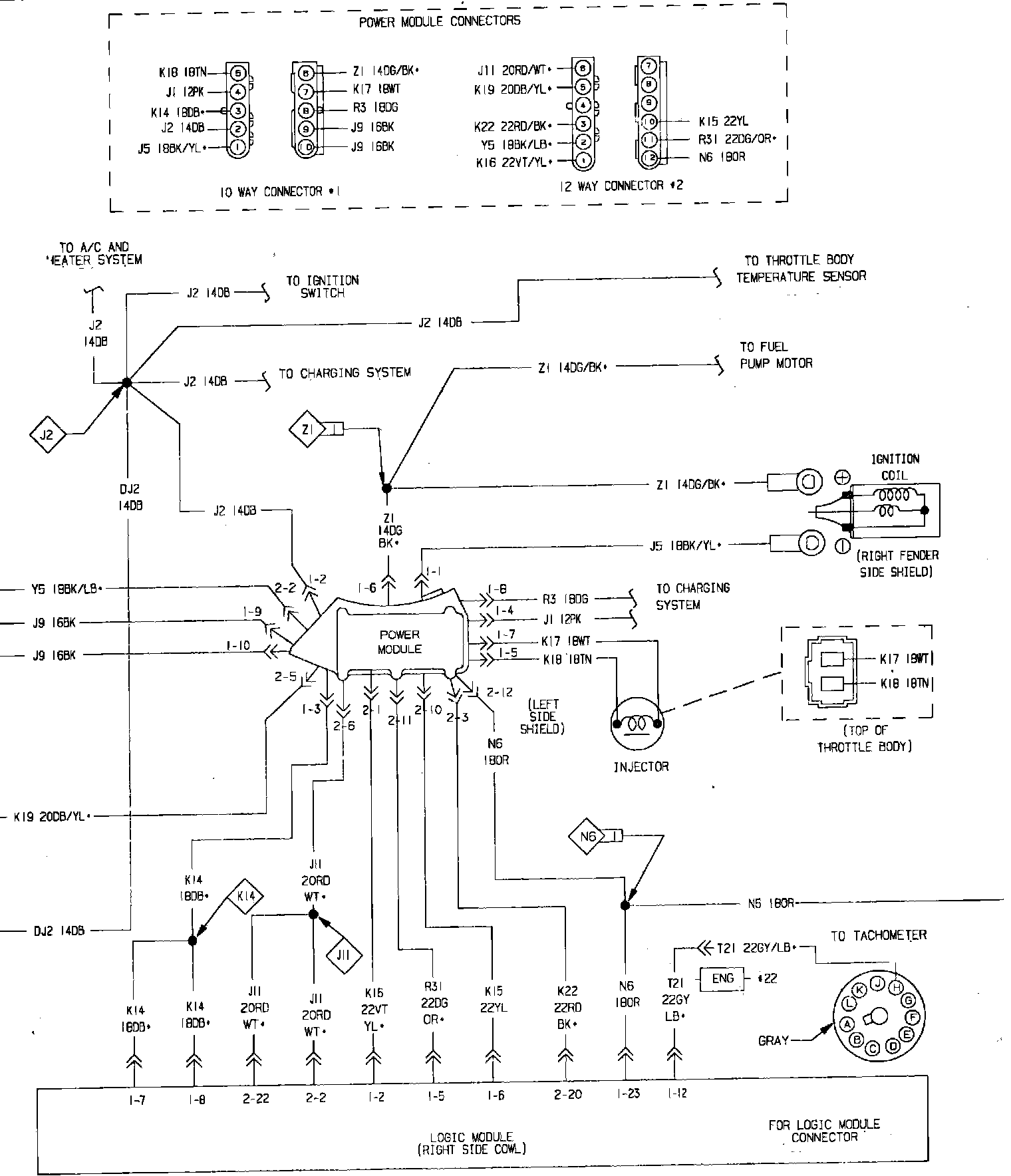

Fig. 17 Electronic Fuel Injection Ignition System Wiring Circuit (Part 3 of 4). Less Turbocharger:
