Front Suspension - Torque Specifications Revisions

89chrysler10

Models

1990 BD Bodies


Subject

Front Suspension Noise When Turning
- Torque Specifications And Mounting Bolt Revisions


Index

FRONT SUSPENSION


Date June 26, 1989


No.

02-02-89

(C02-05-9)

P-2550









BODY CODE LEGEND


BD - LASER


SERVICE MANUAL REVISION


The torque specification for some front suspension components have been revised to prevent possible friction type suspension noises when turning. In addition the lower arm mounting clamp to crossmember flange bolt has been changed from a class number 7 to a class 10 bolt.


The new flange bolt can be used on earlier built vehicles. Refer to Figure 1 for new part number and revised torque specifications.


Permanently affix the attached revised pages (2-3, 2-24 & 2-25) in the 1990 Laser Service Manual, Publication Number 81-270-0175.

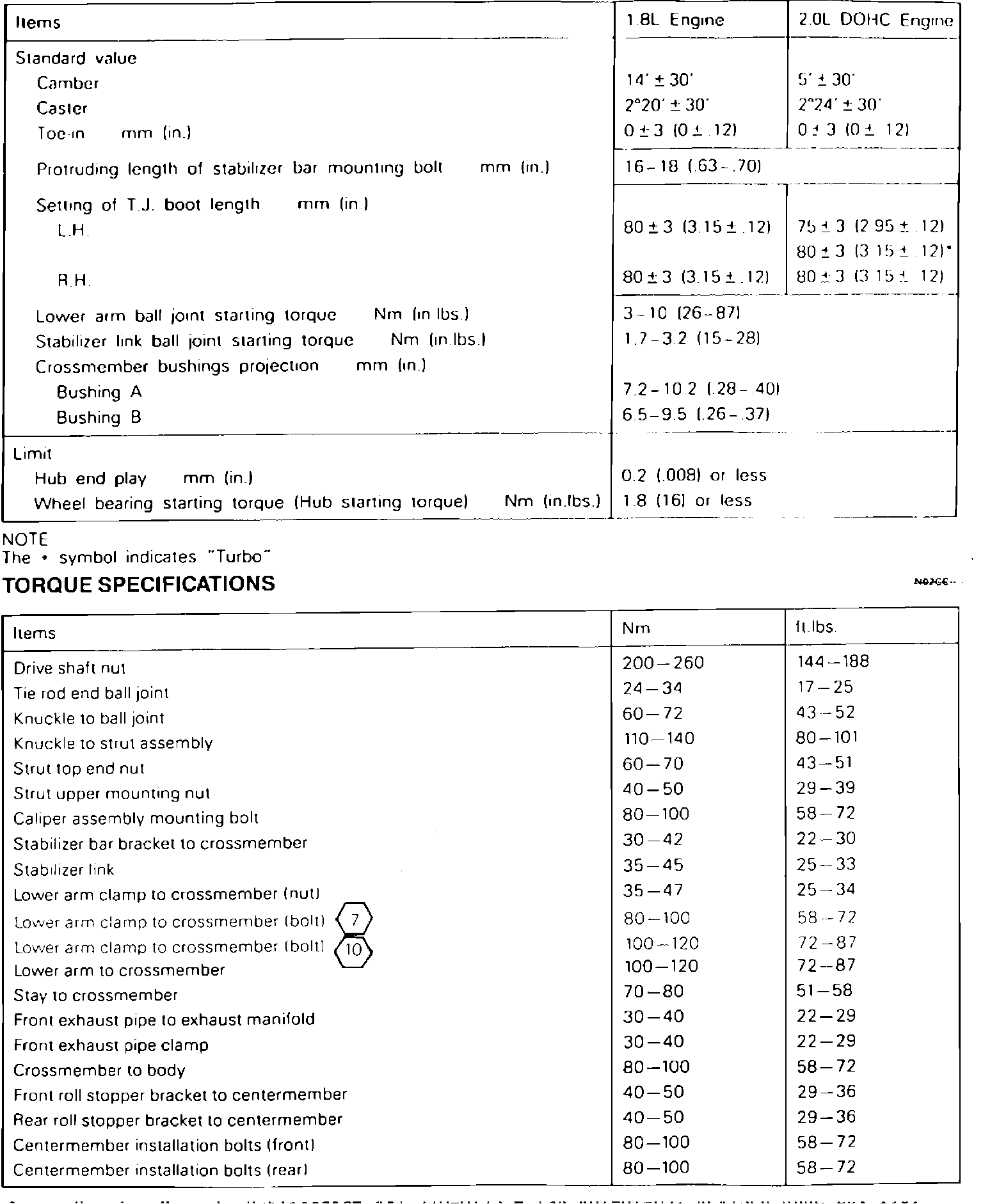

FRONT SUSPENSION - Specifications

SERVICE SPECIFICATIONS



FRONT SUSPENSION - Lower Arm

LOWER ARM

REMOVAL AND INSTALLATION

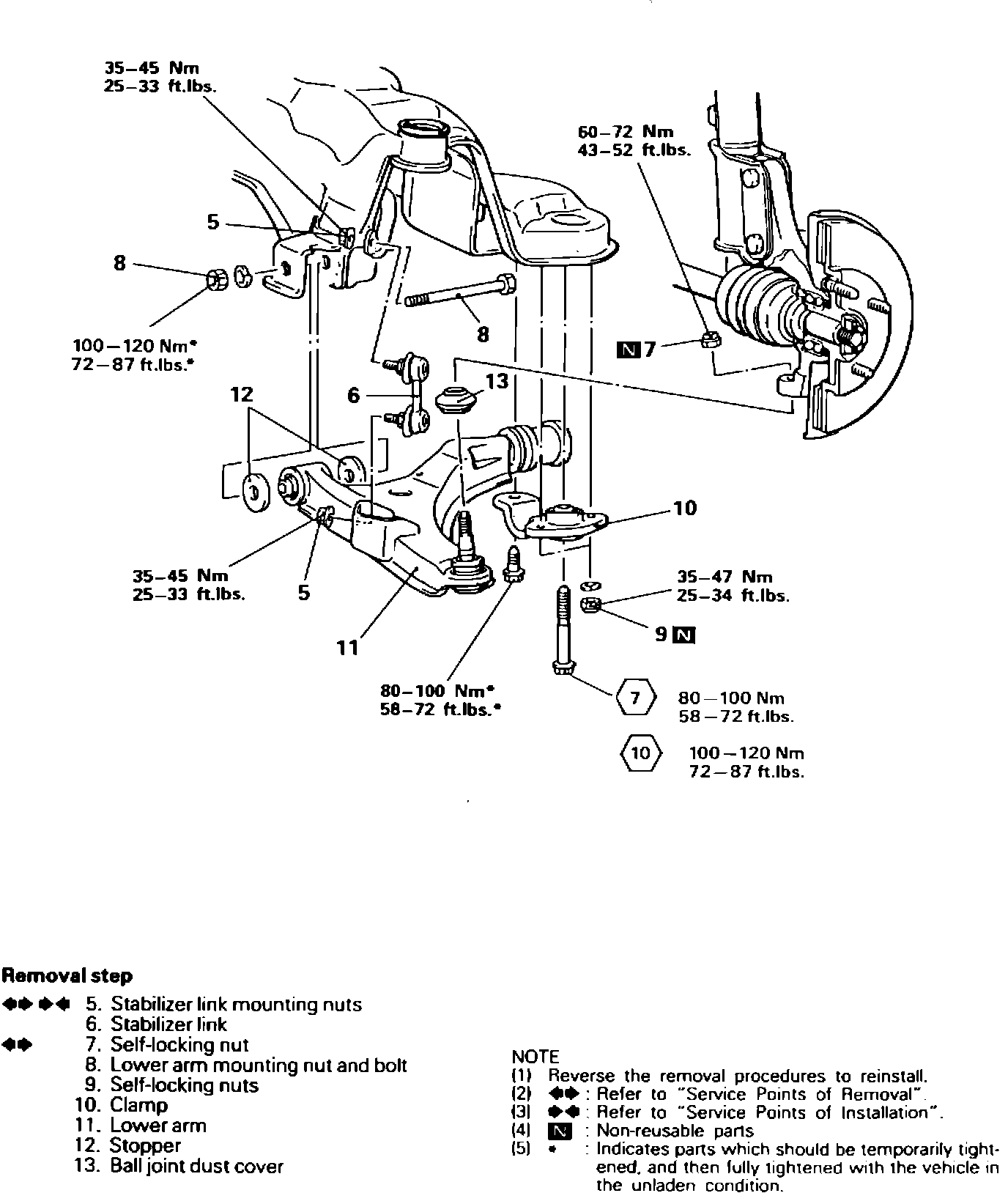

Models equipped with the rubber bushing type of stabilizer



FRONT SUSPENSION - Lower Arm

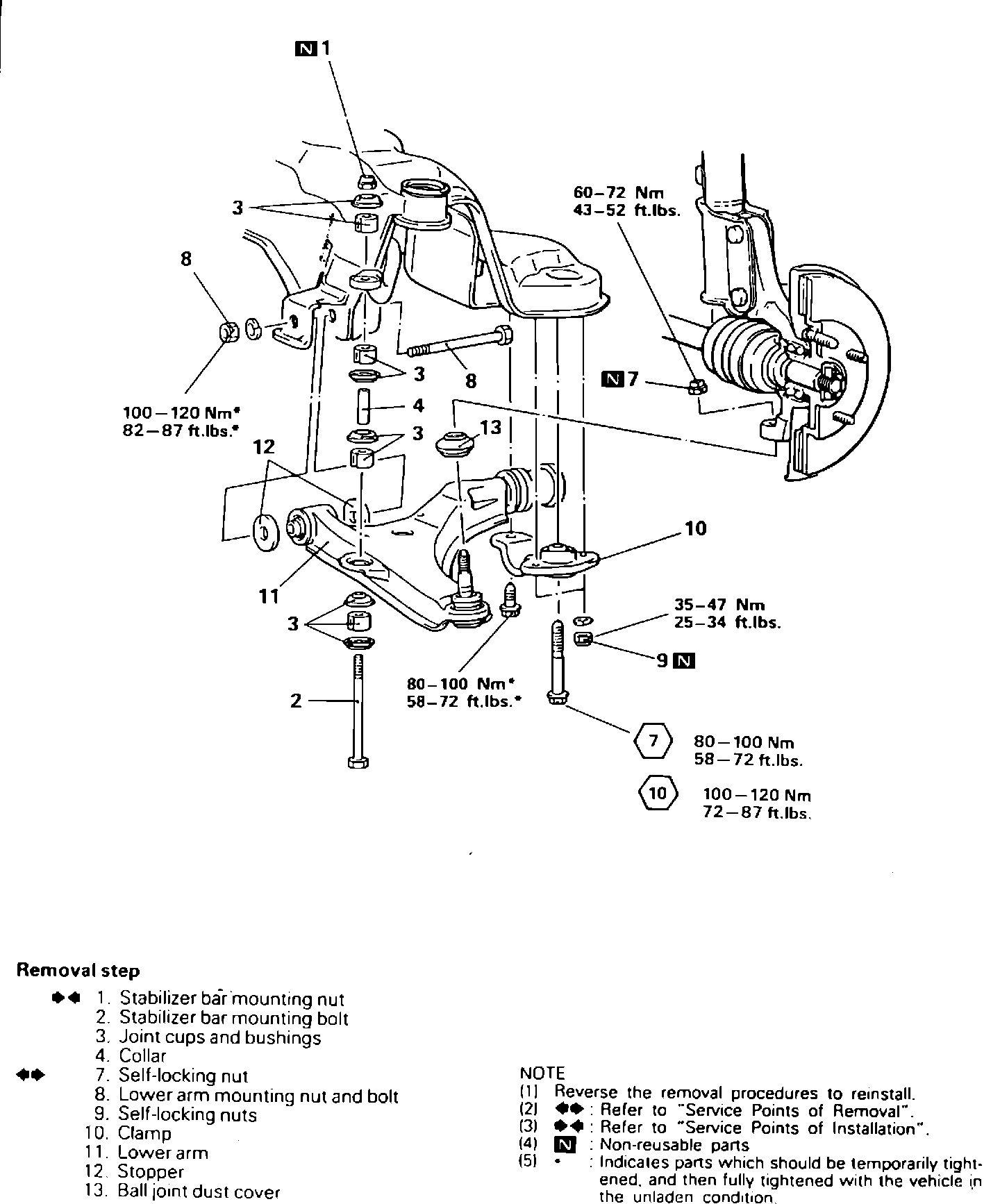

Models equipped with the pillow-ball type of stabilizer
