Electronic Automatic Transmission Control Module
Electronic Automatic Transmission Control Module

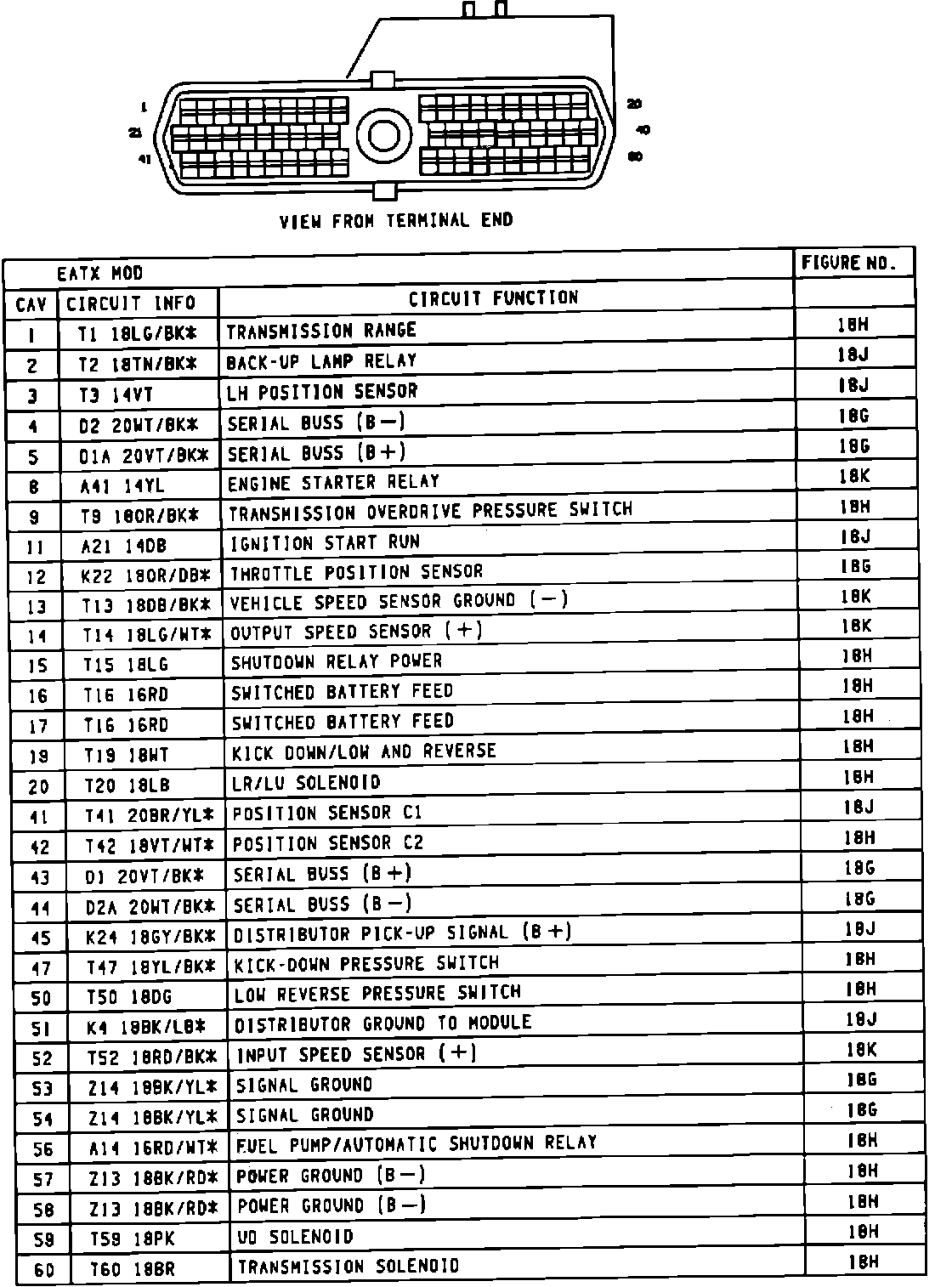

Electronic Transaxle Control Module Connector:
