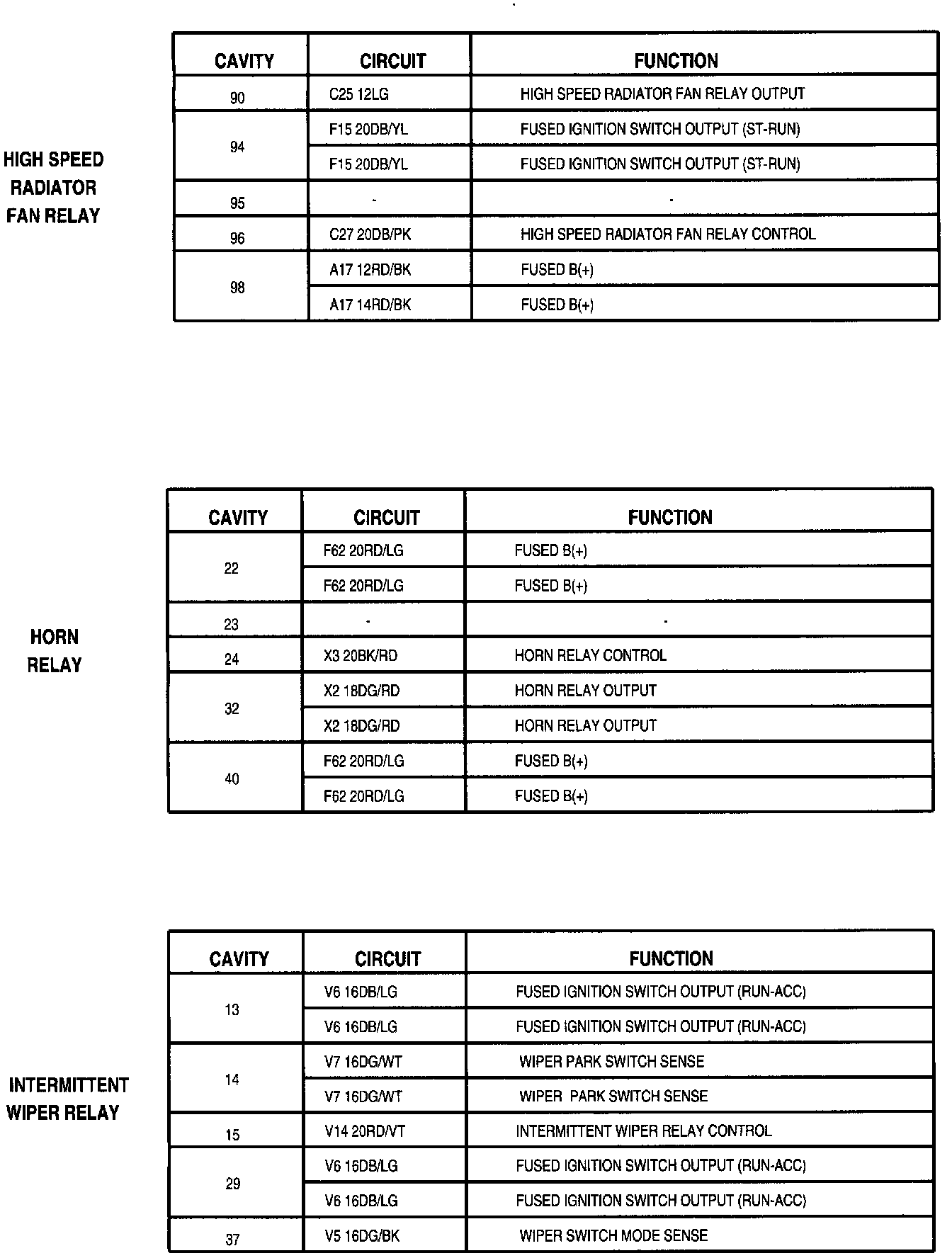

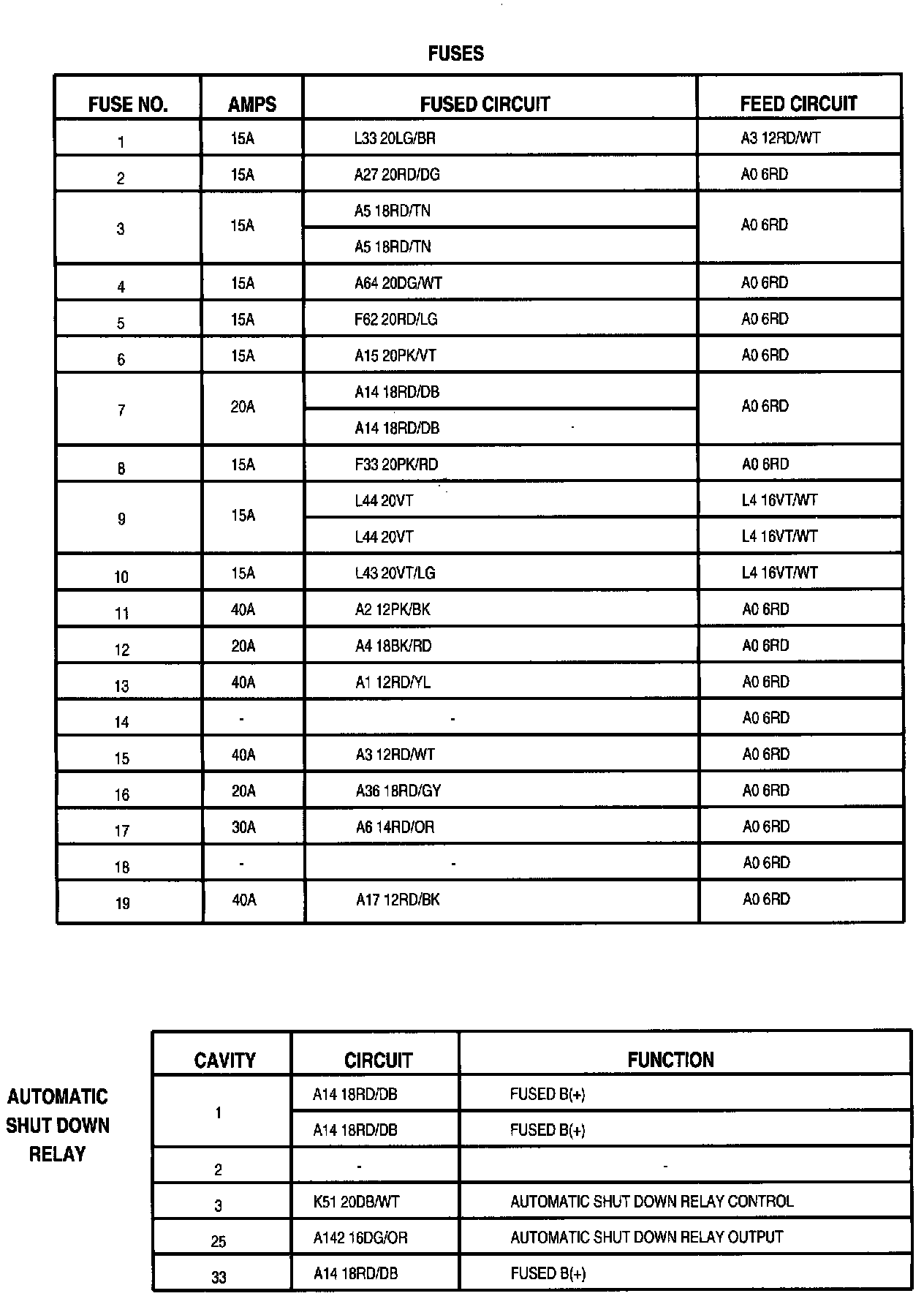

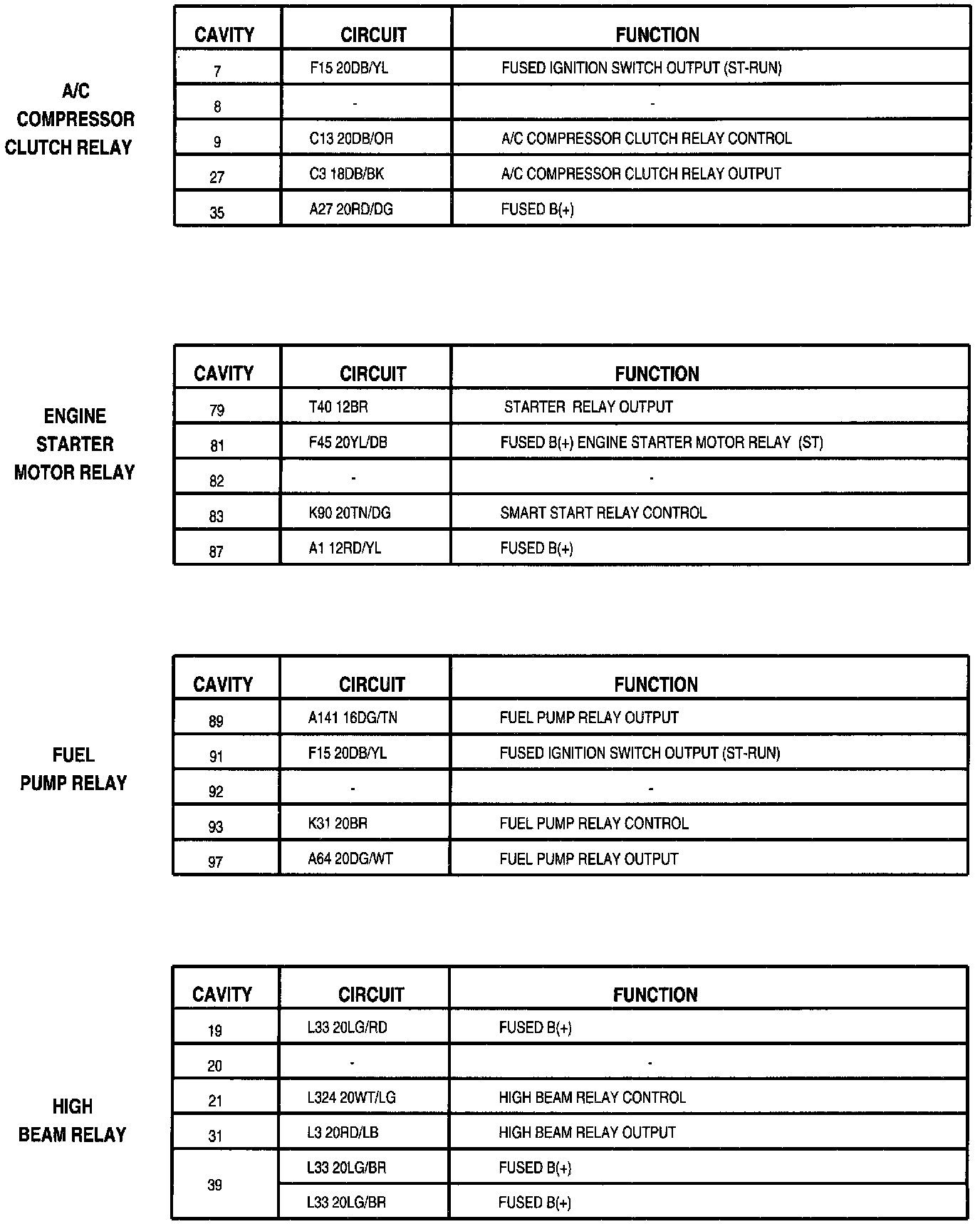

Electrical Accessory Panel

8w-10-002:




Power Distribution:




Power Distribution:




Power Distribution:




Power Distribution:
