Drive Belt: Adjustments

Belt Tension Gauge Method
Use belt tension gauge, Special Tool 7198 for conventional V-belts and Poly-V belts.

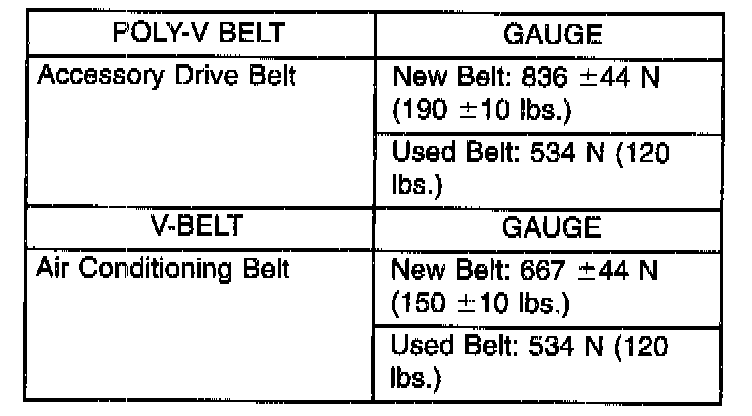

Adjust the belt tension for NEW or USED belt tension applications. Refer to Belt Tension Chart.
