Variable Induction Control Solenoid: Service and Repair

REMOVAL
1. Disconnect the negative battery cable.

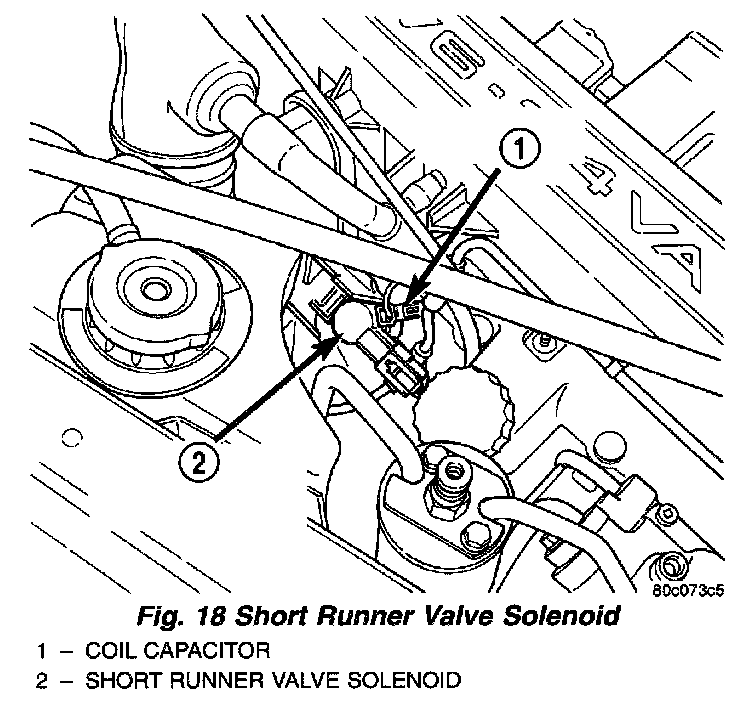

Fig. 18 Short Runner Valve Solenoid:

2. Remove electrical connector (Fig. 18).
3. Remove vacuum hoses.
4. Unclip SRV solenoid from holding bracket.

INSTALLATION
1. Clip SRV solenoid onto holding bracket.
2. Install vacuum hoses to solenoid.
3. Install electrical connector.
4. Connect the negative battery cable.
