EGR Control Solenoid: Locations

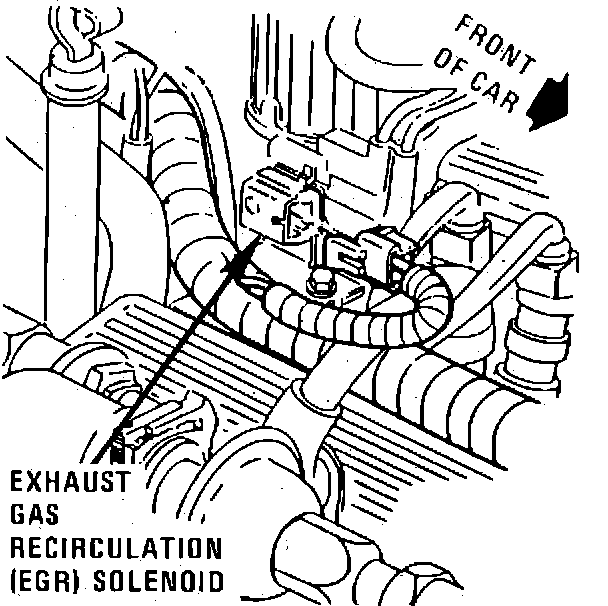

RH Front Corner Of V8-305 Engine:




LH Side Of V8-305 Engine:




Top Rear RH Side Of Engine

Applicable to: 1984-85
