Operation CHARM
: Car repair manuals for everyone.
Home
>>
Pontiac
>>
1987
>>
Firebird V6-173 2.8L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
>>
Inst LPS Fuse
Inst LPS Fuse

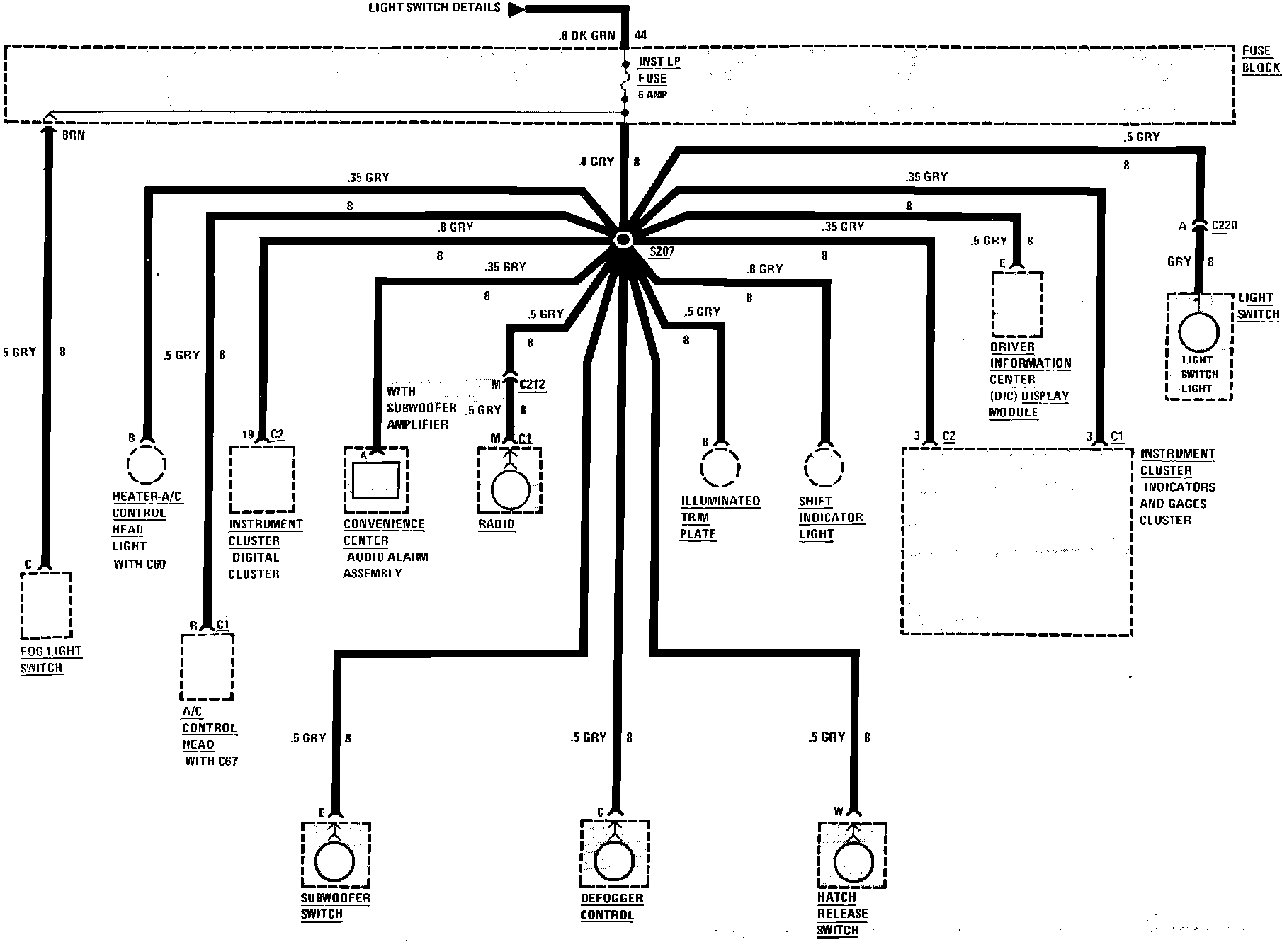

Fuse Block Details (INST LP Fuse):
