Ignition, Service Engine Soon Indicator & Tachometer

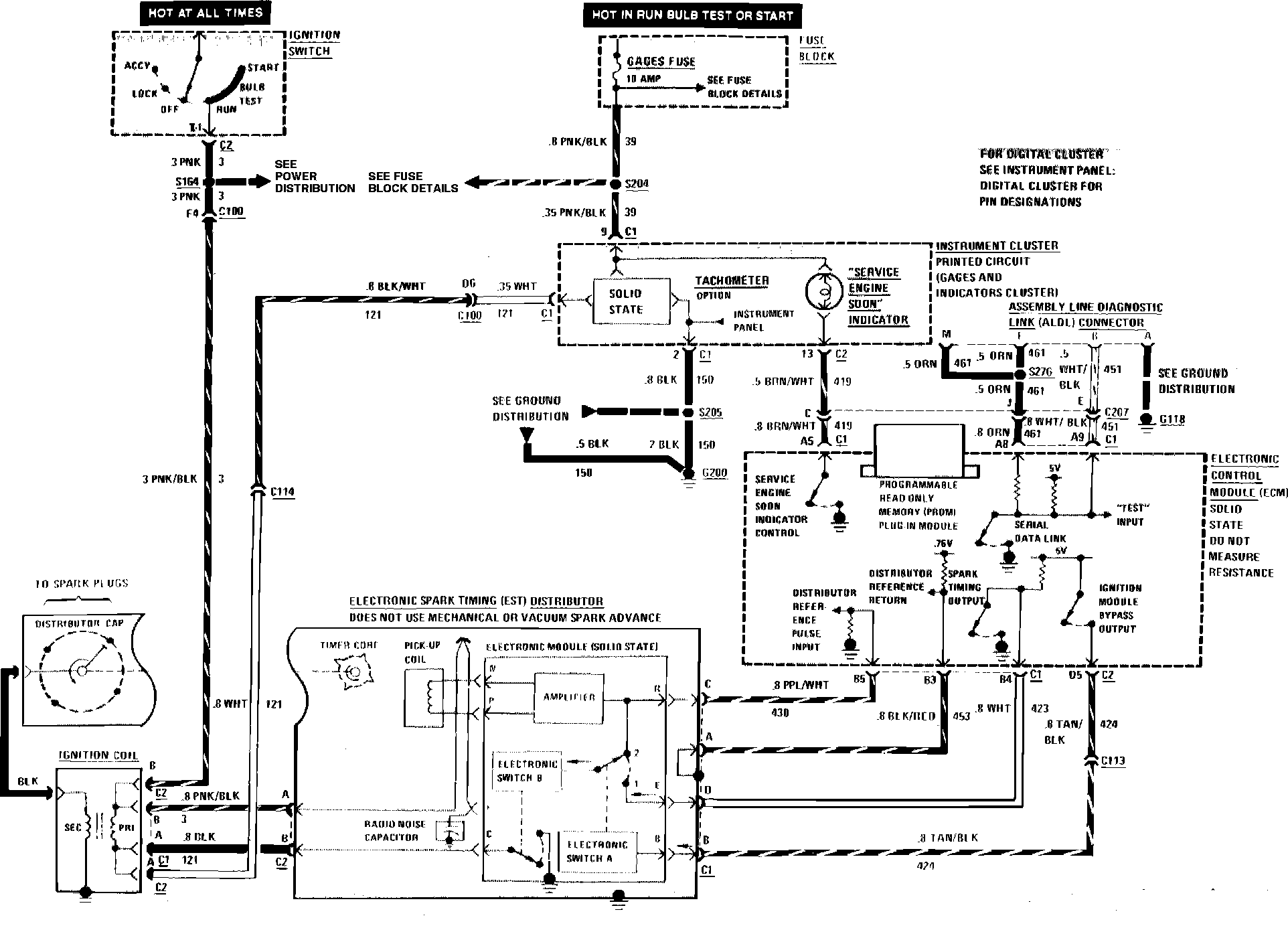

Fuel Injection/Multi-Port Wiring Circuit (Ignition, Service Engine Soon Indicator & Tachometer). W/V6-173/2.8L:
