Body - Incomplete Decal Graphics
Number 87-10-12 Date 3/87
1987 FIREBIRD FORMULA - PRODUCED WITH
Subject: INCOMPLETE FORMULA DECAL GRAPHICS
1987 FIREBIRD FORMULA
Some Formula Firebirds produced at the Van Nuys Assembly Plant may not have had the complete Formula Decal Graphics Package applied to the vehicle during production.
INCLUDED VINS
VIN HL200012 thru HL213137
Provided are line drawings that indicate the correct location for each decal (see Illustrations). A Formula Decal Package part number list is also included.
WARRANTY INFORMATION
Use appropriate existing labor operations and submit as a normal warranty claim.

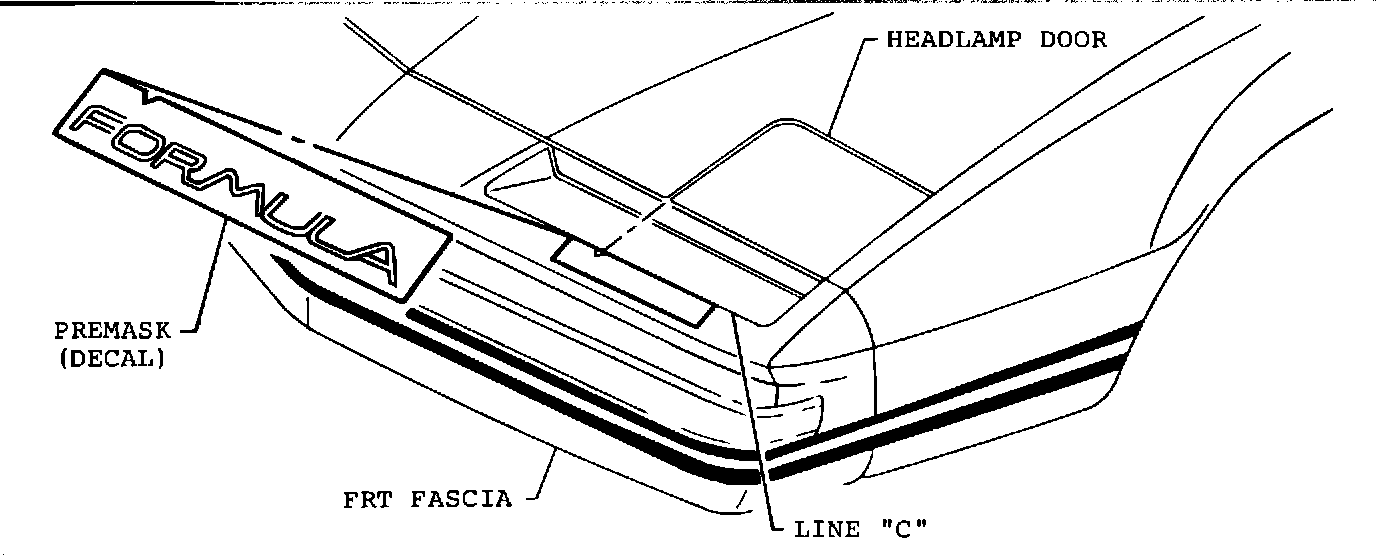

FRONT FASCIA FORMULA DECAL:
FRONT FASCIA FORMULA DECAL: Align top of premask with line "C" and notch in top of premask should align with inboard edge of headlamp door.

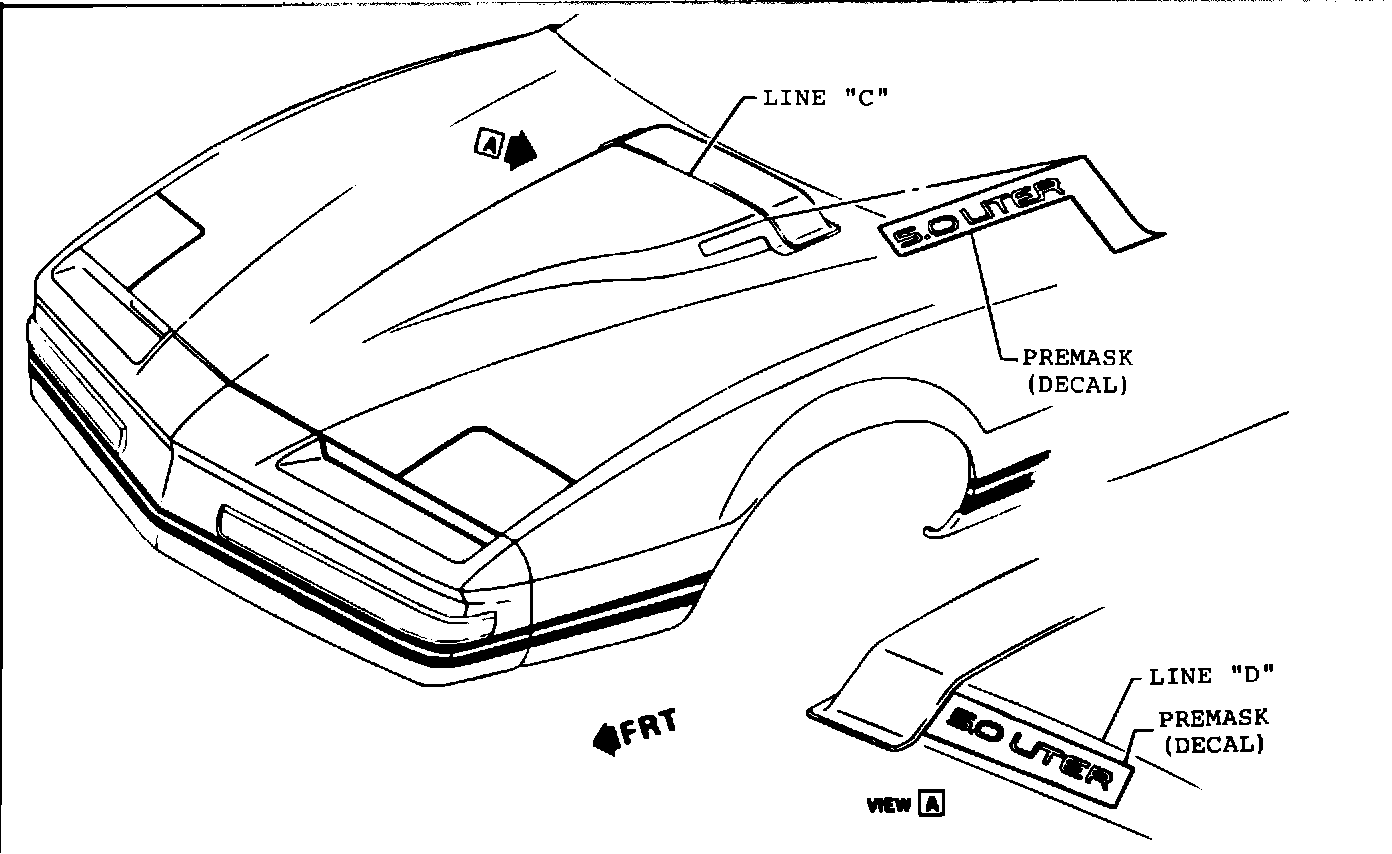

HOOD DECAL:
HOOD DECAL: Align rear edge of premask with line "C" and top edge of premask with radius tangent of line "D". Align rear edge and rear lower radius of premask with line "C".
FRONT FASCIA BIRD DECAL:
FRONT FASCIA BIRD DECAL: Align top edge of premask to top edge of fascia and notch on premask to centerline of fascia.

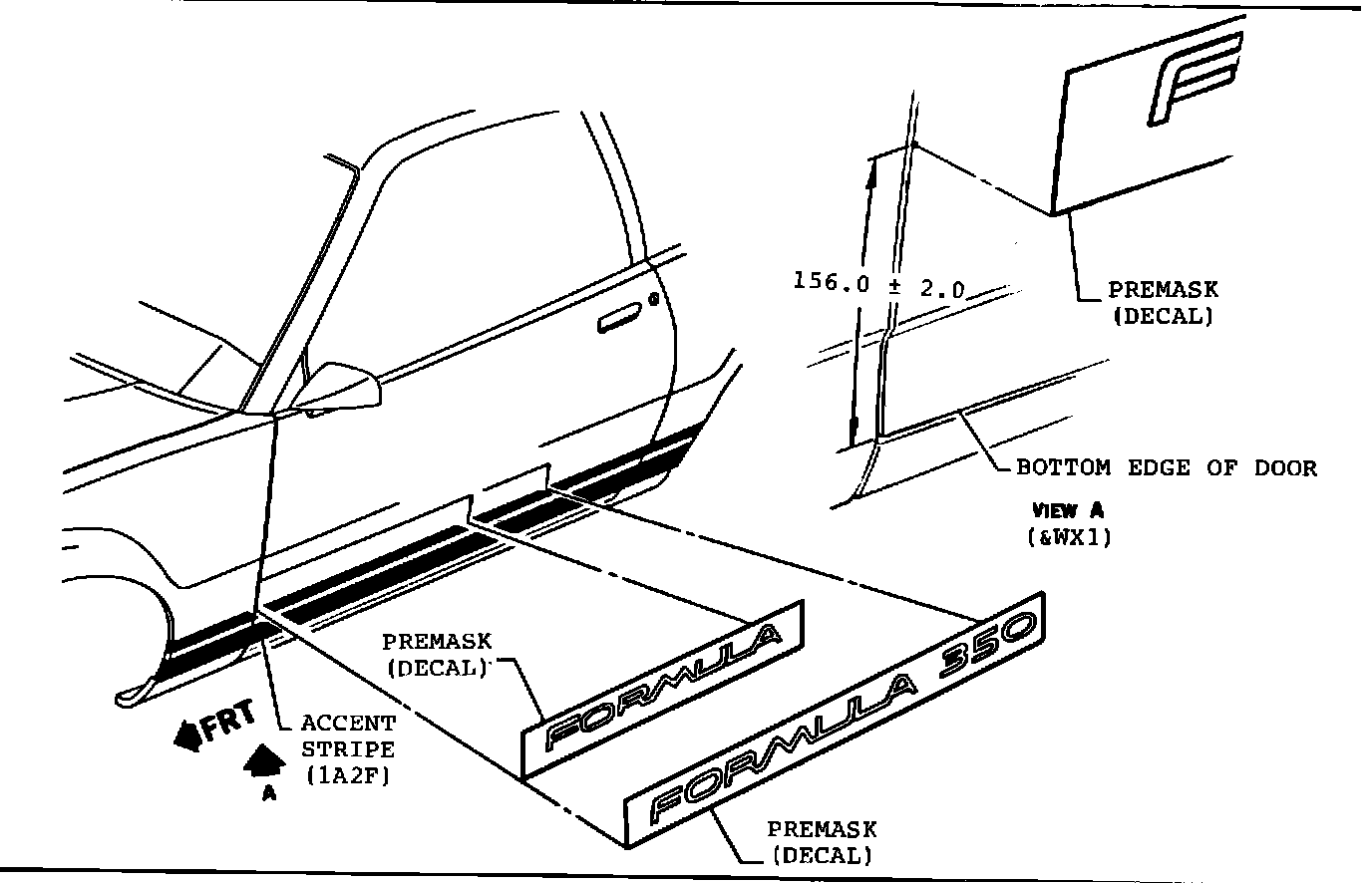

LOWER FRONT DOOR FORMULA DECAL:
LOWER FRONT DOOR FORMULA DECAL: Align front edge of premask with front edge of door and bottom edge of premask 156.0 from the bottom edge of door. Align front edge of premask with front door edge and bottom of premask with top of stripe.

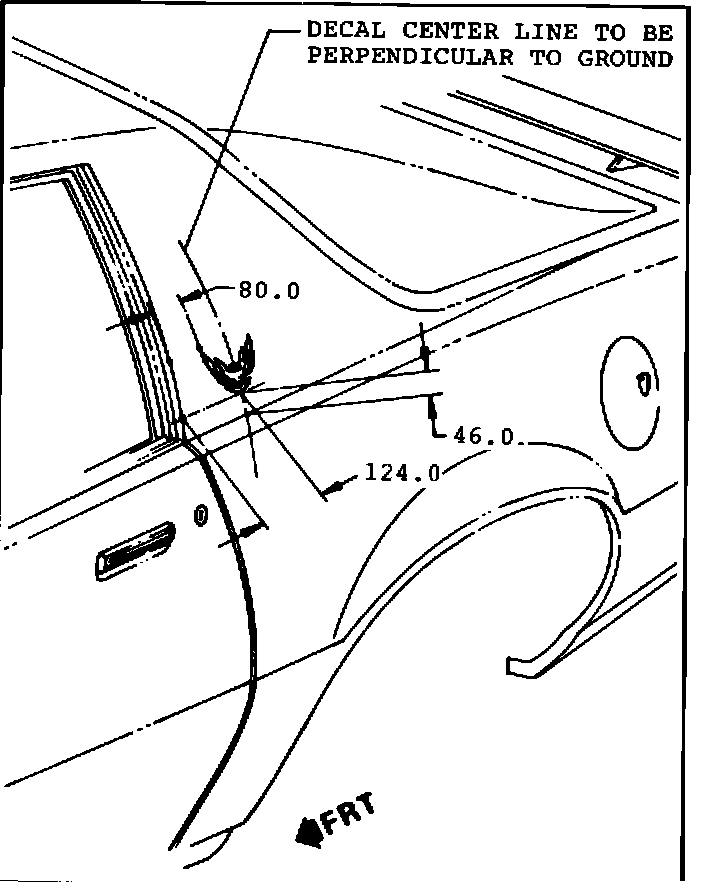

SAIL PANEL DECAL:
SAIL PANEL DECAL:
Dimensions in millimeters.
REAR BUMPER FASCIA FORMULA DECAL:
REAR BUMPER FASCIA FORMULA DECAL:
Align bottom of premask to top rear bumper fascia rub strip.
GRAPHIC USAGES FOR "FORMULA" OPTION - W66 WITH TWO-TONE DELETE OPTION - WX1
PART NO's
GRAPHICS/DECAL PART NO's QTY OF FOR BLUE, RED
LOCATION "DESCRIPTION" FOR WHITE PARTS/ AND BLACK
(USAGE) CAR COLOR CAR CAR COLORS
GRAPHICS COLOR GRAY SILVER
Front Fascia "BIRD" 10051994 1 10051992
Front Fascia "FORMULA" 10051964 1 10051963
Hood "5.0 LITER" (&LG4) 10051983 LH 1 10051981 LH
10051984 RH 1 10051982 RH
Hood "5.0 LITER FI" (&LB9) 10051987 LH 1 10051985 LH
10051988 RH 1 10051986 RH
Door "FORMULA" 10051962 2 10051961
Door "FORMULA 350" (&L98) 10051967 2 10051966
Sail "BIRD" 10035394 2 10035392
Rear Fascia "FORMULA" 10051964 1 10051963
