Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
>>
Alarm & Warning System
>>
Buzzer
Buzzer

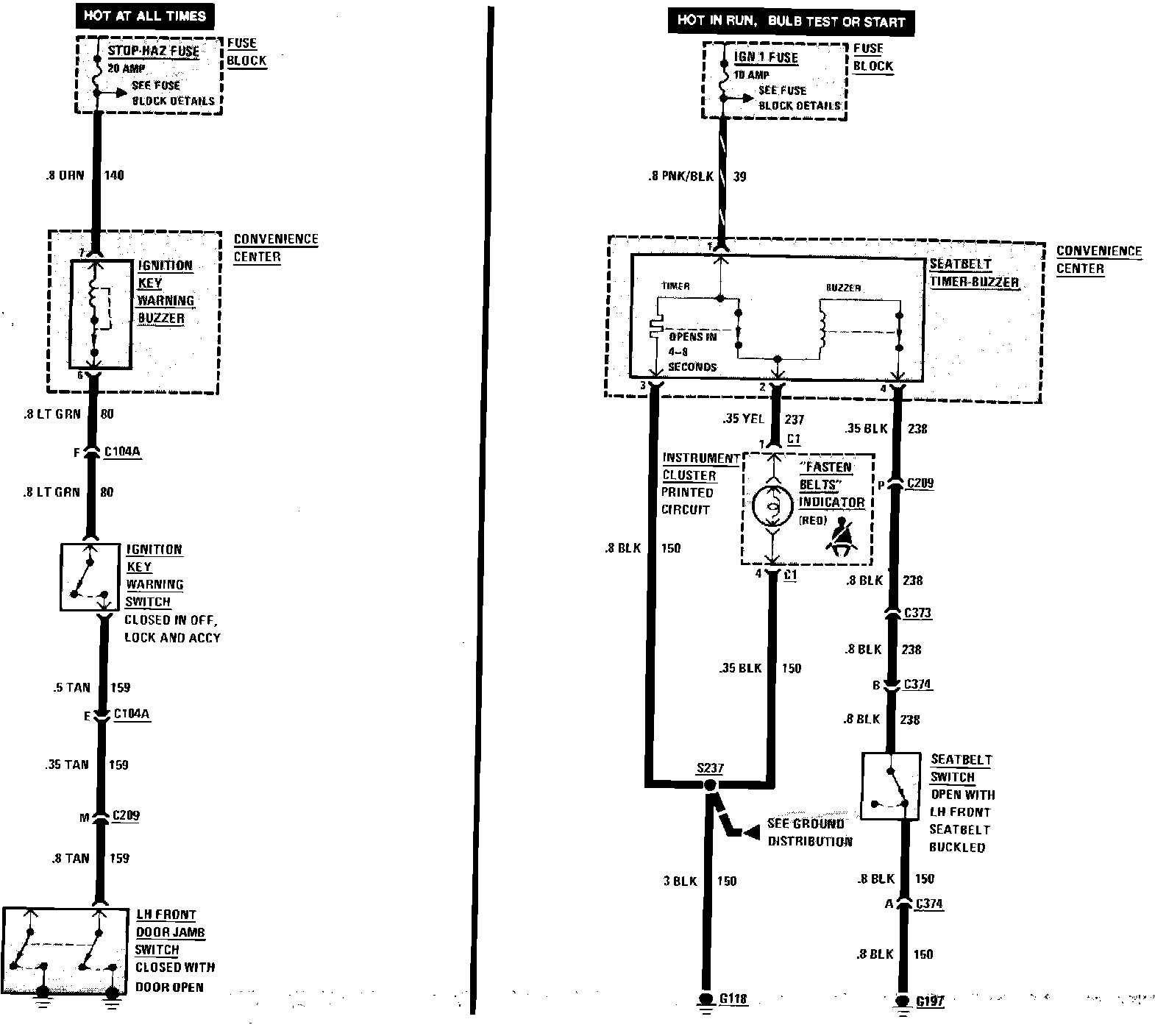

Alarms & Warning Wiring Circuit (Buzzer):
