Operation CHARM
: Car repair manuals for everyone.
Home
>>
Pontiac
>>
1987
>>
Grand Prix V6-231 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
>>
Alarm & Warning System
>>
Tone
Tone

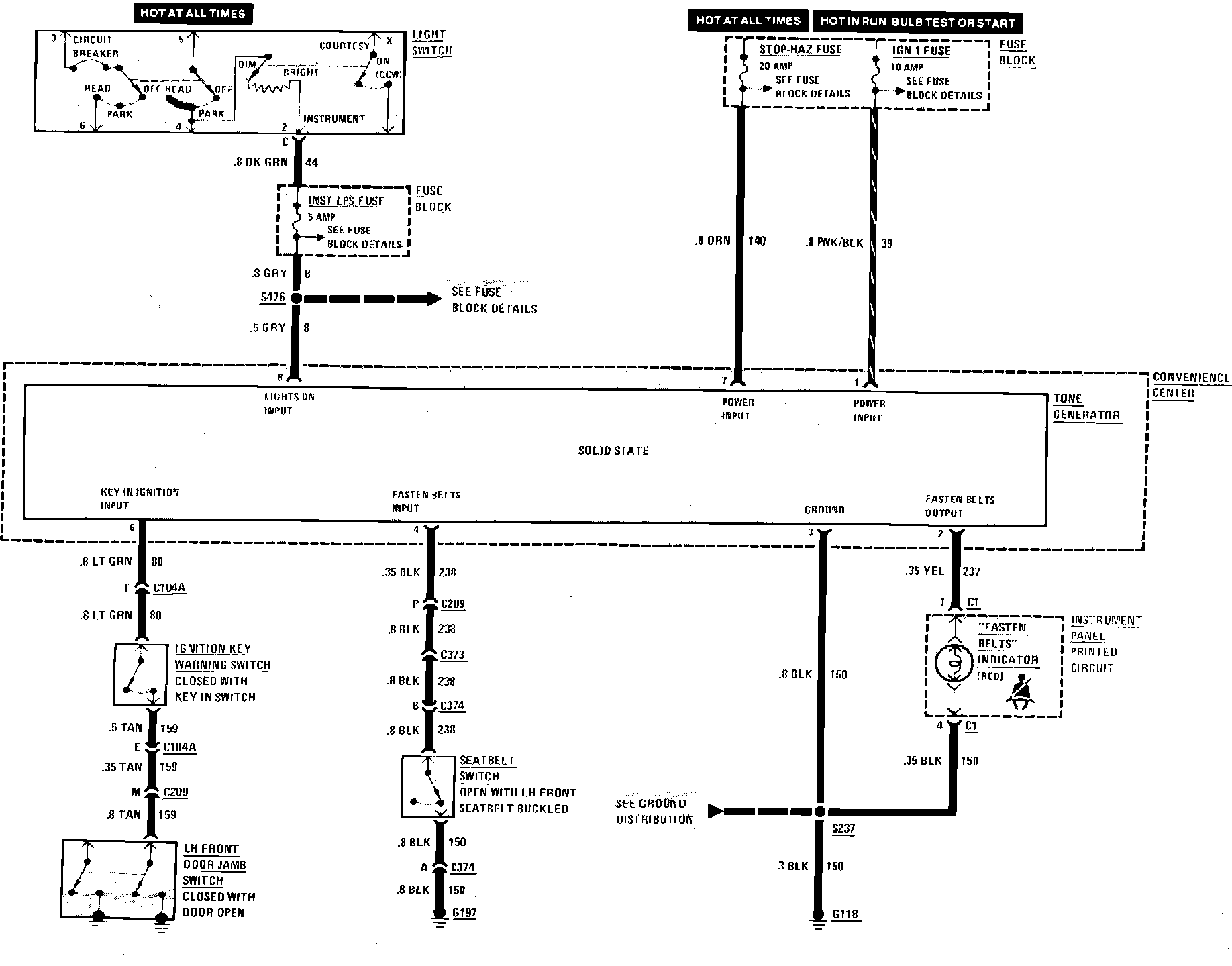

Alarms & Warning Wiring Circuit (Tone):
