Temperature Warning Lamp/Indicator, Engine Cooling
Temperature Warning Lamp/Indicator, Engine Cooling

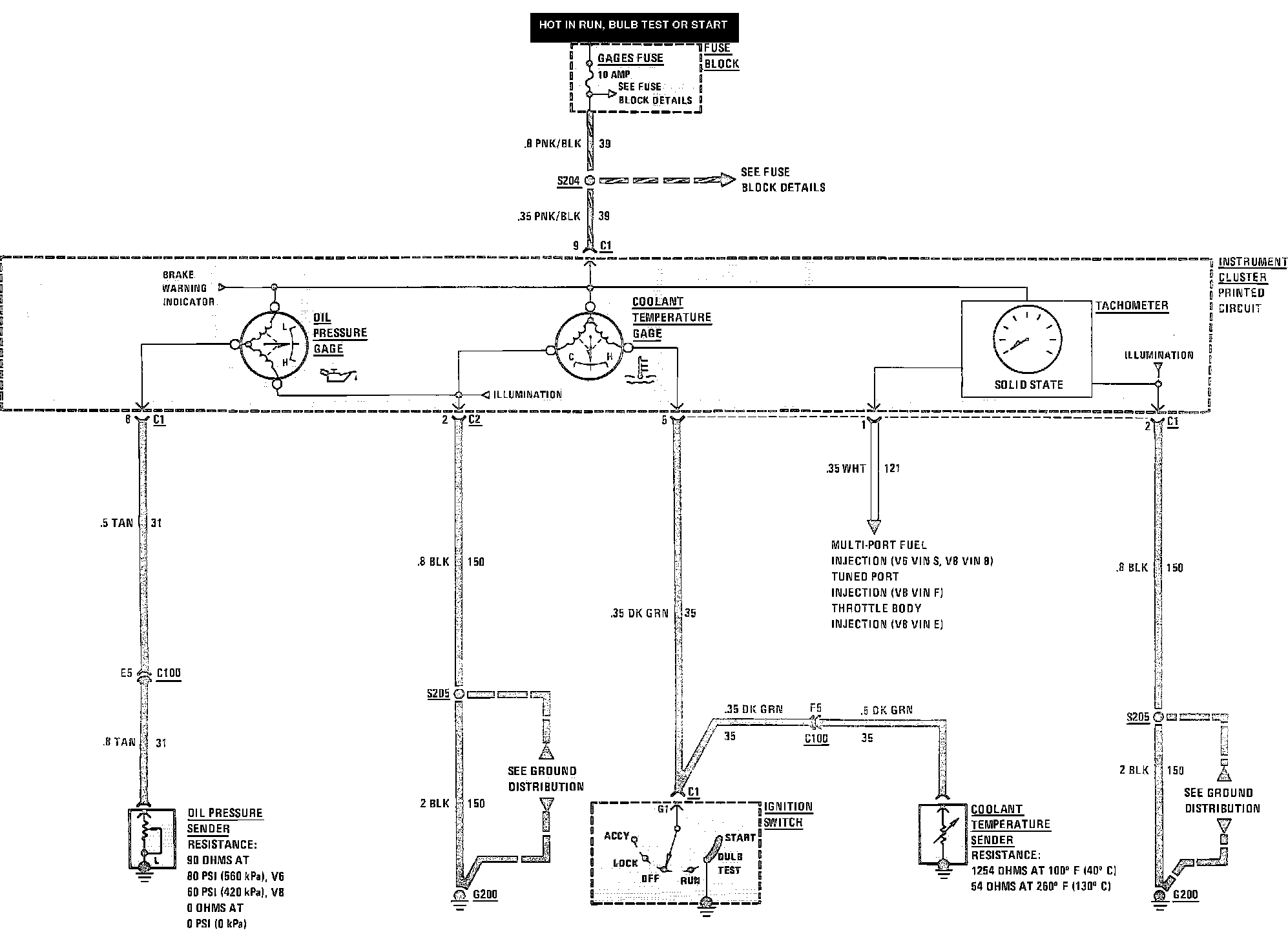

Gauges Cluster, Gauges & Tachometer:
