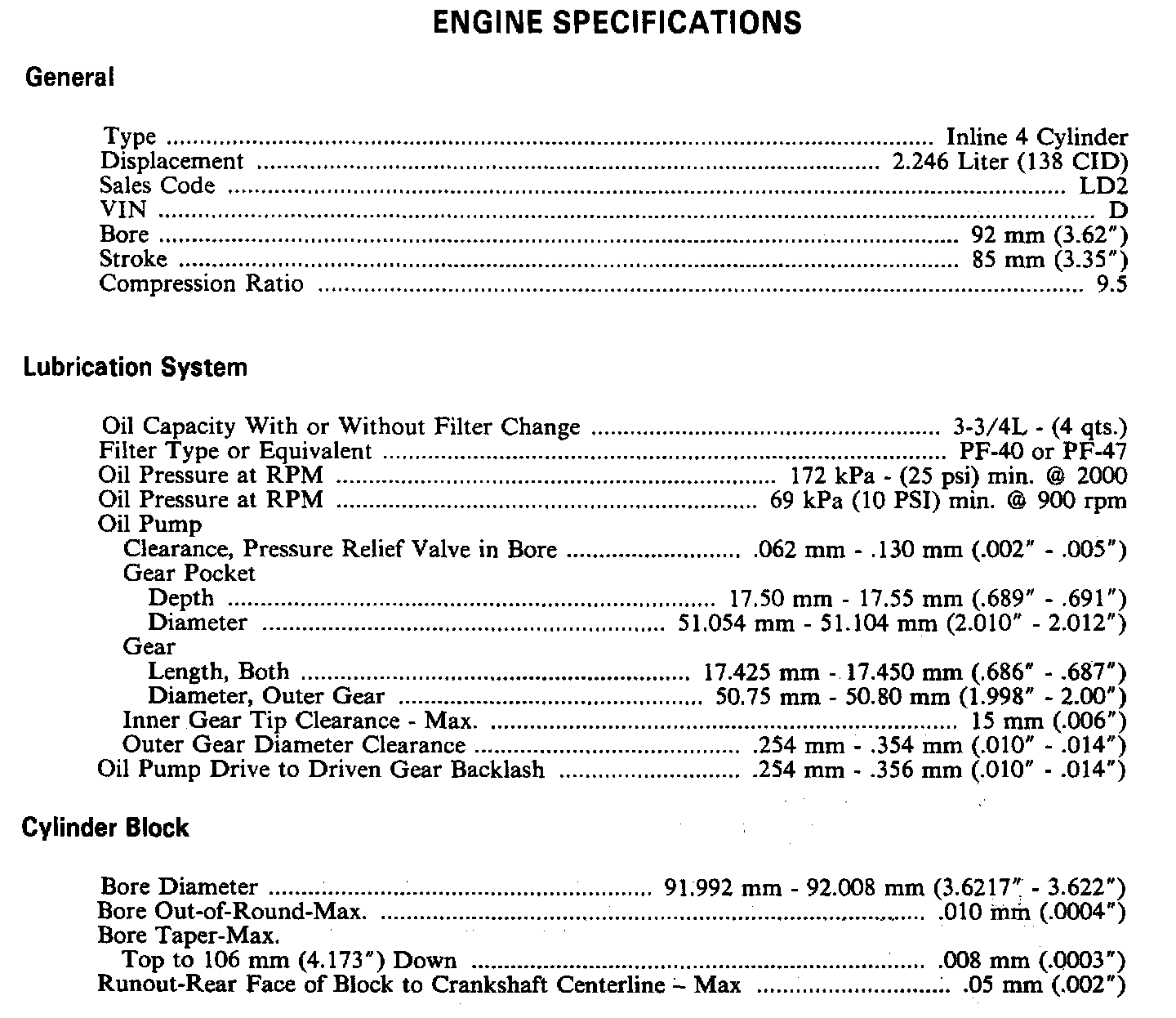

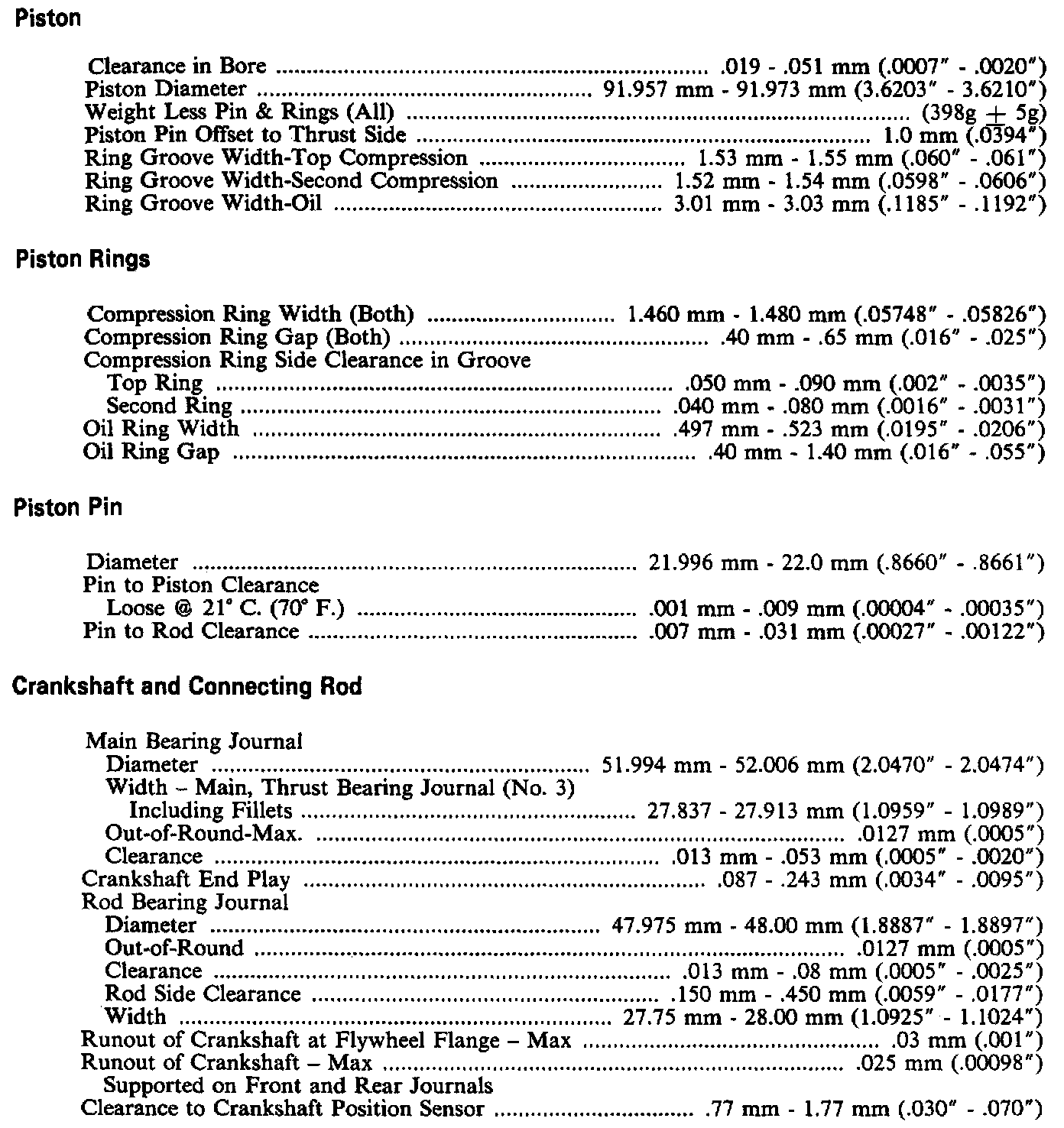

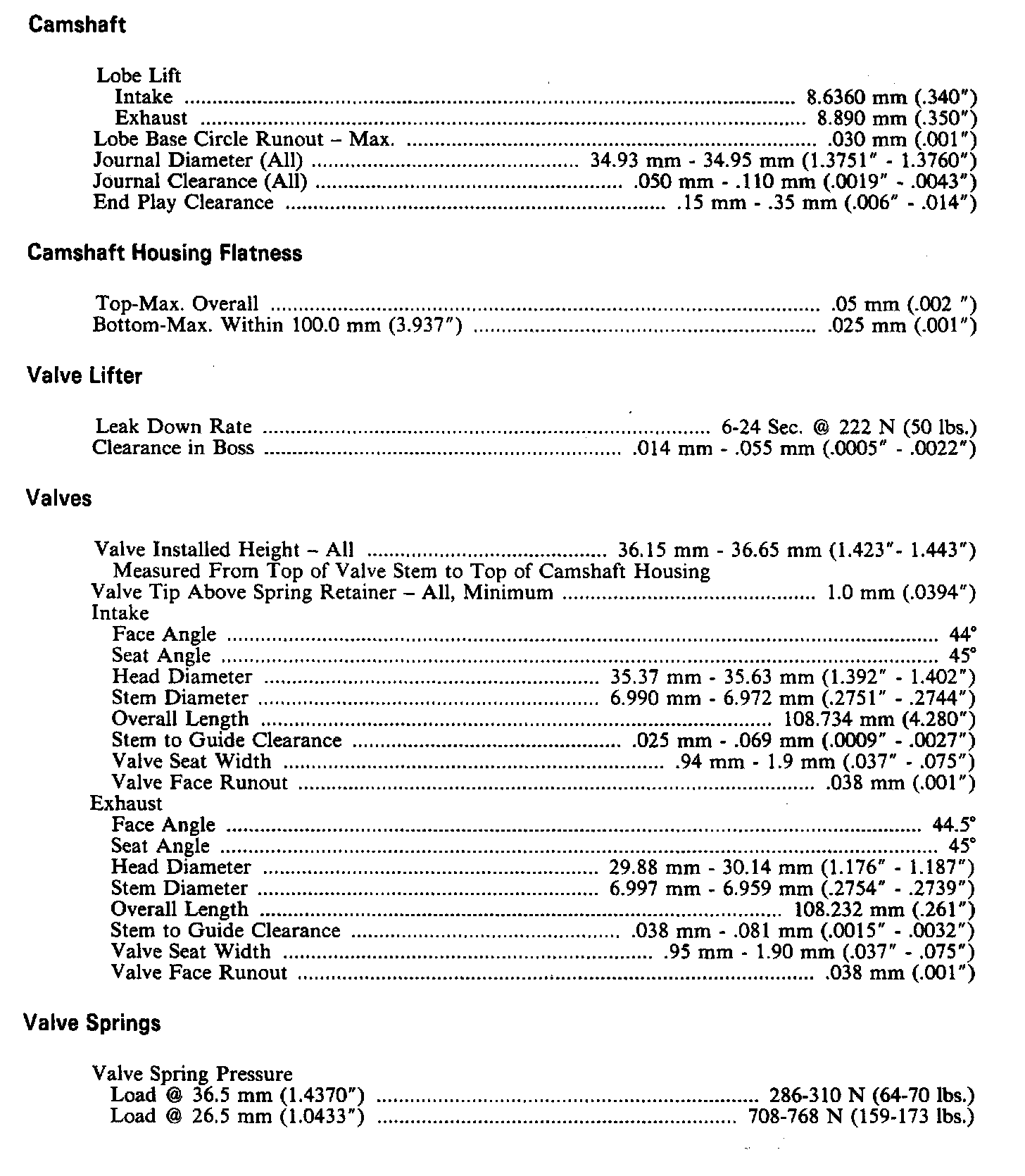

System Specifications

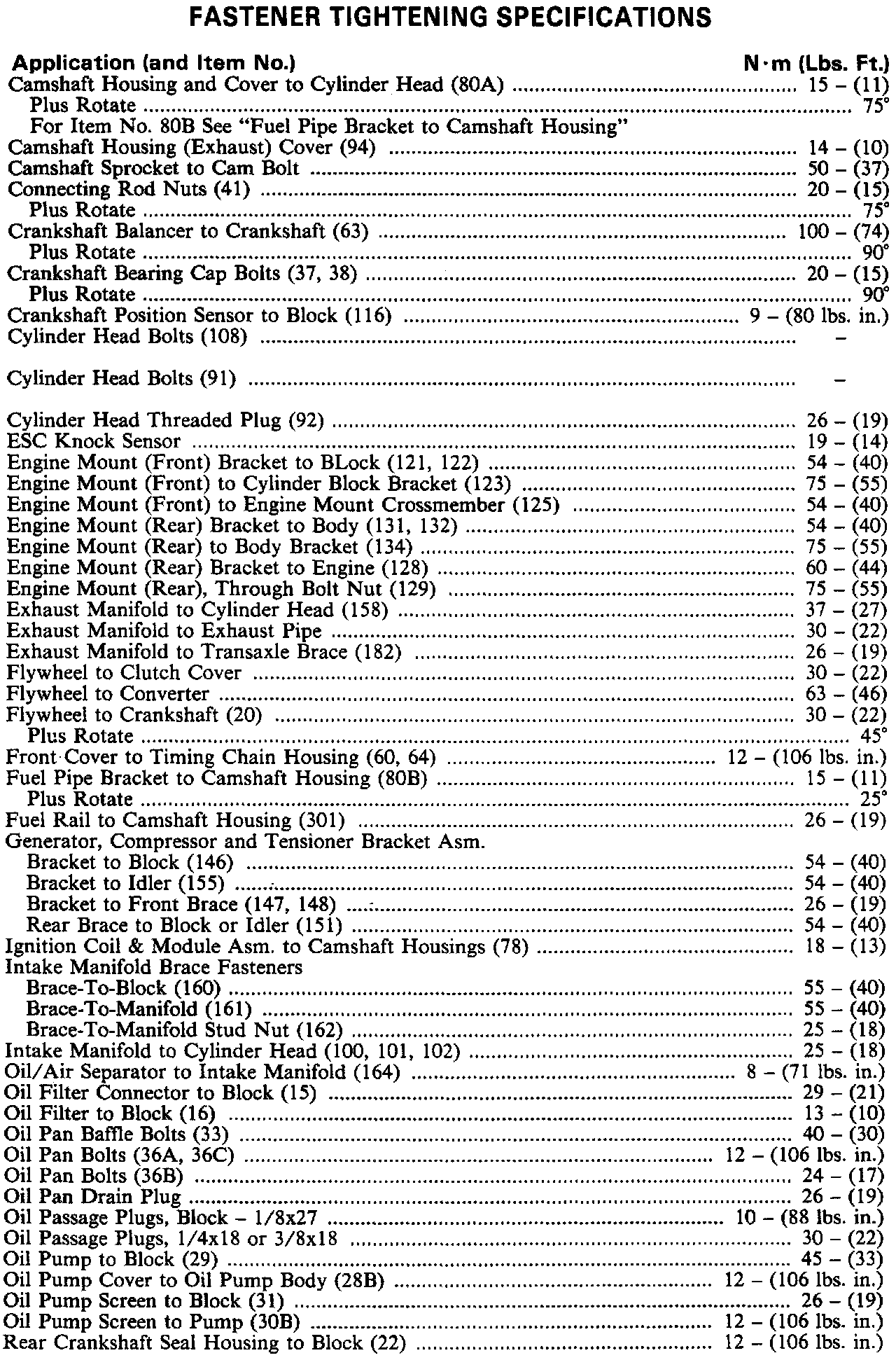

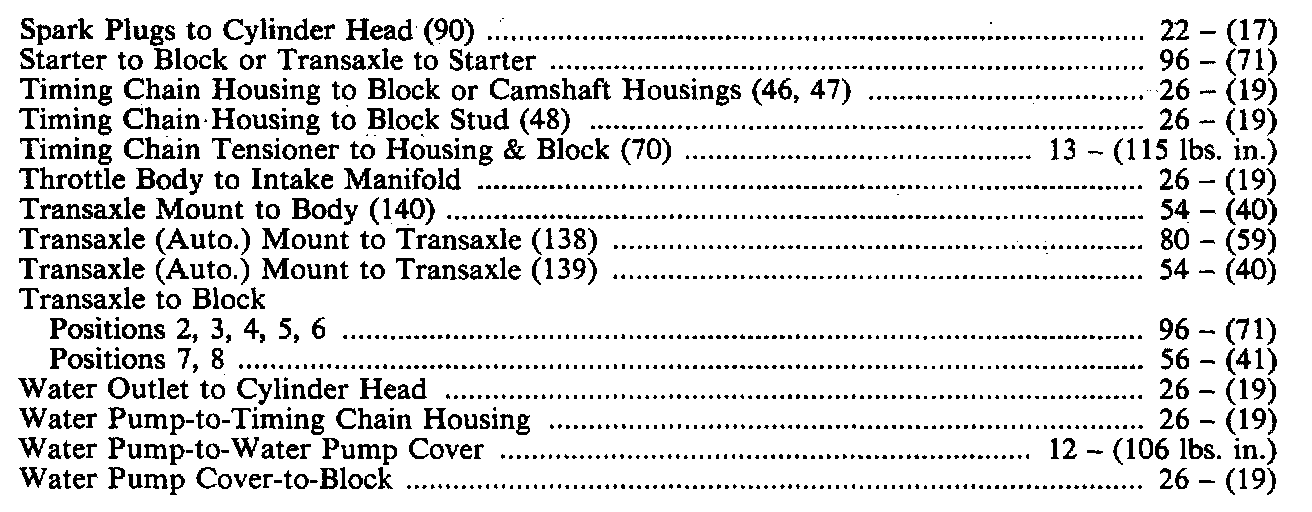

Torque Specifications:

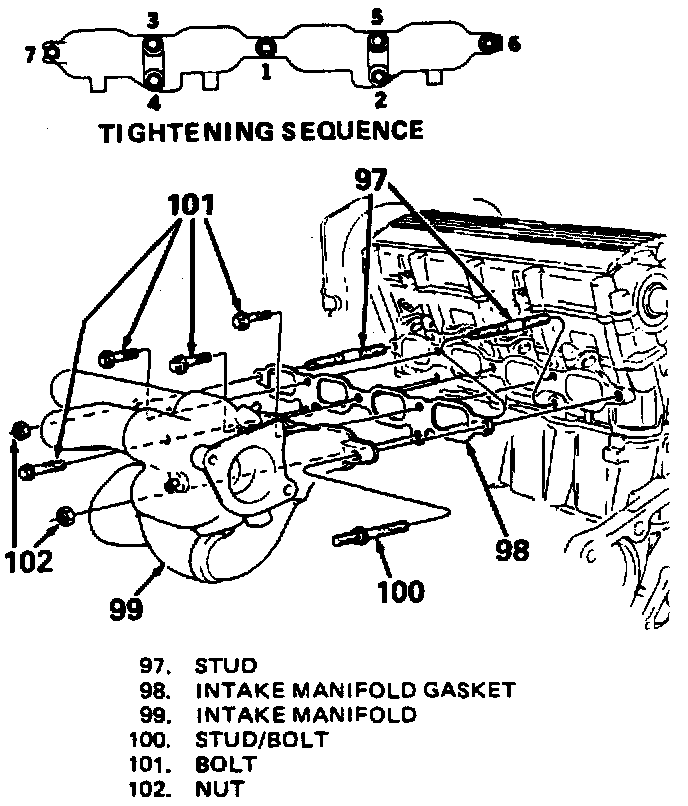

Intake Manifold Torque Sequence:





Cylinder Head Bolt Tightening Sequence:
