Step 5 - Grey Area Diagnosis and Service
Step 5 - Grey Area Diagnosis and Service

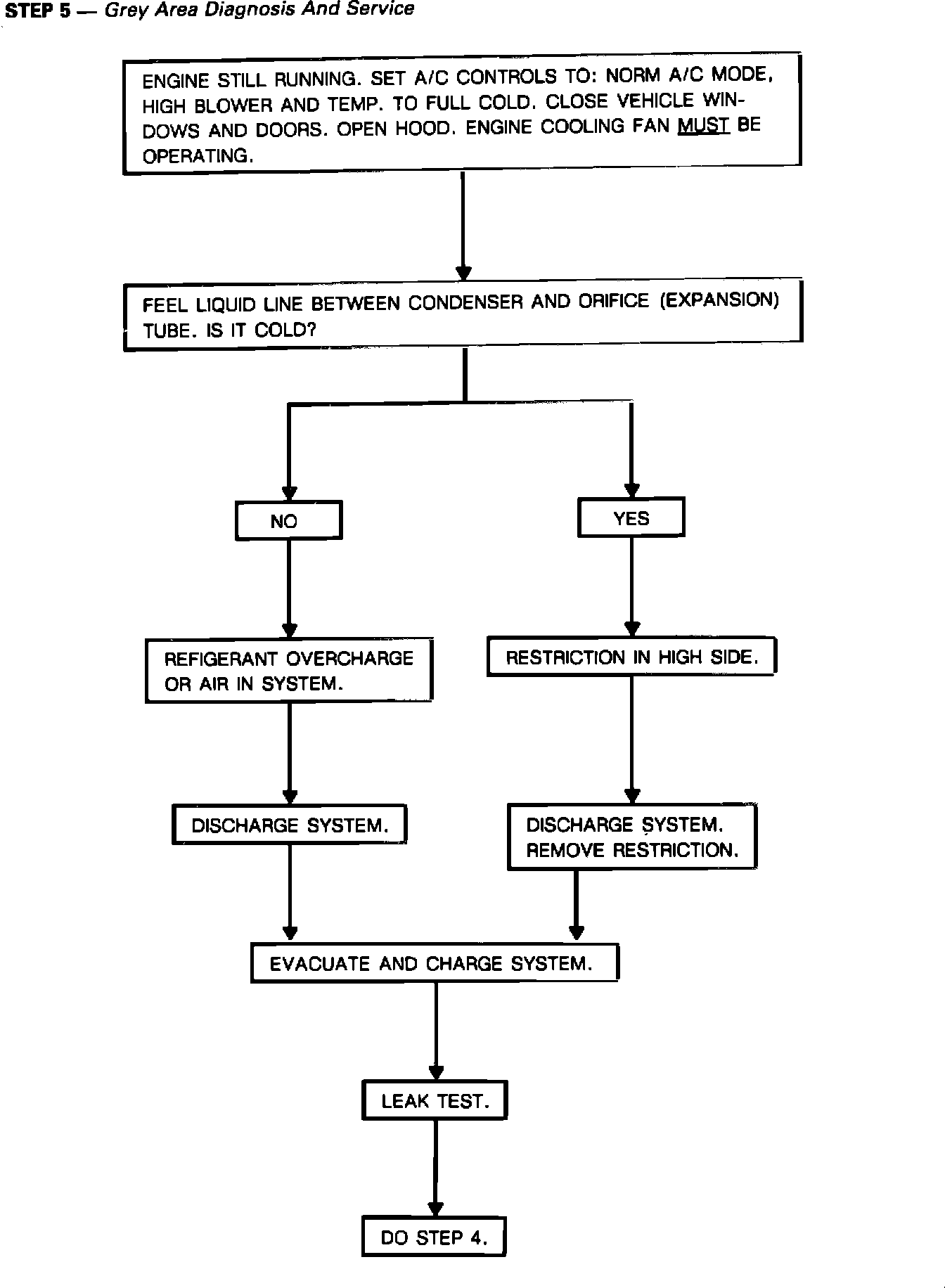

Figure 6 - VDOT System Diagnostic Charts (6 of 8):
