High Pressure Safety Valve HVAC: Locations

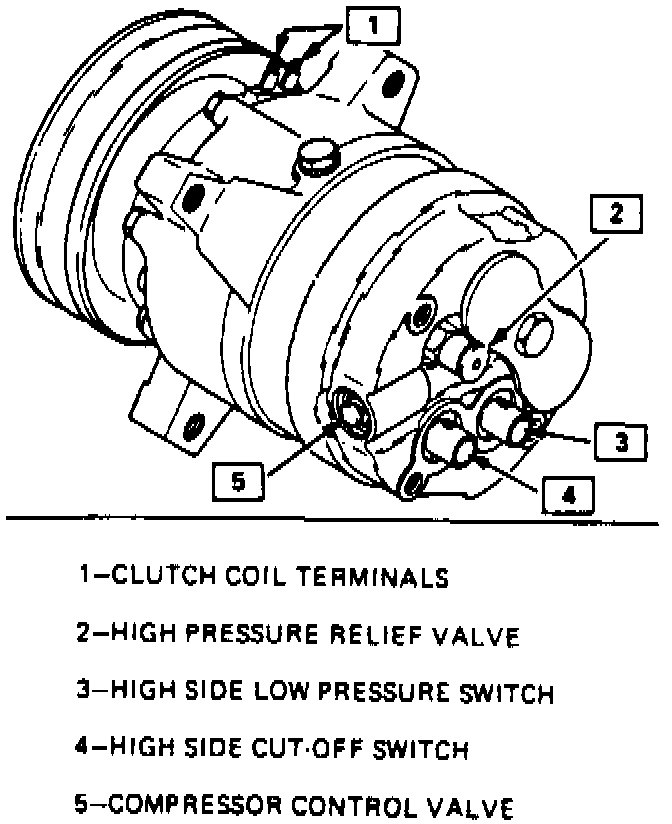

V-5 Compressor Mounted Control Switches (VIN U):
Located on the back side of the A/C Compressor.
