Home
>>
Pontiac
>>
1991
>>
Grand Prix V6-191 3.1L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Malfunction Indicator Lamp
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

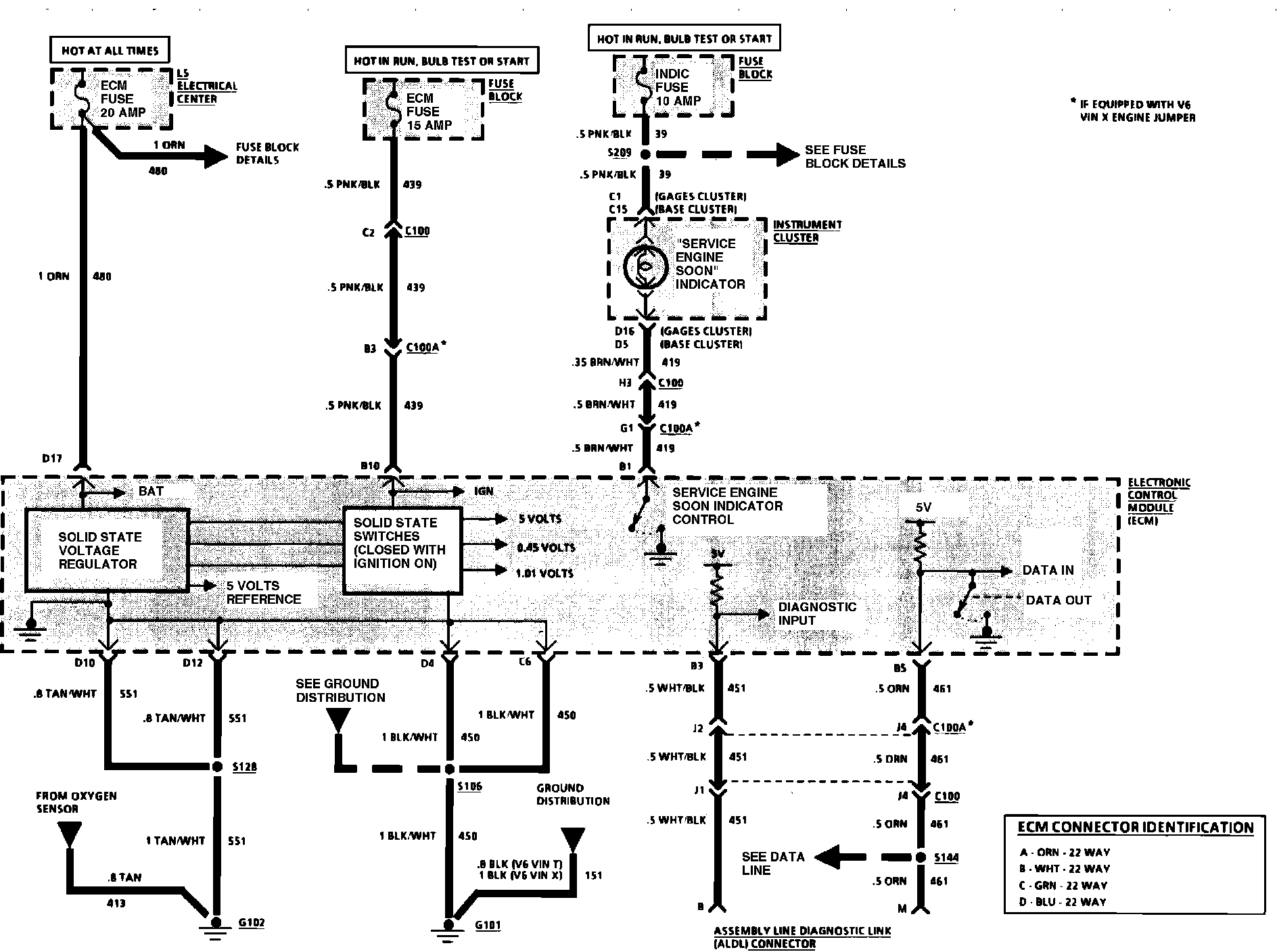

Fuel Injection (ALDL, Ground, Power & Service Engine Soon Indicator):
