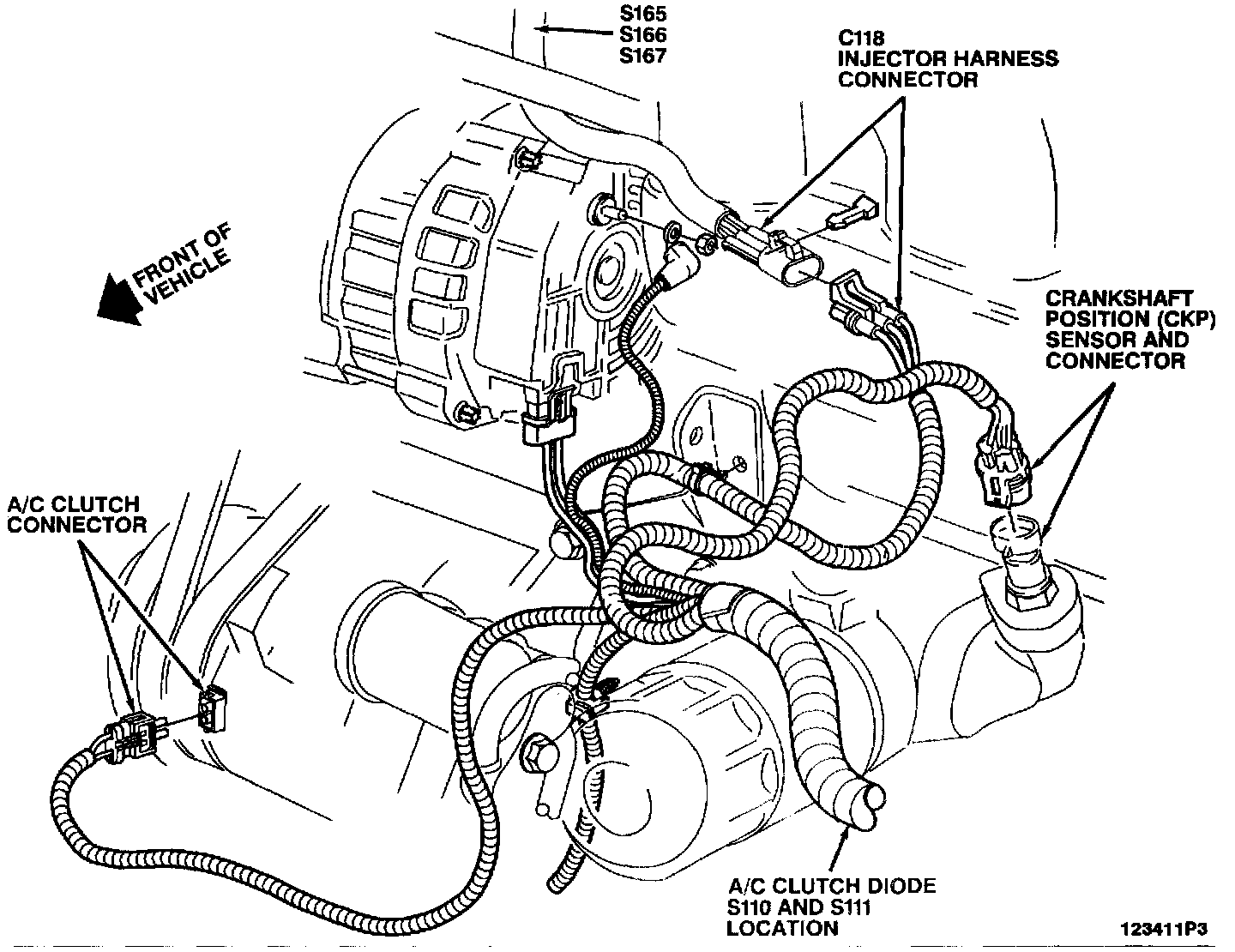

Crankshaft Position Sensor: Locations

RH Front Of Engine Compartment:







Lower LH side of engine compartment, rear of oil filter.
