Wear Limit

Ball joints must be replaced if any looseness is detected in the joint or the ball joint seal is cut.

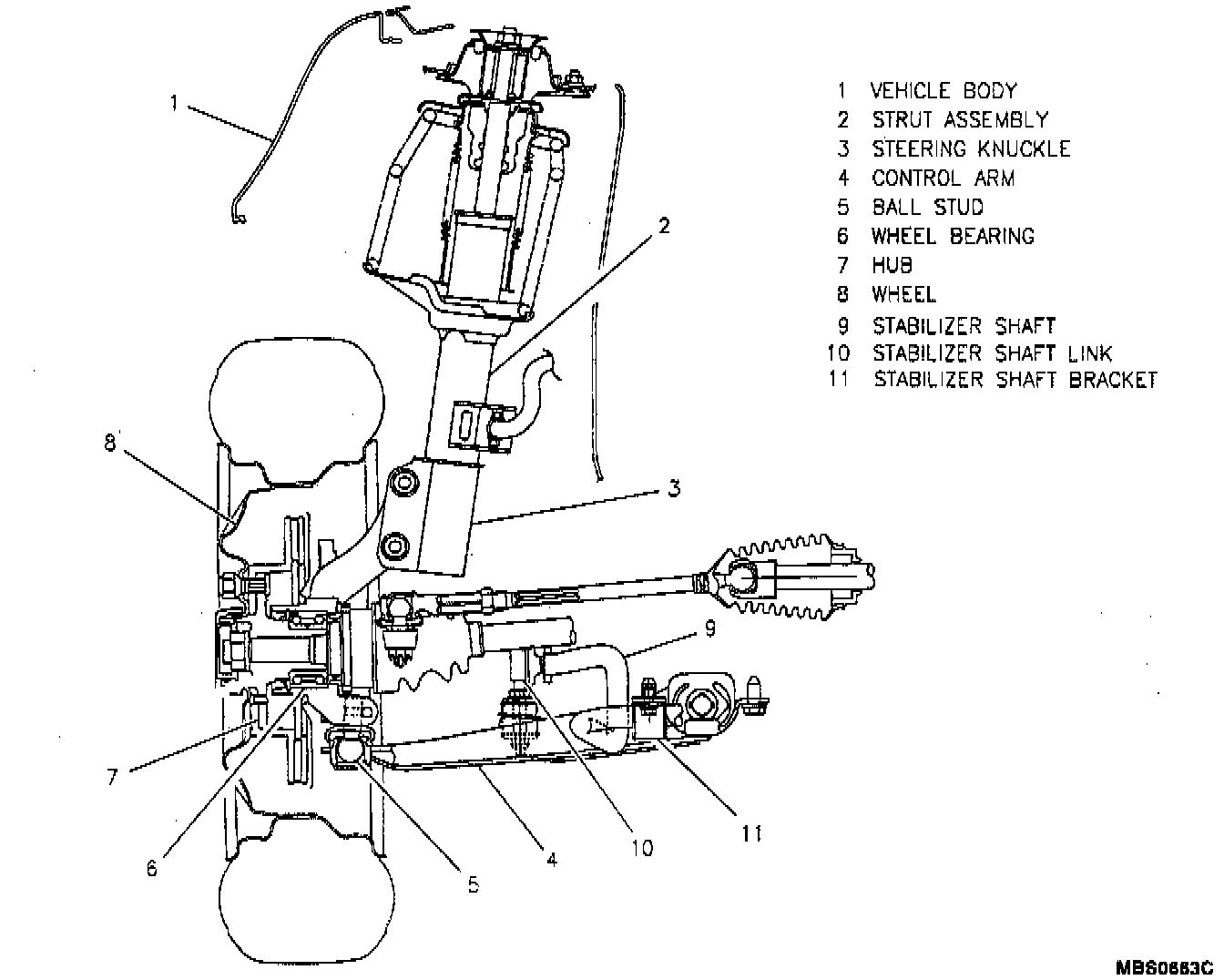

To inspect ball joints, raise and suitably support the front of the vehicle. Refer to General Vehicle Lifting and Jacking in General Information. Grasp the tire at the top and bottom and move the top of the tire with an in-and-out motion. Observe for any horizontal movement of the steering knuckle relative to the control arm.

If the ball stud is disconnected from the knuckle and any looseness is detected, or if the ball stud can be twisted in its socket using finger pressure, replace the ball joint.

Ball stud tightness in the knuckle boss should also be checked when inspecting the ball joint. This may be done by shaking the wheel and feeling for movement of the stud end or castle nut at the knuckle boss. Checking the fastener torque at the castle nut is an alternative method of inspecting for wear-a loose nut can indicate a bent stud in the knuckle boss. Worn or damaged ball joints and knuckles must be replaced.
