Front Washer Nozzle Replacement

Front Wiper/Washer System:

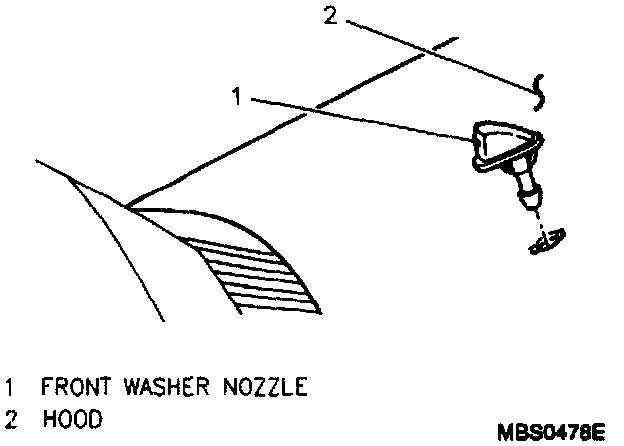

Front Washer Nozzle:

IMPORTANT:
If a nozzle becomes plugged, apply air pressure to help remove the obstruction. If nozzle remains plugged, the nozzle must be replaced.

Remove or Disconnect
1. Washer hose from nozzle.
2. Gently disengage lock tabs of nozzle from underside of hood.
3. Nozzle and seal from hood.
4. Seal from nozzle.

Install or Connect
1. Seal to nozzle.
2. Nozzle to hood, engaging lock tabs to underside of hood.
3. Washer hose to nozzle.
