3T40

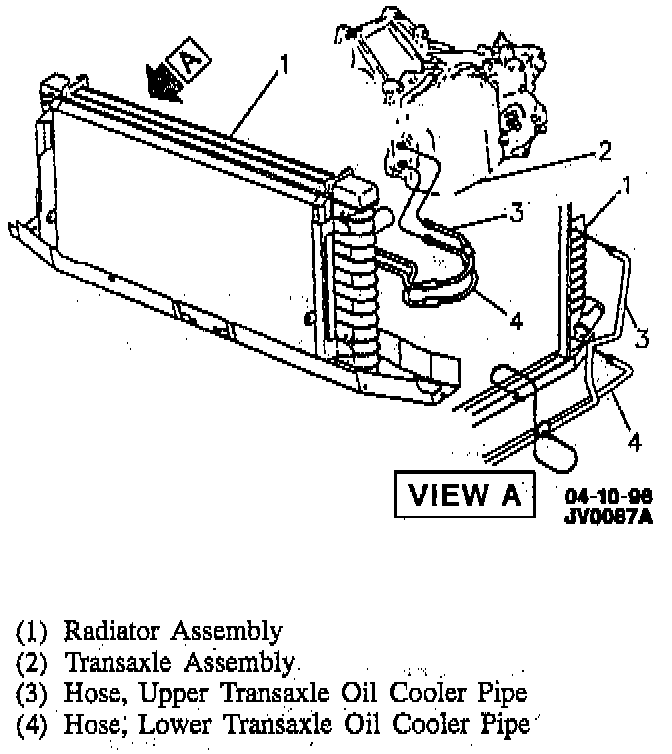

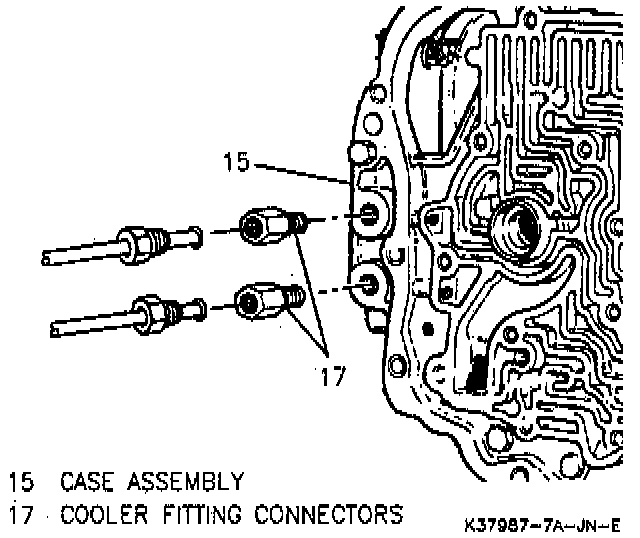

If replacement of transaxle cooler pipes is required, use only double wrapped and brazed steel pipe meeting GM specification 123M or equivalent.
Pipe should be double flared.

NOTICE: Allow sufficient clearance around cooler pipes to prevent damage or wear which may cause oil loss.
