Home
>>
Pontiac
>>
1998
>>
Firefly (CANADA) L4-1.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>
With Air Conditioning
>>
A/C System - Manual
>>
Compressor/Condenser Fan Control
>>

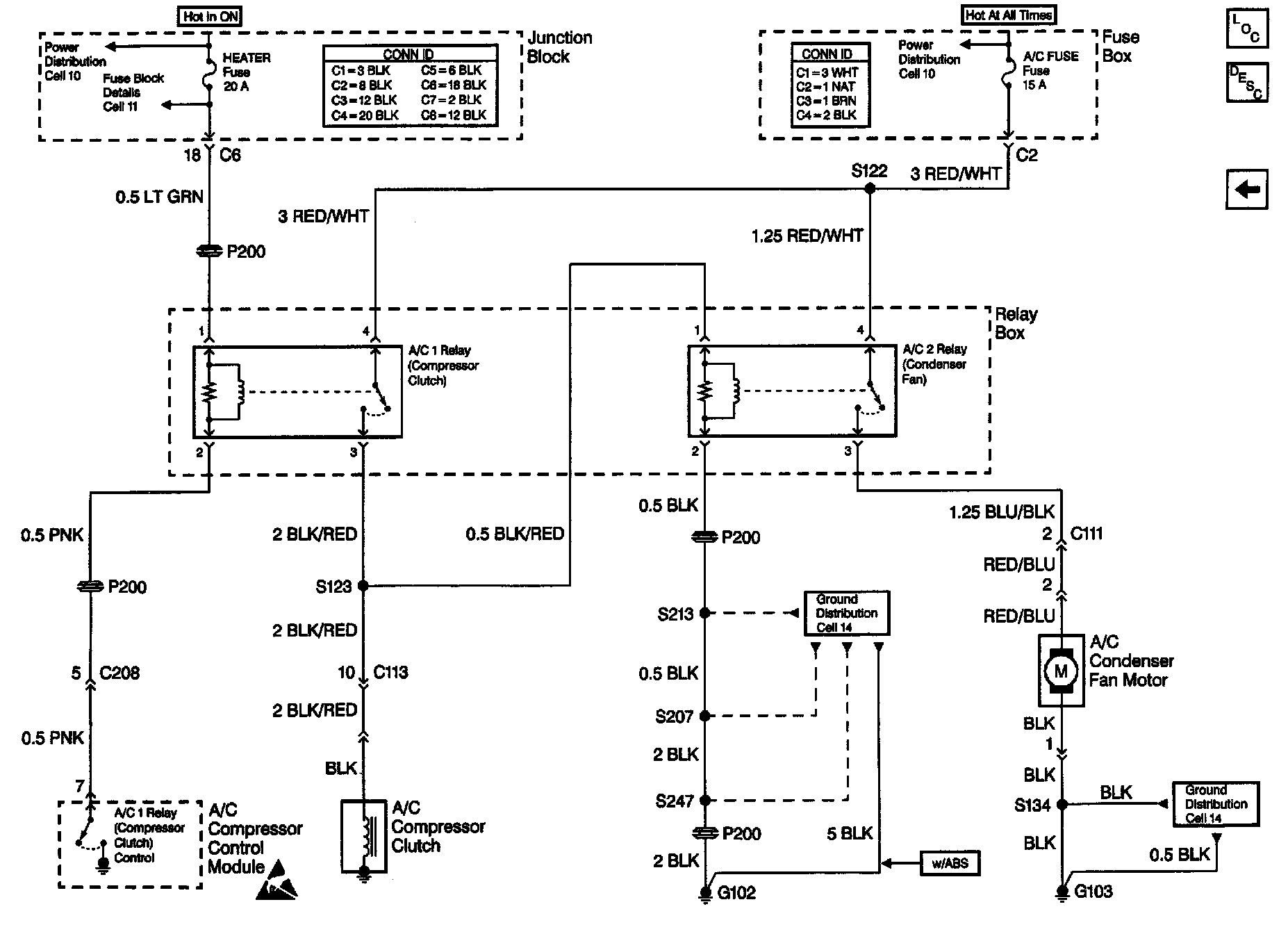

A/C Relay, A/C Condenser
A/C Relay, A/C Condenser
