A/T Range Selector Cable Replacement (at Column Shift Control)

REMOVAL PROCEDURE

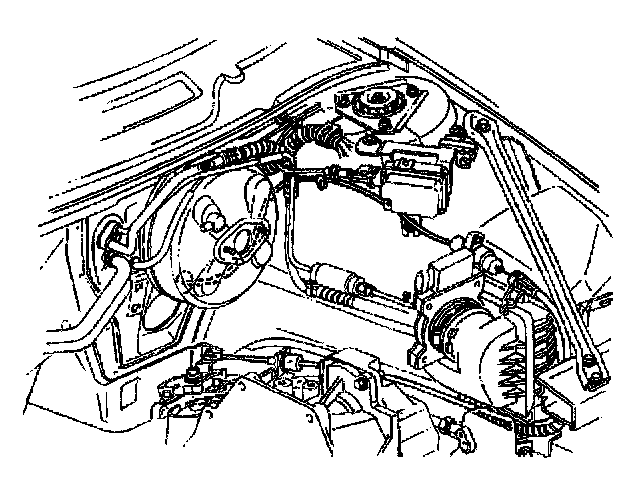

1. Remove the automatic transaxle range selector cable retainer from the stud in the engine compartment.

CAUTION: Refer to Automatic Transaxle Range Selector Cable Caution in Service Precautions.

2. Remove the steering column trim panel.

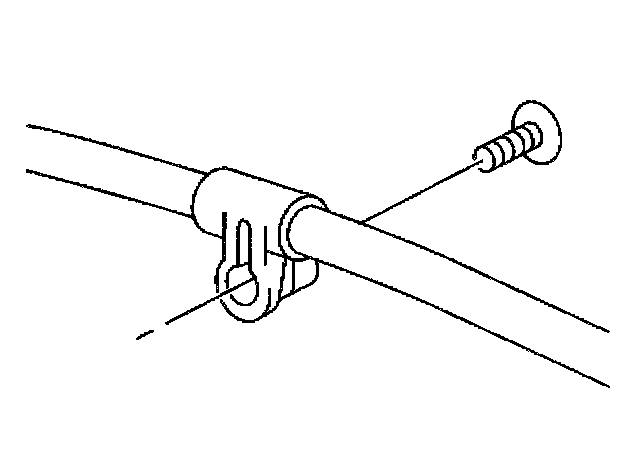

3. Remove the automatic transaxle range selector cable from the shift control lever.

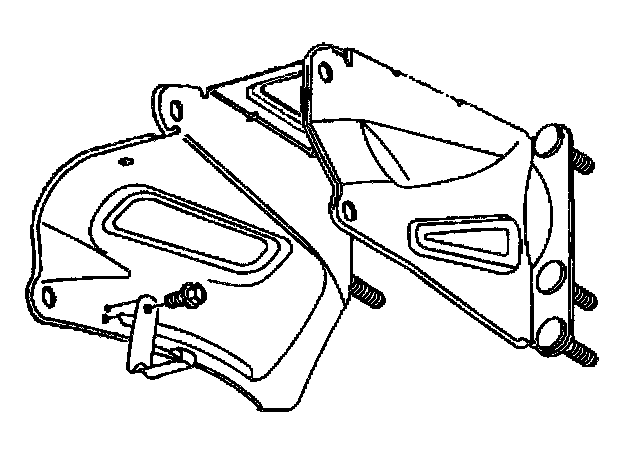

4. Remove the automatic transaxle range selector cable from the steering column bracket.

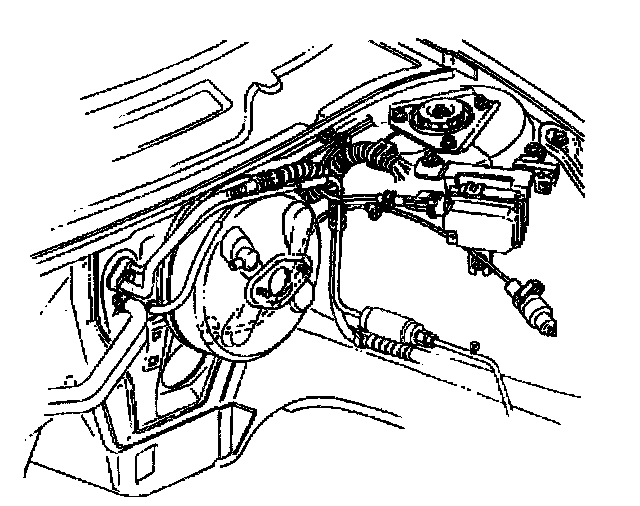

5. Remove the automatic transaxle range selector cable from the PNP switch.





6. Remove the automatic transaxle range selector cable through the hole in the dash.

INSTALLATION PROCEDURE





1. Properly route and position the automatic transaxle range selector cable.

CAUTION: Refer to Automatic Transaxle Range Selector Cable Caution in Service Precautions.

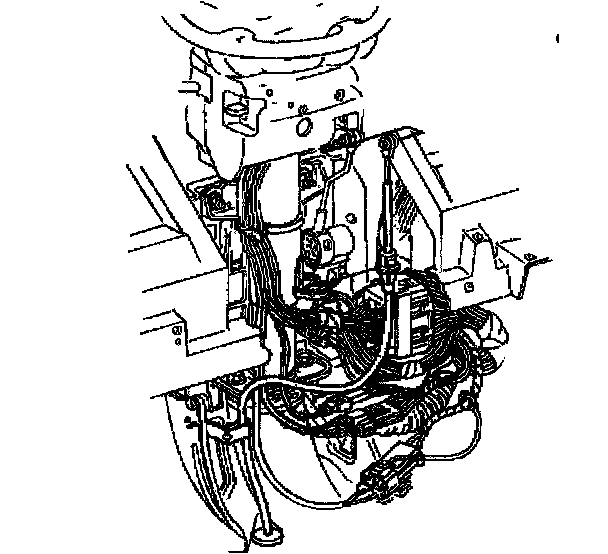

2. Install the automatic transaxle range selector cable to the PNP switch.

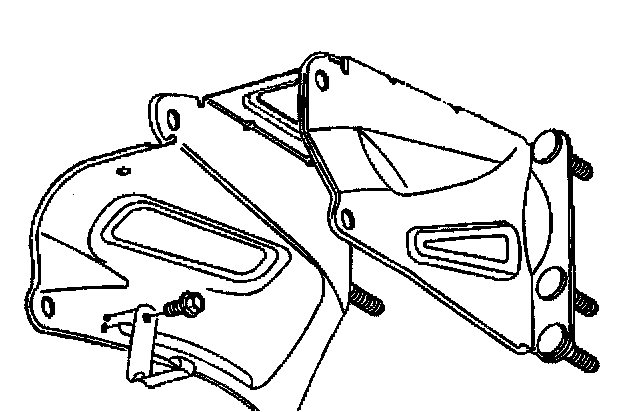

3. Install the automatic transaxle range selector cable to the steering column bracket.

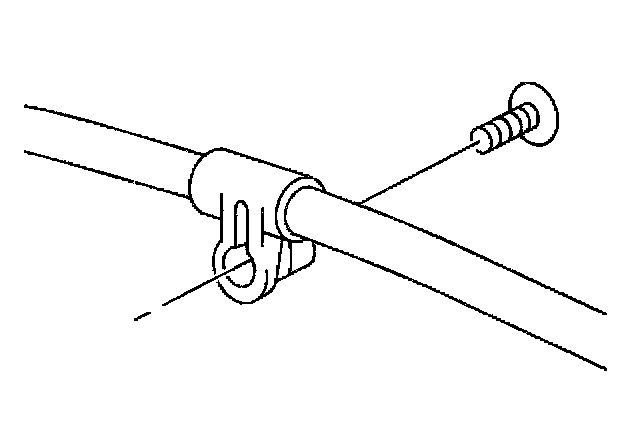

4. Install the automatic transaxle range selector cable to the shift control lever.
5. Install the steering column trim panel.





6. Install the automatic transaxle range selector cable retainer to the stud in the engine compartment.
7. Adjust the transaxle side automatic transaxle range selector cable.
