A/T Selector Cable Replacement (at Console Shift Control)

REMOVAL PROCEDURE

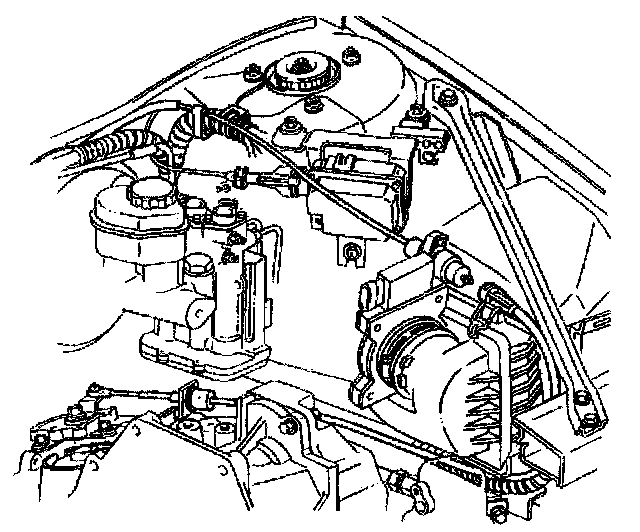

1. Remove the automatic transaxle range selector cable from wiring harness clip(s) or retainer(s) in the engine compartment.

CAUTION: Refer to Automatic Transaxle Range Selector Cable Caution in Service Precautions.

2. Remove the front floor console.
3. Pull the carpet back to expose the automatic transaxle range selector cable.

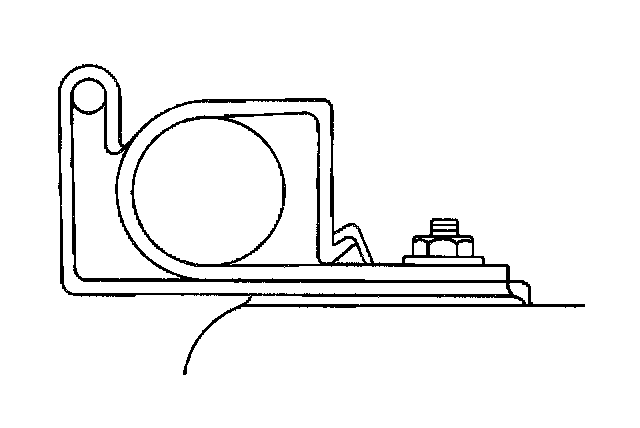

4. Remove the automatic transaxle range selector cable from retaining clip(s) or retainer(s) in the passenger compartment.

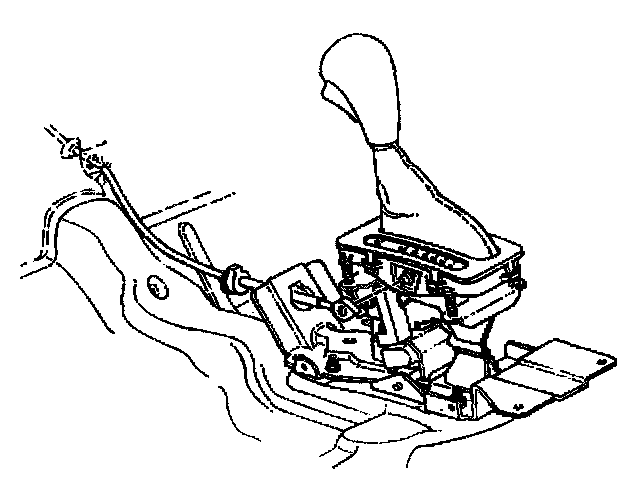

5. Remove the automatic transaxle range selector cable retainer from the console shift control.





6. Remove the automatic transaxle range selector cable from the console shift control.
7. Remove the automatic transaxle range selector cable through the hole in the cowl.
8. Remove the automatic transaxle range selector cable from the PNP switch.

INSTALLATION PROCEDURE





1. Properly route and position the automatic transaxle range selector cable.

CAUTION: Refer to Automatic Transaxle Range Selector Cable Caution in Service Precautions.

2. Install the automatic transaxle range selector cable to the PNP switch.





3. Install the automatic transaxle range selector cable through the console shift control bracket.

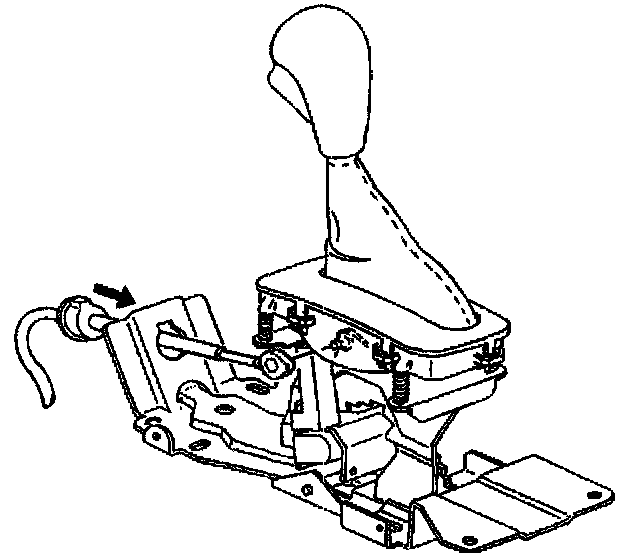

4. Install the automatic transaxle range selector cable to the console shift control.





5. Install the automatic transaxle range selector cable retainer to the console shift control.

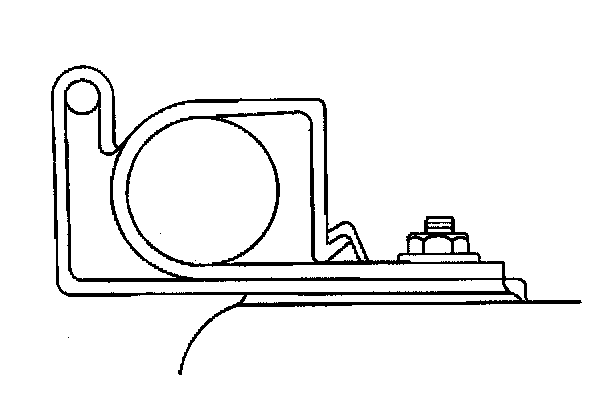

6. Install the automatic transaxle range selector cable to retaining clip(s) or retainer(s) in the passenger compartment.
7. Install the carpet into position.
8. Install the front floor console.





9. Install the automatic transaxle range selector cable to wiring harness clip(s) or retainer(s) in the engine compartment.
10. Adjust the automatic transaxle range selector cable.
