Automatic Transmission Mount Replacement

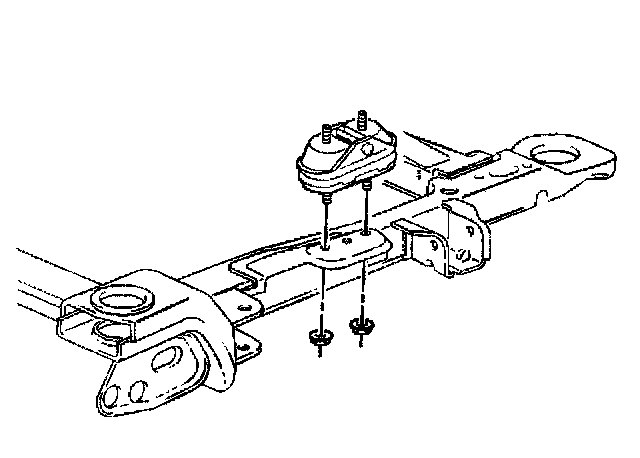

REMOVAL PROCEDURE





1. Remove the transaxle bracket.
2. Remove the transaxle mount lower nuts to the transaxle mount frame bracket.
3. Remove the transaxle mount from the transaxle mount frame bracket.

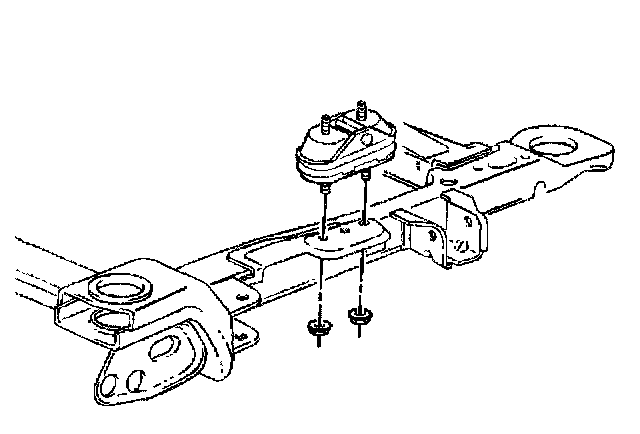

INSTALLATION PROCEDURE





1. Install the transaxle mount to the transaxle mount frame bracket.
2. Install the transaxle mount lower nuts to the transaxle mount frame bracket.
^ Tighten the transaxle mount lower nuts to 47 Nm (35 ft. lbs.).

NOTICE: Refer to Fastener Notice in Service Precautions.

3. Install the transaxle bracket to the transaxle.
