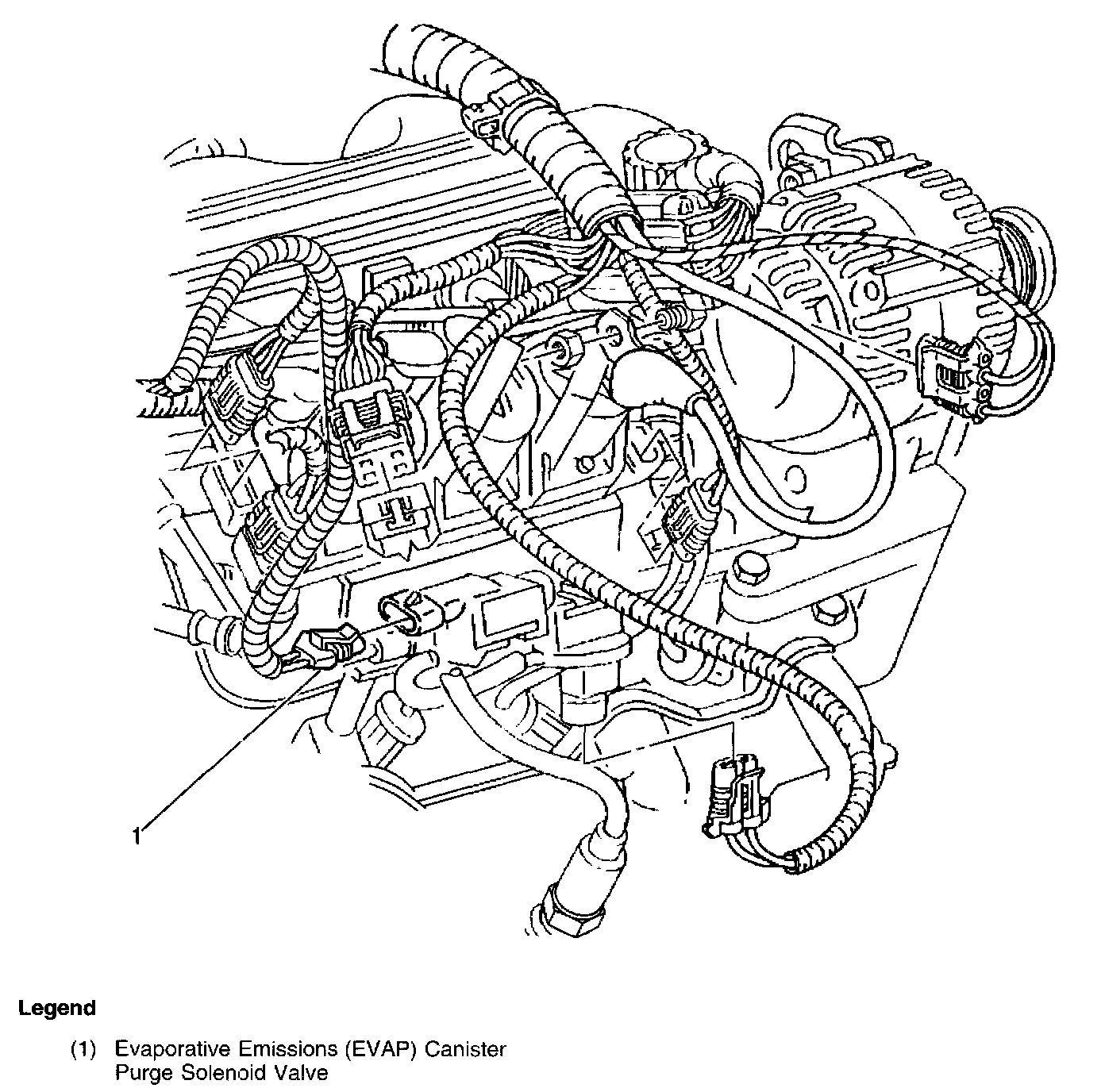

Canister Purge Control Valve: Locations

Locations View:

Top rear of the engine, on the intake manifold, behind the ignition control module
Top front of the engine, on the intake manifold near the fuel injectors

(LG8)
Refer to RPO Code List Application and ID
