Courtesy Lamp Bulb: Service and Repair

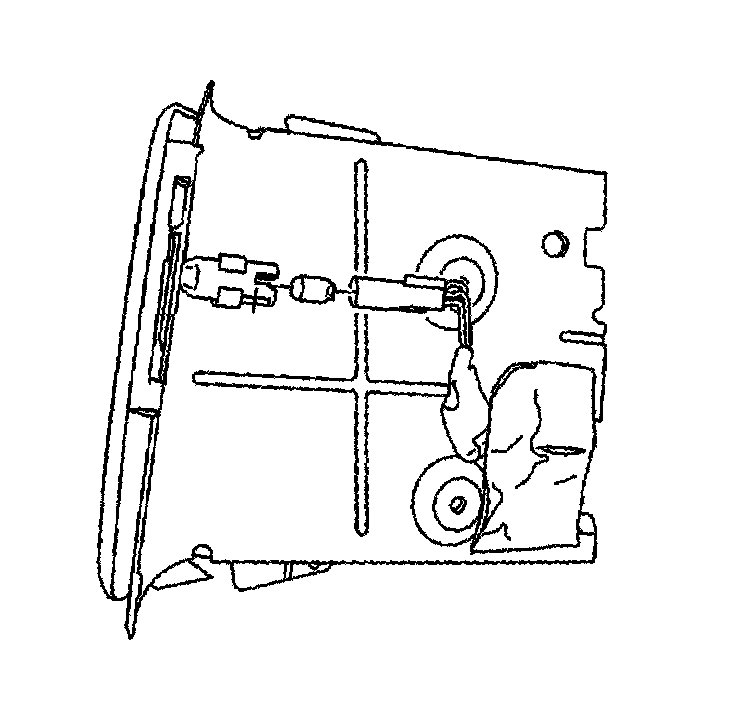

REMOVAL PROCEDURE
1. Remove the ashtray from the instrument panel.
2. Remove the ashtray lamp socket from the housing, by rotating counterclockwise.
3. Remove the bulb from the ashtray lamp socket.

INSTALLATION PROCEDURE
1. Install the bulb to the ashtray lamp socket.
2. Install the ashtray lamp socket to the lamp housing, then rotate clockwise to secure.
3. Install the ashtray to the instrument panel.
