Radiator Hose Replacement-Outlet

Radiator Hose Replacement-Outlet (3.8L)

^ Tools Required
- J38185 Hose Clamp Pliers

Removal Procedure
1. Drain the cooling system.

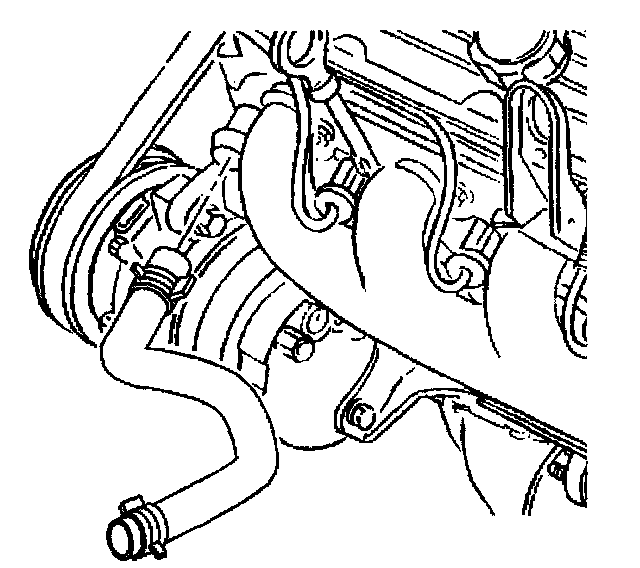

2. Use the J38185 in order to reposition the hose clamp from the water pump housing.





3. Remove the radiator outlet hose from the water pump housing.
4. Raise and support the vehicle. Refer to Vehicle Lifting.
5. Remove the lower air deflector.





6. Use the J38185 in order to reposition the hose clamp from the radiator.
7. Remove the radiator outlet hose from the radiator and the vehicle.

Installation Procedure





1. Align the marks on the hose and Install the radiator outlet hose to the radiator.
2. Use the J38185 in order to reposition and install the hose clamp to the radiator.
3. Install the lower air deflector.
4. Lower the vehicle

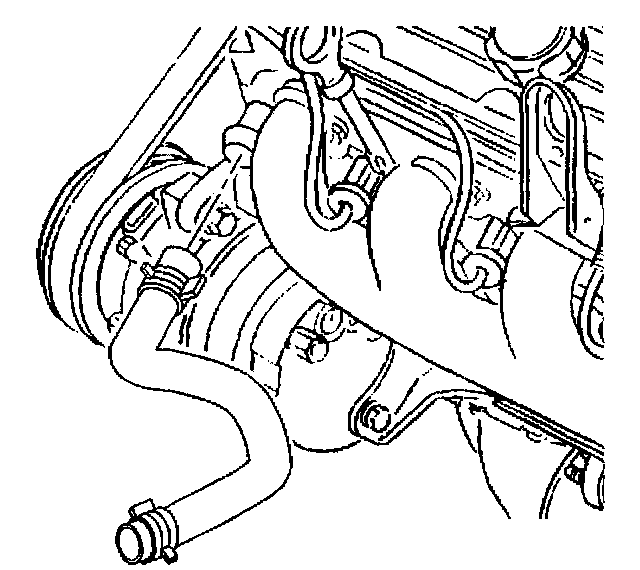

5. Align the marks on the hose and install the radiator outlet hose to the water pump housing.





6. Use the J38185 in order to reposition and install the hose clamp to the water pump housing.
7. Fill the cooling system.
8. Inspect for leaks.
