Left Front

REMOVAL PROCEDURE




1. Remove the front buckle seat.
2. Disconnect the seat belt buckle electrical connector.

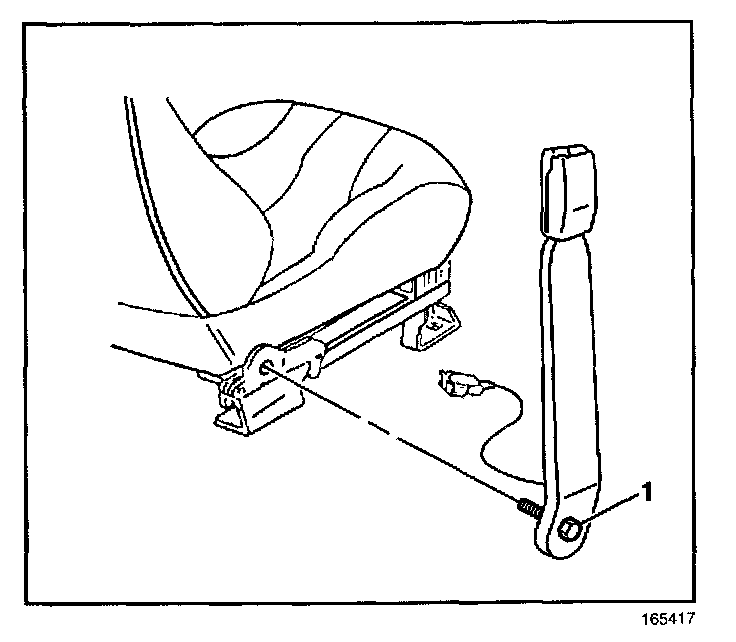

3. Remove the bolt from the left front seat belt buckle (1).
4. Remove the left front seat belt buckle from the front bucket seat.

INSTALLATION PROCEDURE




1. Position the left front seat belt buckle to the front bucket seat.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the bolt (1) to the front left seat belt buckle.

Tighten
Tighten the front left seat belt buckle bolt to 47 N.m (35 lb ft).

3. Connect the seat belt buckle electrical connector.
4. Install the front buckle seat.
