Home >> Pontiac >> 2002 >> Bonneville V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Heating and Air Conditioning >> Refrigerant Control Solenoid Valve Relay >> Locations

Refrigerant Control Solenoid Valve Relay: Locations

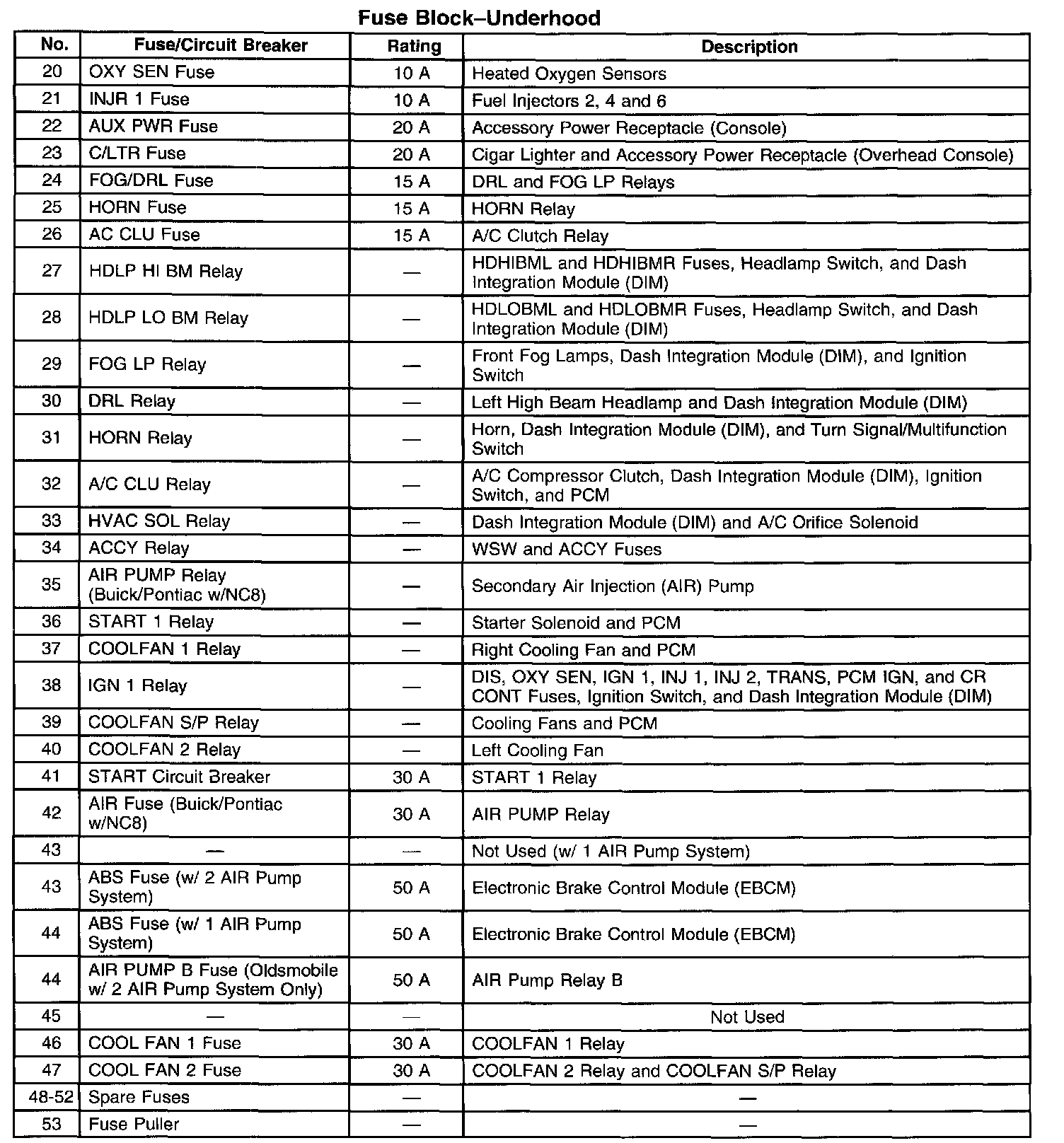

Fuse Block - Underhood Part 1:

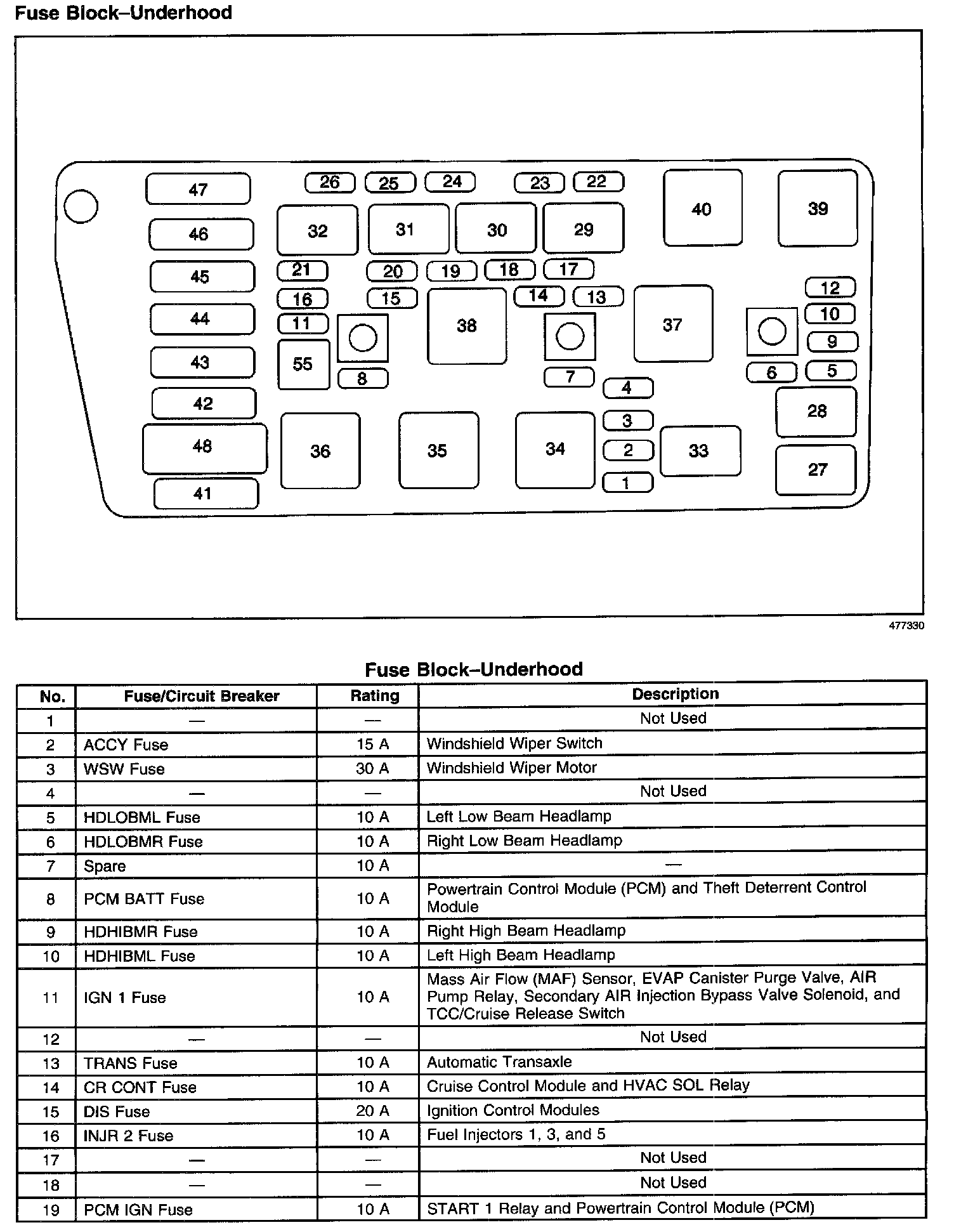

Fuse Block - Underhood Part 2:
