Armrest Bracket Replacement

Armrest Bracket Replacement

Removal Procedure





1. Remove the rear door trim panel. Refer to Trim Panel Replacement - Side Rear Door Service and Repair

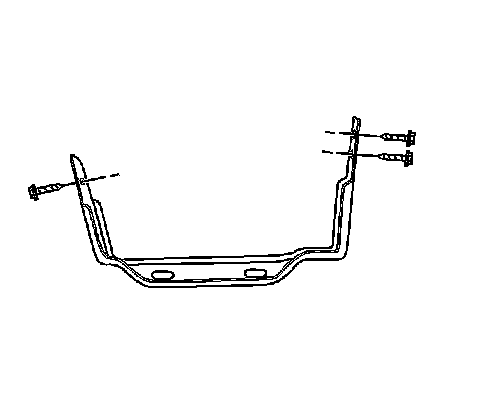

2. Remove the screws from the armrest bracket.
3. Remove the armrest bracket from the door inner panel.



Installation Procedure





1. Position the armrest bracket to the door inner panel.

Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the screws to the armrest bracket.

Tighten the screws to 3 N.m (27 lb in).

3. Install the rear door trim panel. Refer to Trim Panel Replacement - Side Rear Door Service and Repair
