Installing Drive Gears

INSTALLING DRIVE GEAR OF UPPER BALANCE SHAFT

NOTE: Drive shafts are identical parts.

1. Woodruff key groove of balance shaft faces up.

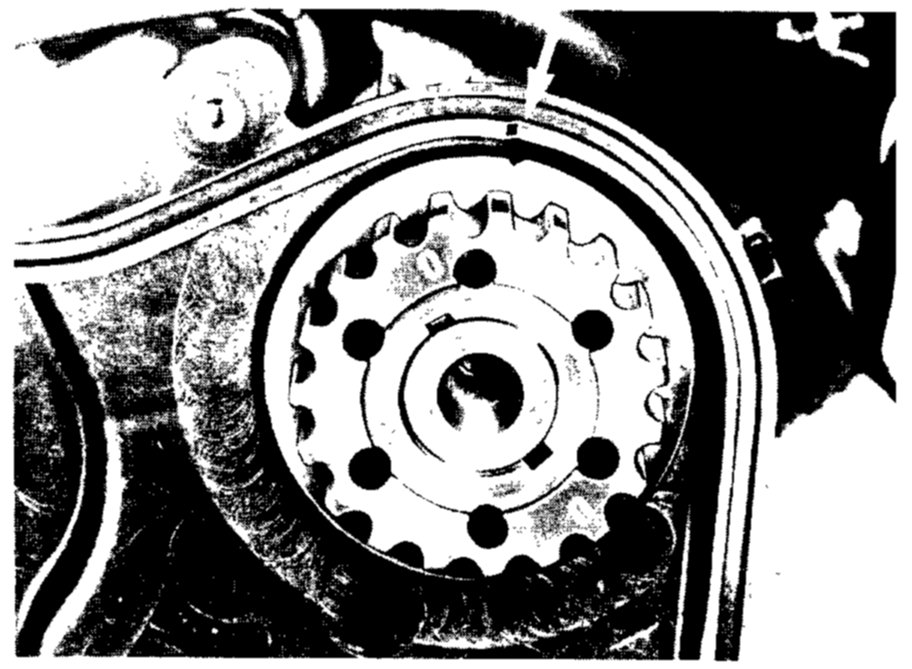

Drive Gear:

2. Push drive gear with groove code "0" on woodruff key.

INSTALLING DRIVE GEAR OF LOWER BALANCE SHAFT
1. Woodruff key groove of balance shaft faces up.

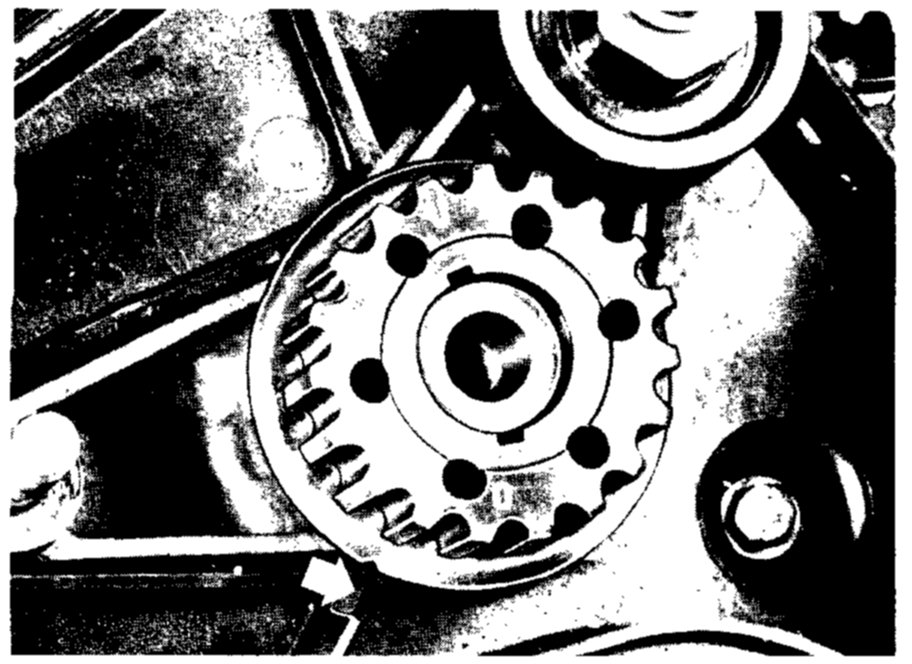

Lower Drive Gear:

2. Push drive gear with groove code "U" on woodruff key.

MOUNTING DRIVE GEAR
1. Install bolt, washer and collar.

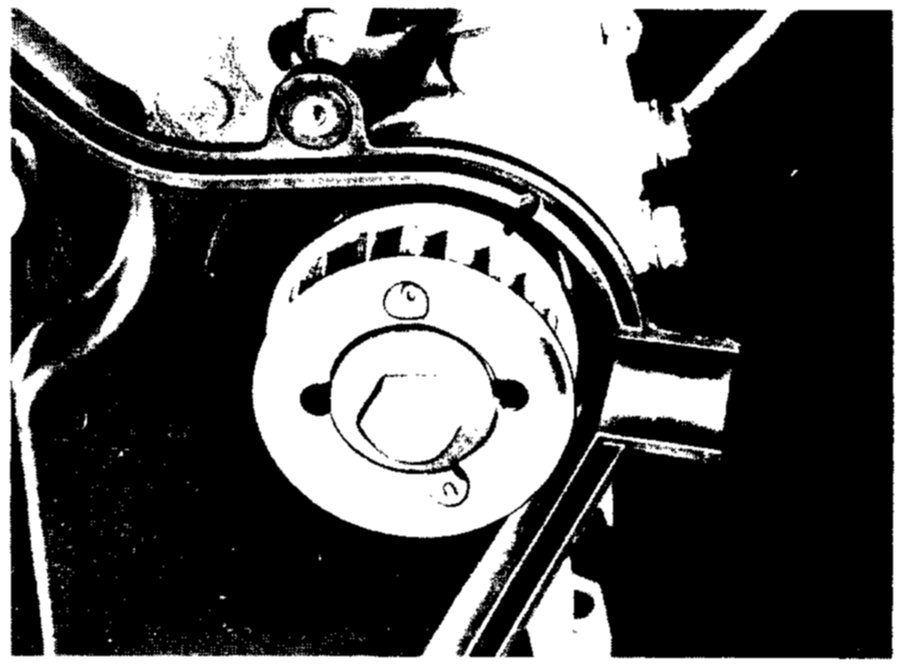

Drive Gear:

2. Align collar that codes "0" and "U" can be seen in large bores.

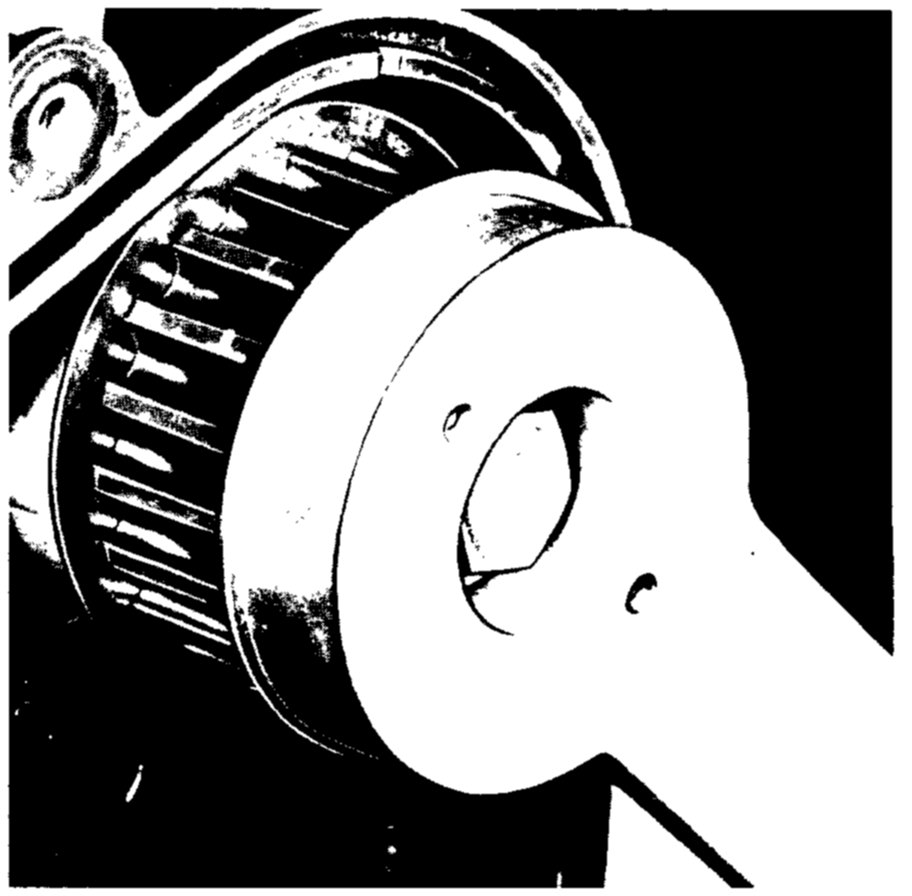

Special Tool 9200:

3. Tighten bolt while holding with Special Tool 9200.
