Fuel Tank: Locations

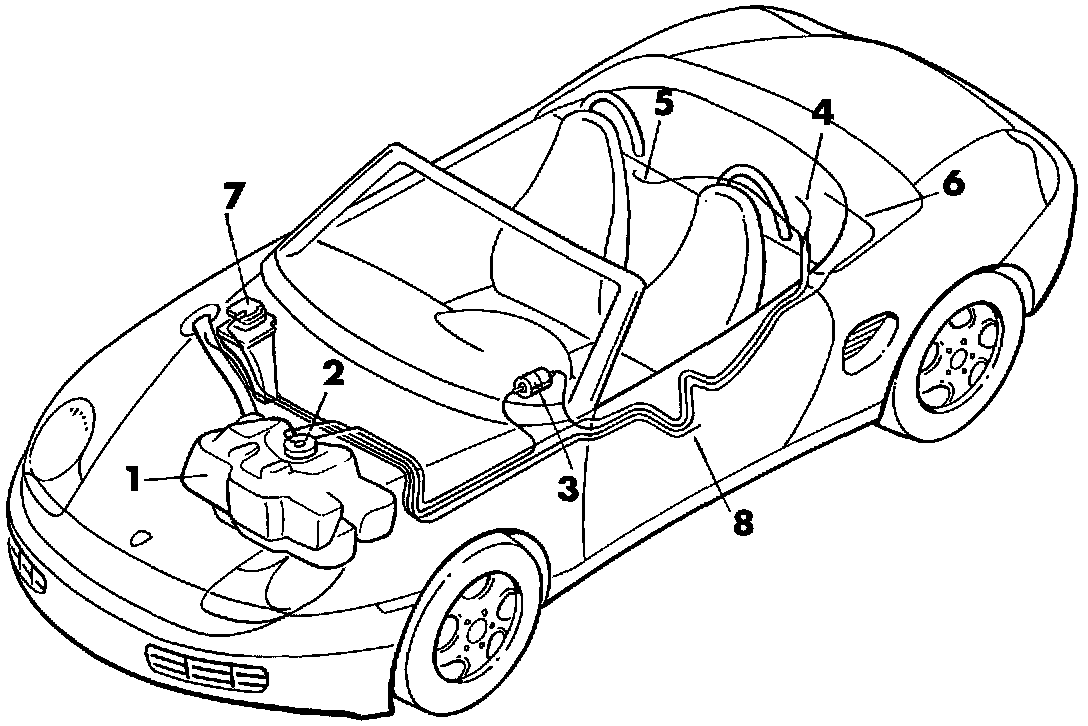

Image Legend:
1 - Fuel tank.
2 - Ascending pipe with fuel pump and sensor for fuel level indicator.
3 - Fuel filter.
4 - Fuel return.
5 - Fuel supply.
6 - To carbon canister.
7 - Carbon canister.
8 - Scavenging air pipe.

The fuel tank is located in the front of the vehicle.
