Opening / Closing Engine Compartment Lid

Luggage Compartment Lid and Engine Compartment Lid:




Unlocking:

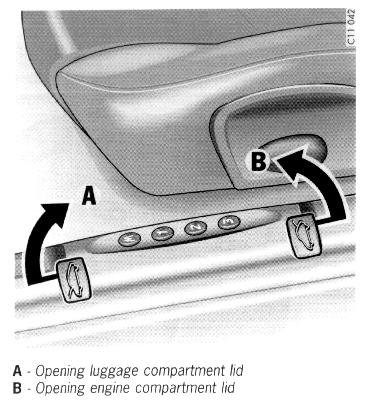

• With the driver's door open, operate the appropriate pull-button next to the driver's seat.

The luggage compartment or engine compartment is illuminated when the respective lid is open.

The luggage compartment lid can also be opened with button 2 on the radio remote control.

Important Note:

If the vehicle battery is discharged, the lids can be opened only by connecting an external electrical power source.

Please observe the description inside the fuse box cover.

Warning light:

The warning light in the instrument panel comes on if the lids are not completely closed.

- Fully close the lid.

Opening luggage compartment lid:




Caution!

Risk of damage to luggage compartment lid or windshield wipers.

• Make sure that the windshield wipers are not pulled out forwards when opening the luggage compartment lid.

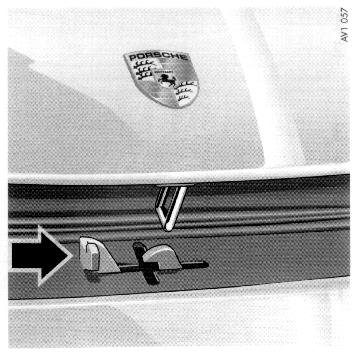

• Raise lid slightly and unlatch the safety catch with the lever (arrow}.

Closing luggage compartment lid and engine compartment lid:

• Lower lid and let it fall into the lock. If necessary, push the lid with the palm of your hand in the area of the lock.

• Check that the lid has correctly engaged in the lock.

Warning!

Risk of loss of control or an accident, resulting in serious personal injury.

• Should you notice at any time while driving that one of the lids is not secured properly, please stop immediately in a suitable place and close it.

The front lid may fly up impairing vision.
