Front Door Weatherstrip: Service and Repair

Removing And Installing Outer Rubber Seal For Front Door







Removing the outer rubber seal for front door

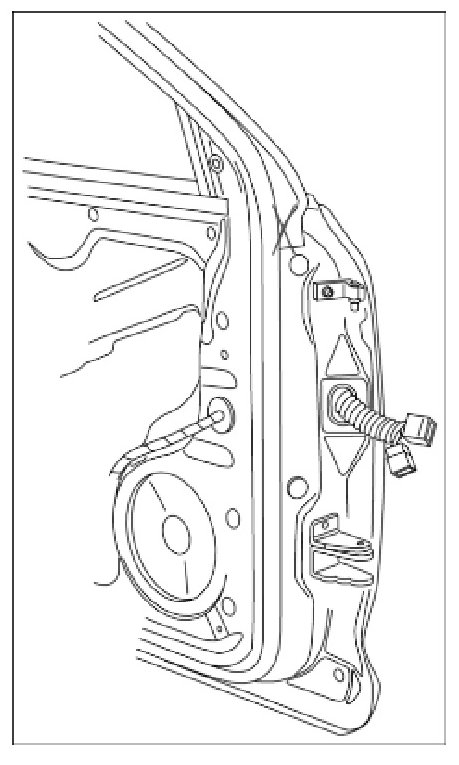

1. Remove front door.







2. Removing cover of front assembly opening

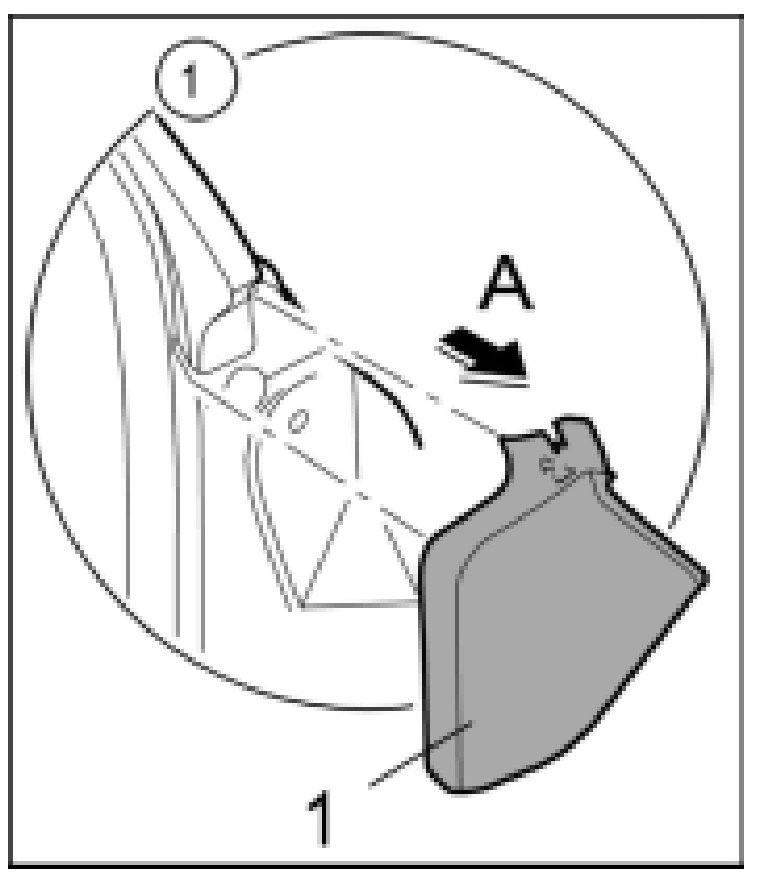

2.1. Unclip cover of front assembly opening -1- and remove it (-arrow A-).












3. Remove outer rubber seal.

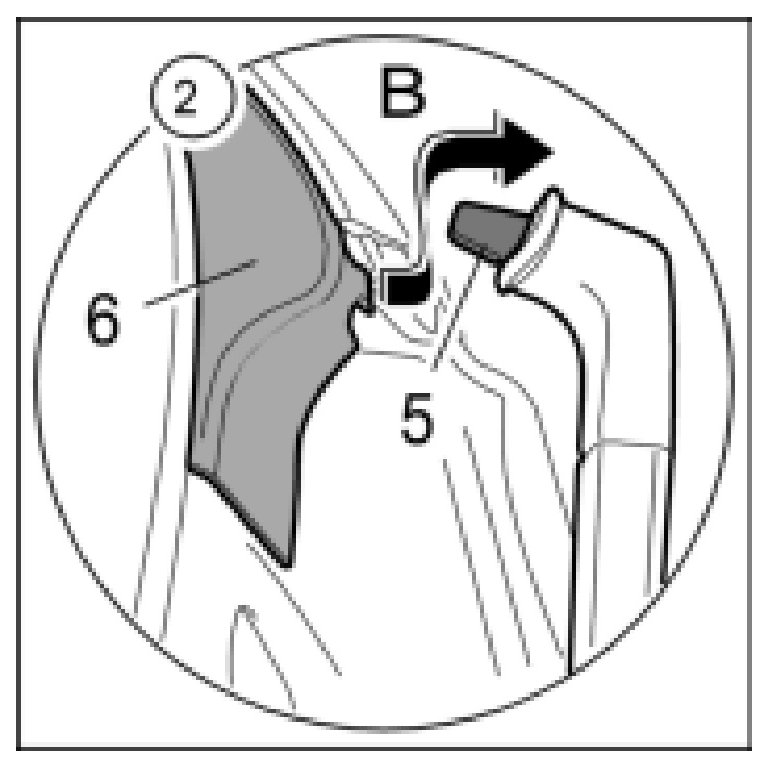

3.1. Pull out the seal end piece at the top -5- behind the door unit carrier -6- (-arrow B-).

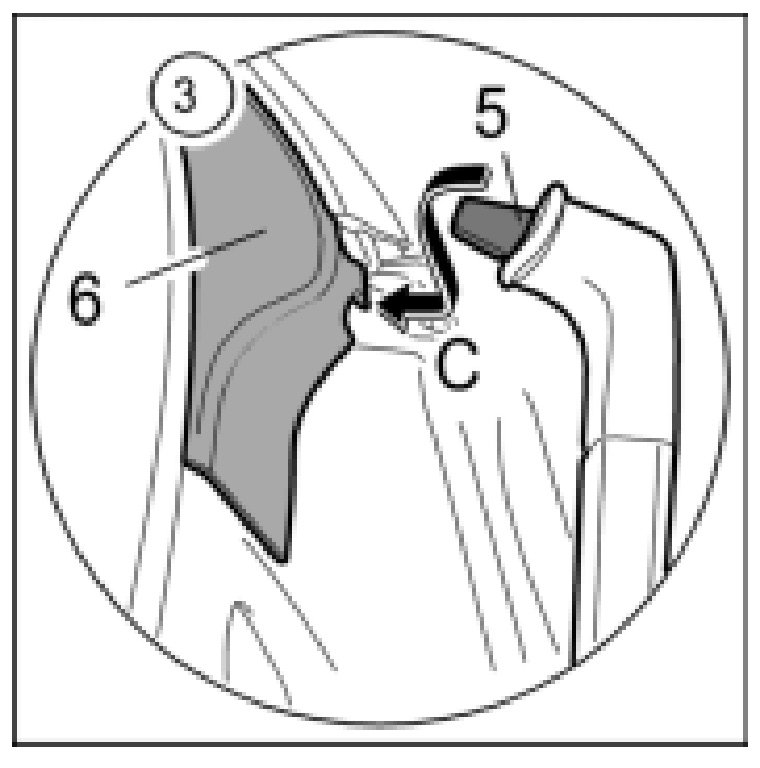

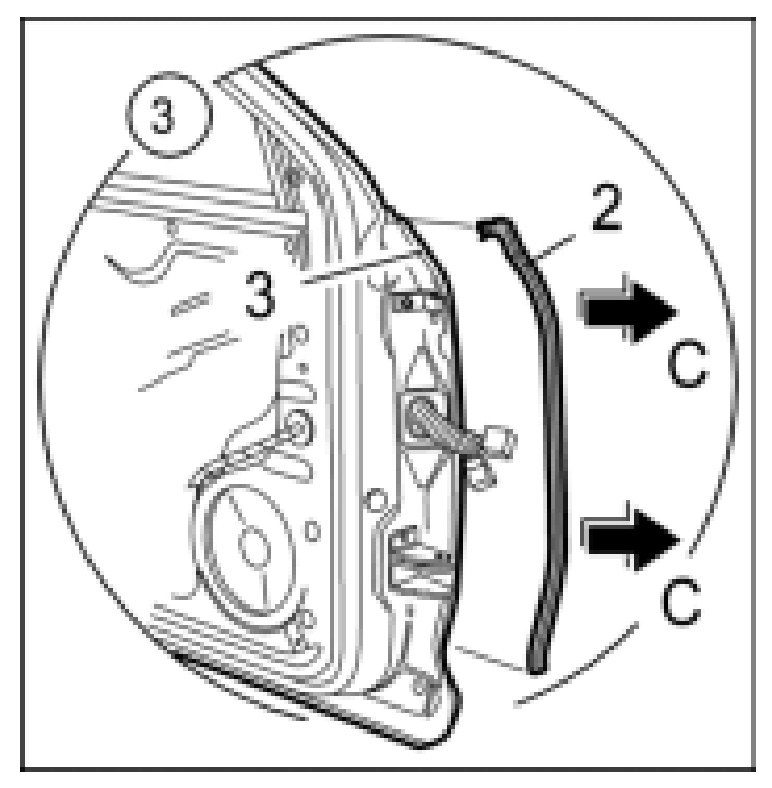

3.2. Remove rubber seal -2-, starting at top of door flange -3- (-arrow C-).

Installing the outer rubber seal for front door






















1. Install outer rubber seal.

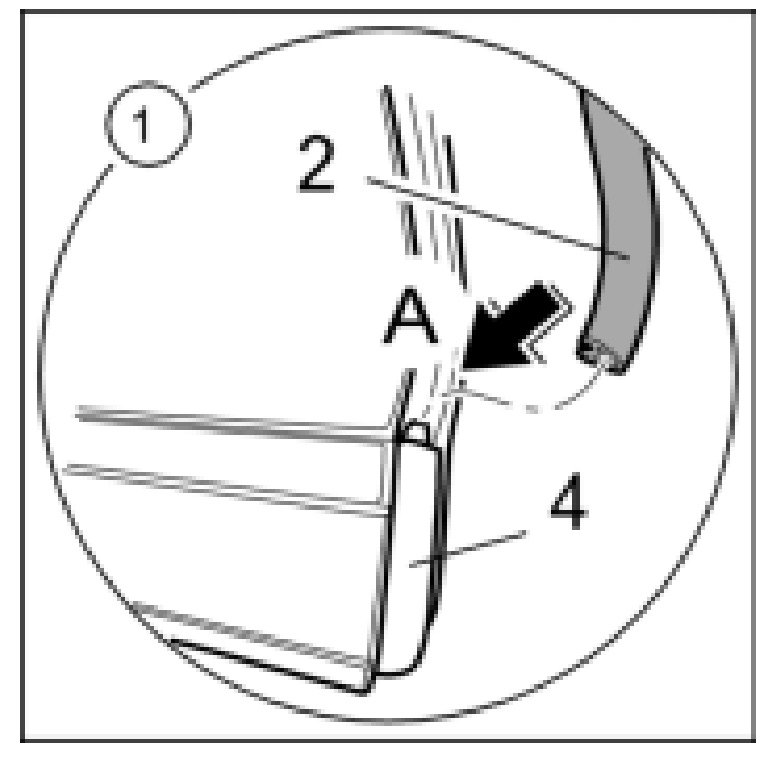

1.1. Insert rubber seal -2- into the seal of the door panel -4- (-arrow A-) and fit it to the door flange -3-, starting at the bottom (-arrow B-).
1.2. Insert the seal end piece at the top -5- behind the door unit carrier -6- (-arrow C-).

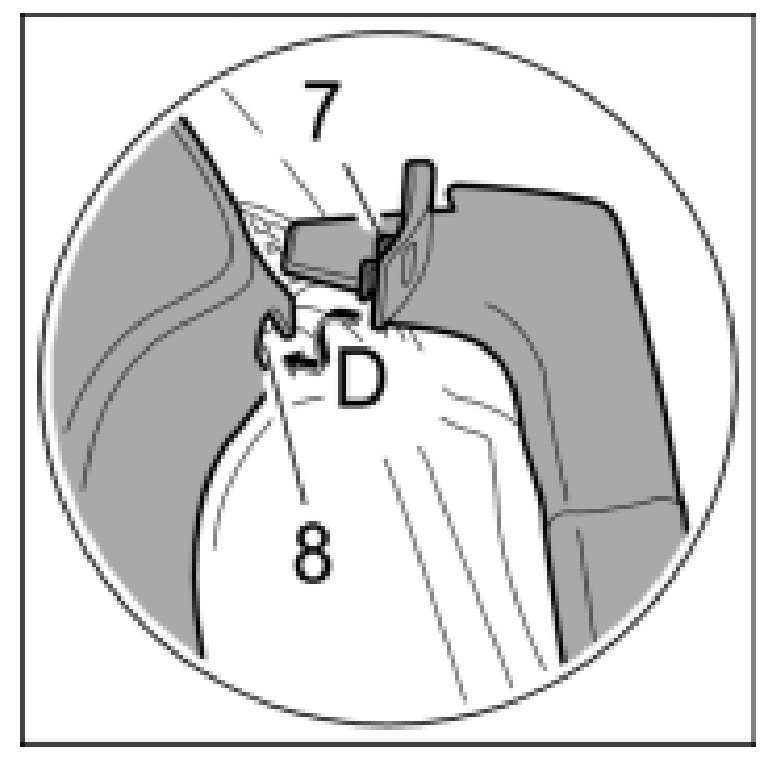

1.3. Press retaining lips of rubber seal -7- into the opening -8- on door unit carrier (-arrow D-).







2. Clip in cover of front assembly opening.

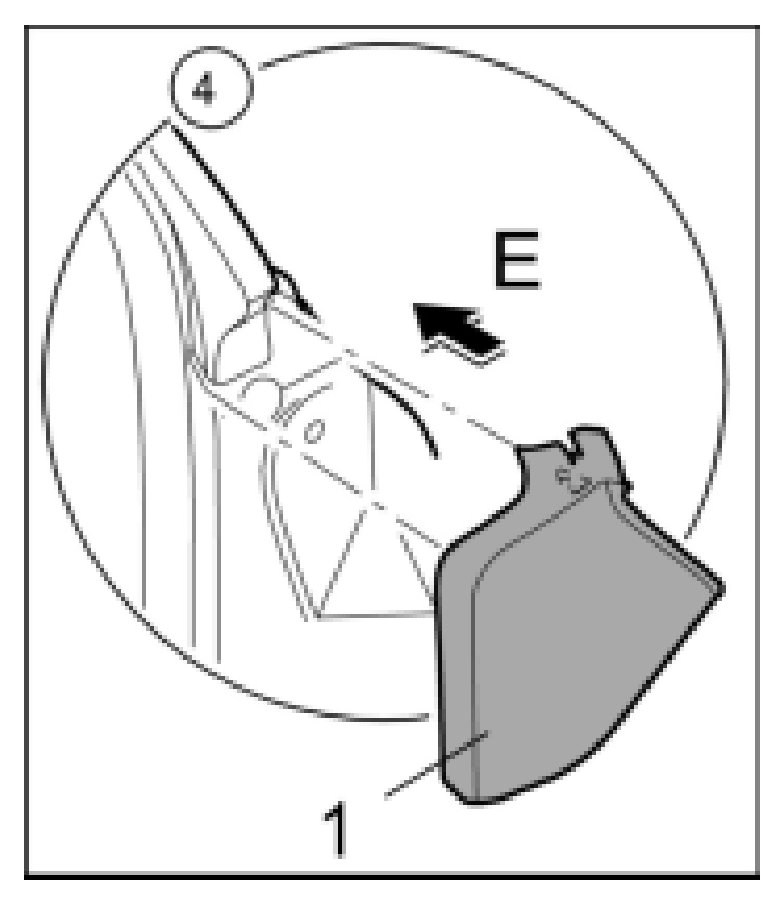

2.1. Clip in cover of front assembly opening -1- (-arrow E-).

3. Install front door.
