Auxiliary Air Conditioning System

Removing And Installing Vents

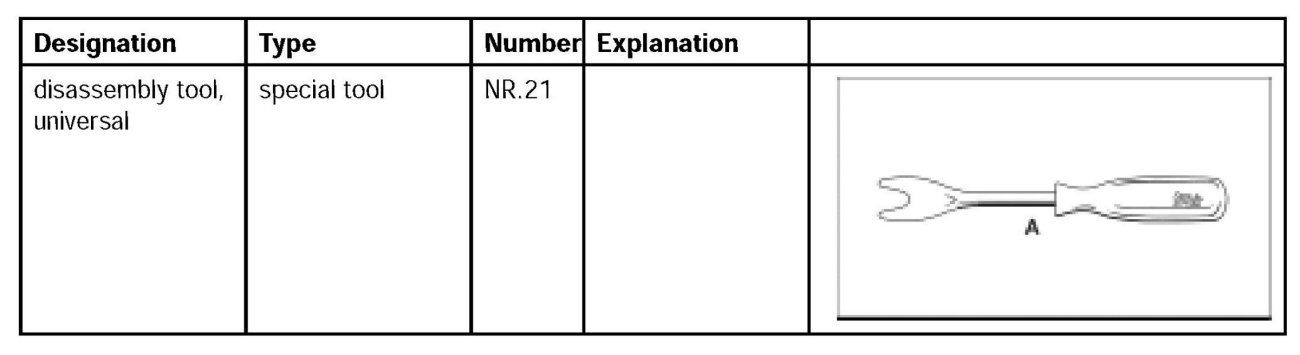

Tools







Removing vent

Removing B-pillar vent

Remove vent.

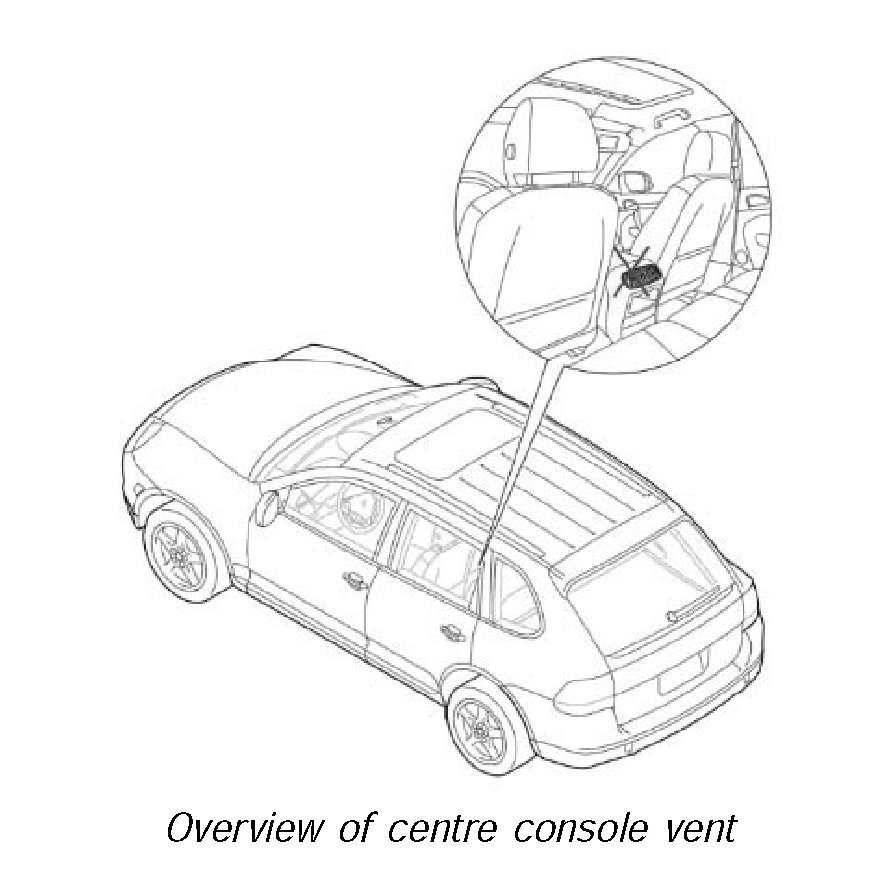

Removing center console vent

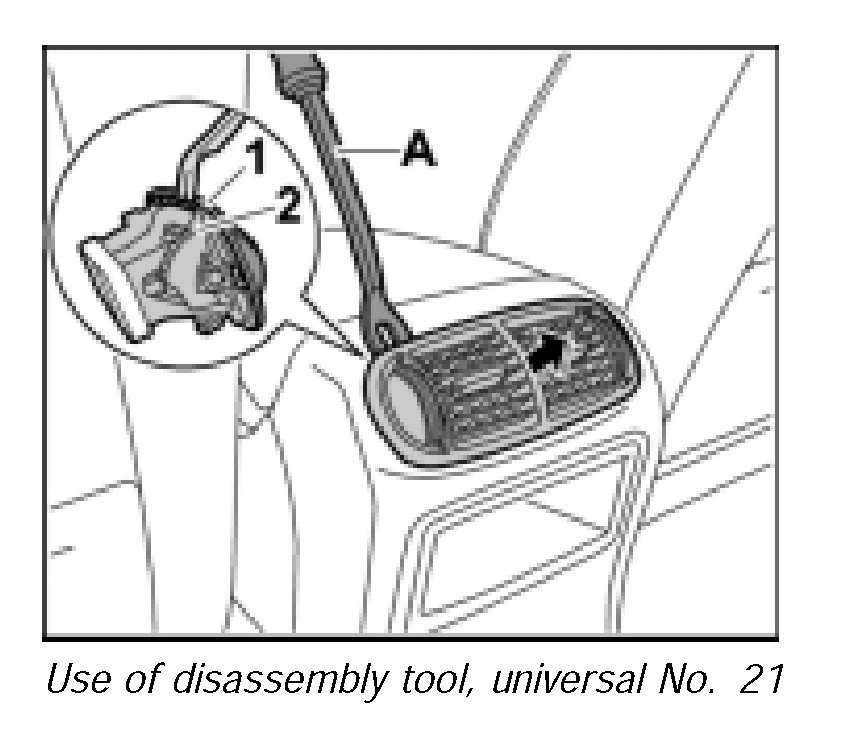

NOTE: Slide in the disassembly tool, universal NR.21 so that, when levering out, it rests on the vent -2- and not on the cover -1-.

Lever out the vent all the way around with the disassembly tool, universal NR.21 and remove it.

Installing vent

Installing B-pillar vent

Install vent.

Installing centre console vent

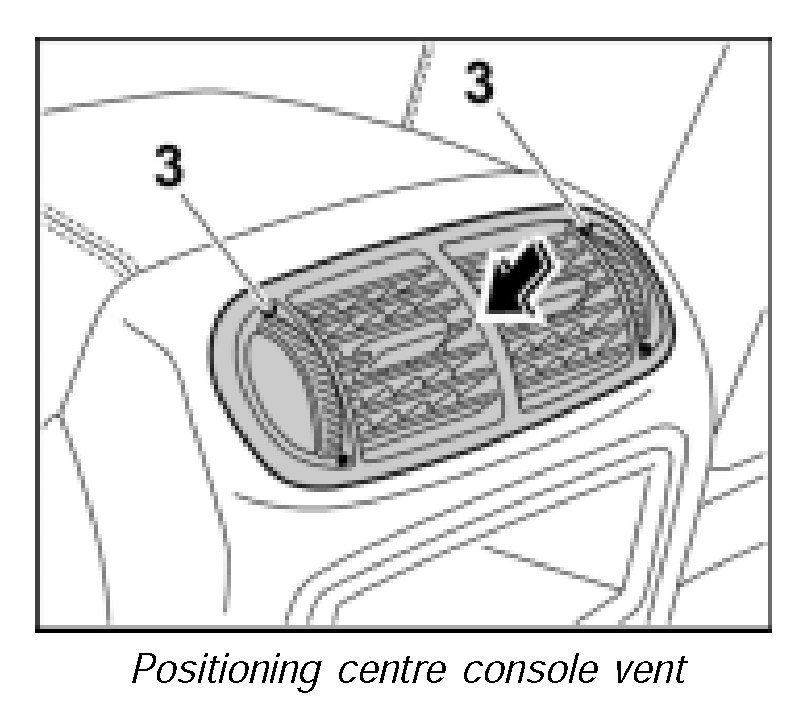

Centre the vent with the ring markings -3- pointing upwards and press it in -Arrow- until the locking tabs can be felt to engage.
