Removing and Installing Control Unit For Garage Door Opener

967819 Removing And Installing Control Unit For Garage Door Opener

Removing control unit for garage door opener

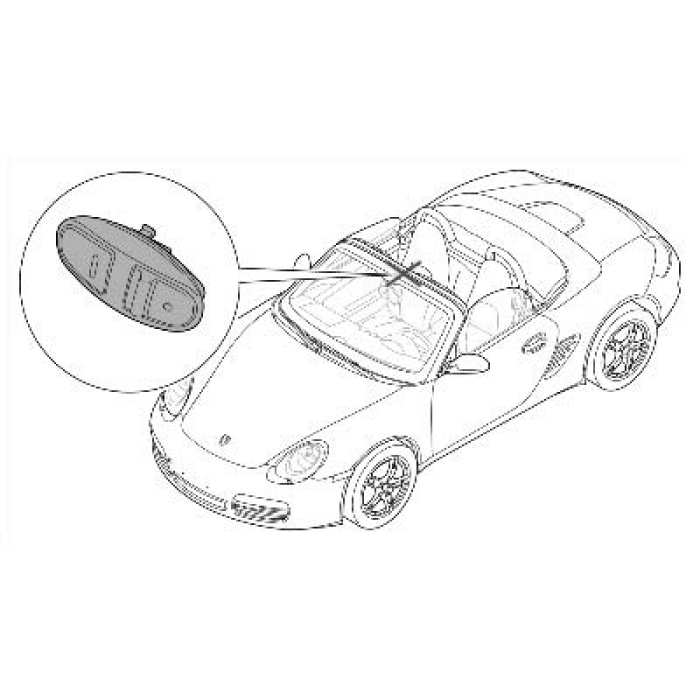

Installation Position For Garage Door Opener:

1. Lever the control units -1- out of the front lock with a small screwdriver at the openings provided -2- -Arrows a-.
2. Pull control units -1- down and out of the assembly openings of the front lock -2- -Arrows B-.
3. Pull off connector -1- for control units -2- -arrows-.

Installing control unit for garage door opener
1. Push on connector -1- for control units -2- -Arrows A-.
2. Insert control units -2- with electric connecting lines into the assembly openings of the front lock -3- in an upwards direction -Arrows B-.
3. Press in control units -1- on front lock -2- until latches are felt to engage.
