Removing and Installing Side-Section Trim

663419 Removing And Installing Side-section Trim

Preliminary work
Remove rear wheel.

Removing side-section trim

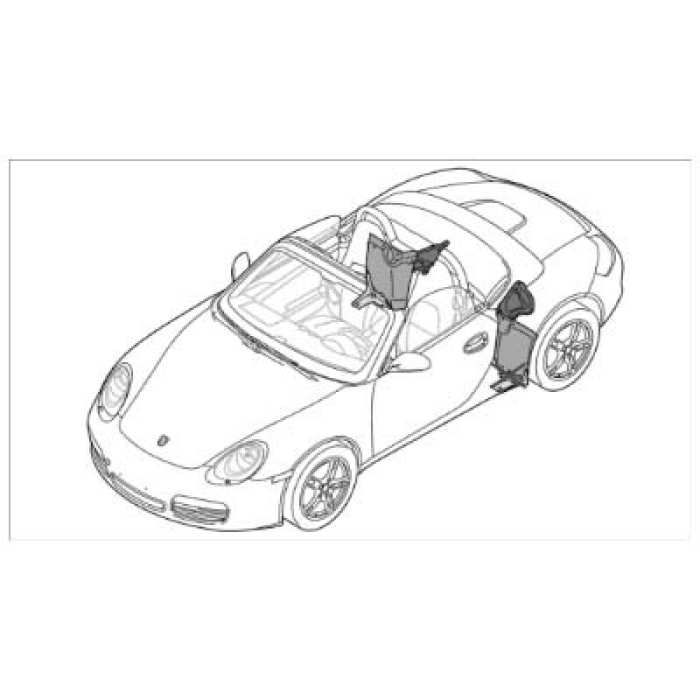

Installation Location For Side Trim Panel:

1. Unscrew fastening screws -1- and remove side-section trim -2-.

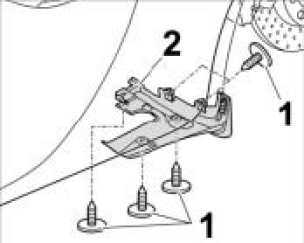

Removing Side Section Trim:

Installing side-section trim

Installation Location For Side Trim Panel:

1. Check speed nuts -3- for deformation; replace speed nuts -3- if necessary.

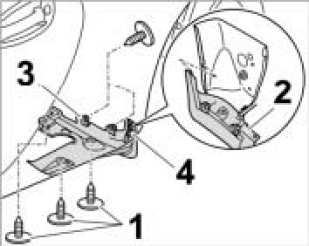

Installing Side-Section Trim:

2. Insert side-section trim -2- and push retaining clip -4- into side panel.
3. Screw in fastening screws -1- and tighten to tightening torque 1.5 ftlb.

Subsequent work
Install rear wheel.
